| Property | Parameter | Description |
|---|---|---|

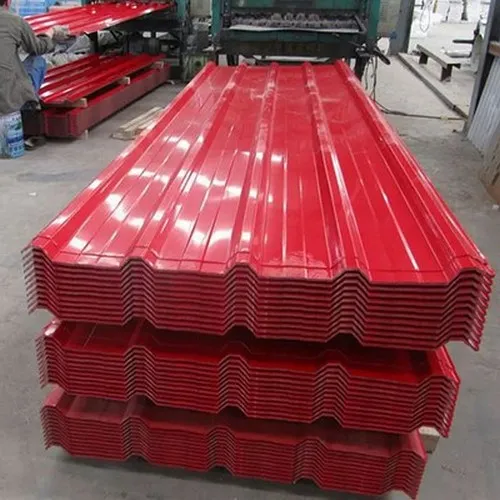

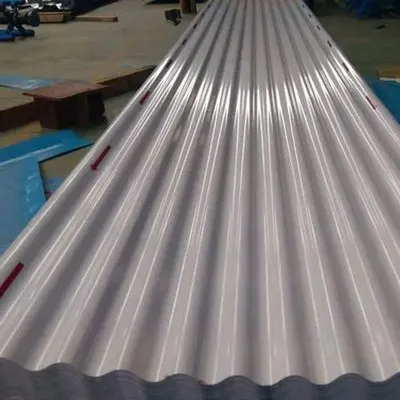

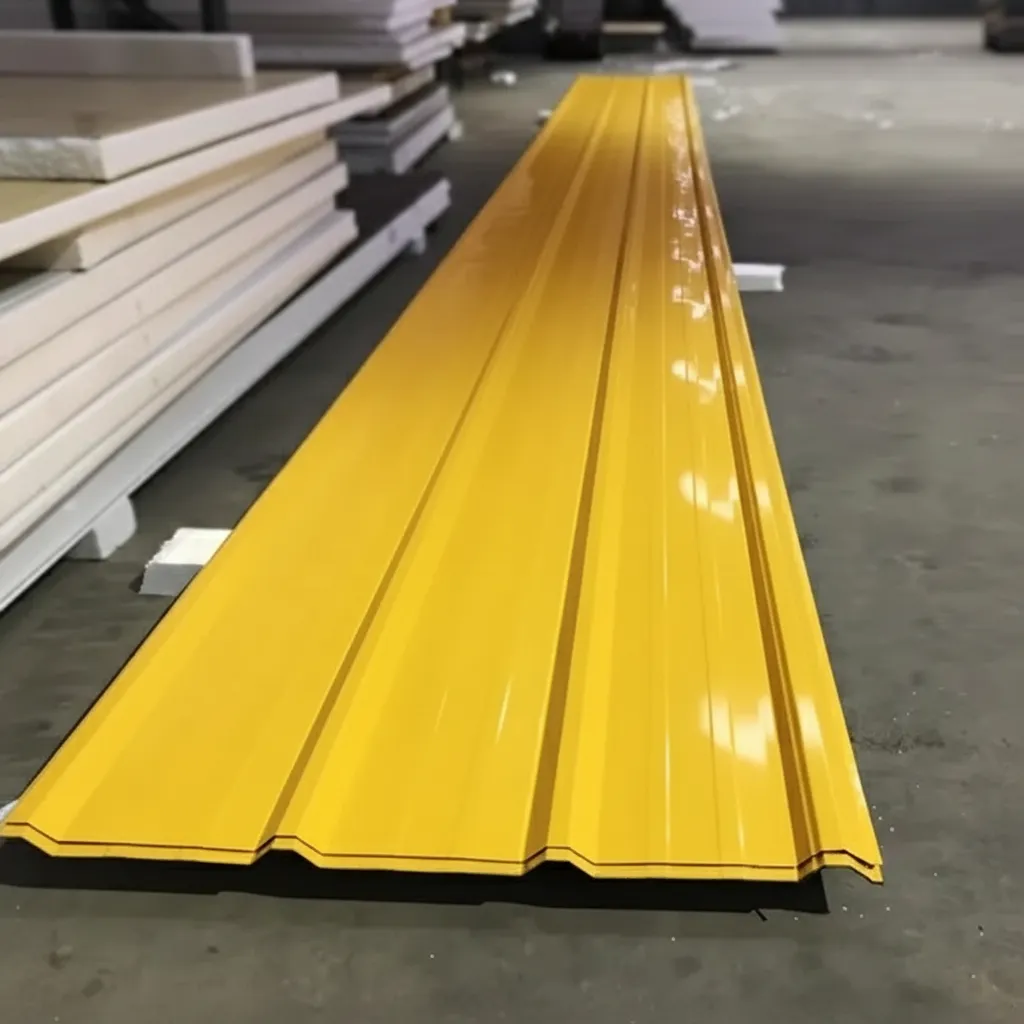

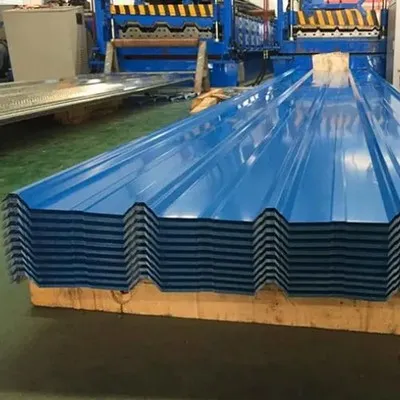

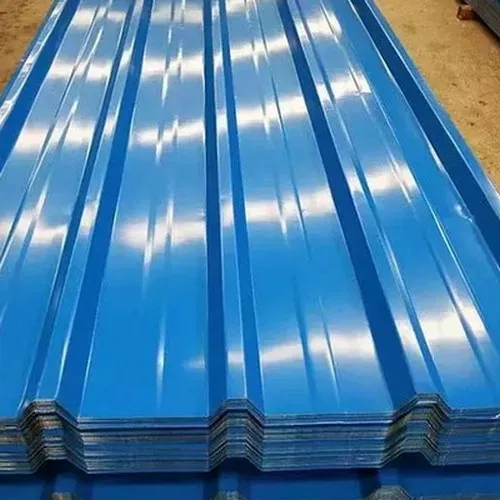

| Product Name | Low Maintenance Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet with durable color coating for long service life |
| Material Grade | SGCC, DX51D, S280GD, HDP280 | Equivalent to JIS G3302 SGCC, EN 10346 DX51D+Z, ASTM A653 CS Type B |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | Meets international pre-painted steel coil and sheet standards |
| Chemical Composition (Base) | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Low-carbon steel substrate ensuring formability and coating adhesion |
| Coating Type | PVDF, HDP, SMP, Polyester (PE) | PVDF and HDP coatings provide superior UV resistance and self-cleaning properties |
| Coating Thickness | Top coat: 20–25 μm; Primer: 5–7 μm; Back coat: 7–12 μm | Thicker PVDF/HDP top coat ensures low maintenance and extended color retention |
| Tensile Strength | 270–560 MPa (per EN 10346 / ASTM A653) | Varies by grade; S280GD min. 360 MPa, ensuring structural integrity |
| Yield Strength | ≥280 MPa (S280GD); ≥140 MPa (DX51D) | Adequate yield strength for roofing, cladding, and panel applications |
| Elongation | ≥16% (A80mm, per EN 10346) | Good ductility for roll-forming and bending without coating cracking |
| Base Metal Thickness | 0.30 mm – 1.50 mm | Custom thickness available; common roofing range 0.40–0.80 mm |
| Width | 600 mm – 1,250 mm | Standard coil width; slit-to-width service available upon request |
| Length / Form | Coil or cut-to-length sheet (1,000–6,000 mm) | Coil ID 508/610 mm; sheet length customizable per project requirement |
| Surface Finish | Smooth, embossed, or matte finish; RAL/custom color | Uniform color, anti-fingerprint, and dirt-resistant surface for minimal upkeep |
| Zinc/Zinc-Alloy Coating | Z60–Z275 g/m²; AZ50–AZ150 g/m² (Galvalume) | Hot-dip zinc or 55% Al-Zn alloy substrate for enhanced corrosion resistance |
| Application | Roofing, wall cladding, sandwich panels, garage doors, agricultural buildings | Ideal for industrial, commercial, and residential construction requiring low maintenance |
| Certification | ISO 9001, CE Marking, SGS, BV | Third-party inspection and quality management system certified |
| Packaging | Coil wrapped in waterproof paper + steel strip; sheets in wooden pallet | Export-standard packaging to prevent transit damage and moisture ingress |
| MOQ | 5 Metric Tons per color/specification | Mixed specifications negotiable for trial orders |
Initial color deviation on first shipment — issue fully resolved by supplier
First order of 25 tons, SMP coating, RAL 5010 gentian blue, 0.6 mm, Z140. On arrival, three coils showed a visible color shift versus the approved sample — ΔE measured around 1.9, above our 1.0 tolerance for EN 10169 compliance. Raised a formal complaint with photographic evidence. Supplier acknowledged the issue within 24 hours, arranged replacement coils shipped within 10 days, and issued a partial credit for the delay impact. Resolution was handled professionally. Coating hardness and adhesion on all other coils were fine. Cautiously optimistic for next order.
First order of 25 tons, SMP coating, RAL 5010 gentian blue, 0.6 mm, Z140. On arrival, three coils showed a visible color shift versus the approved sample — ΔE measured around 1.9, above our 1.0 tolerance for EN 10169 compliance. Raised a formal complaint with photographic evidence. Supplier acknowledged the issue within 24 hours, arranged replacement coils shipped within 10 days, and issued a partial credit for the delay impact. Resolution was handled professionally. Coating hardness and adhesion on all other coils were fine. Cautiously optimistic for next order.
