| Property | Parameter | Description |
|---|---|---|

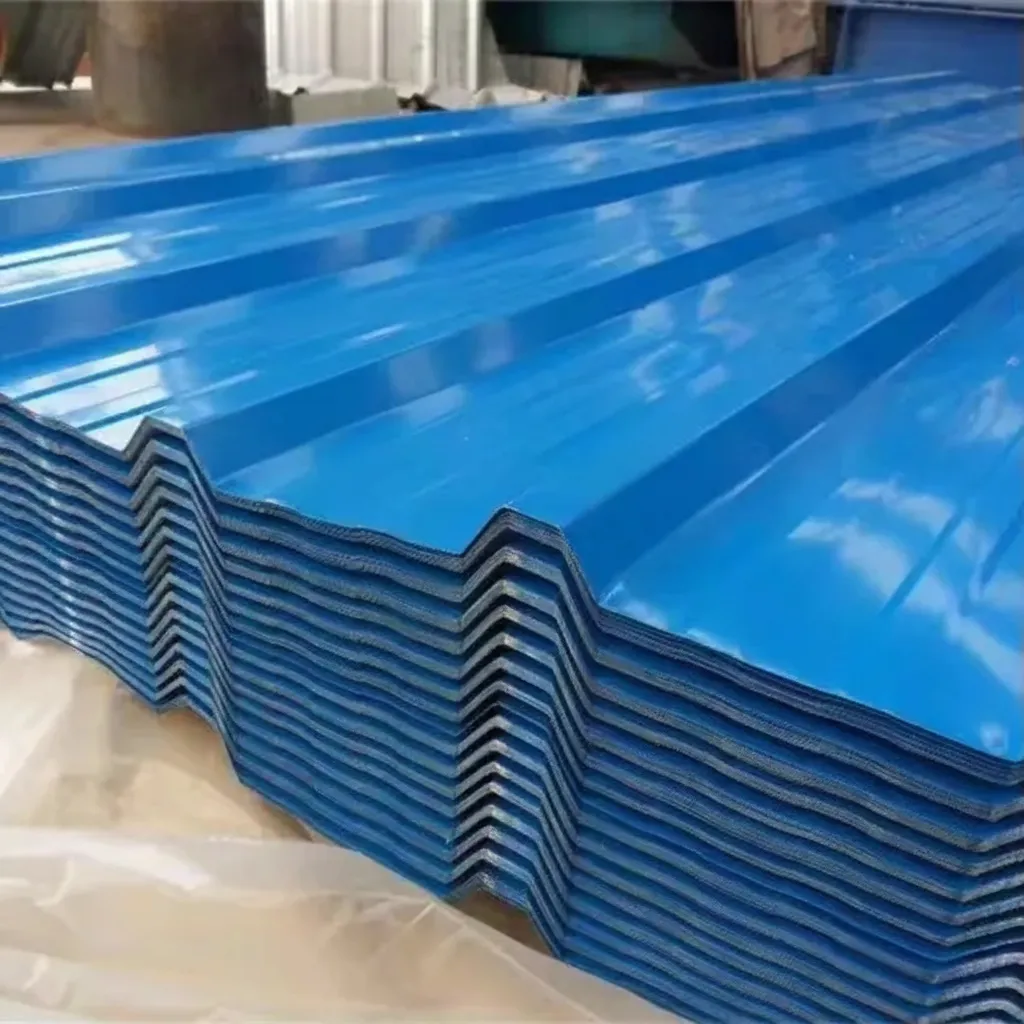

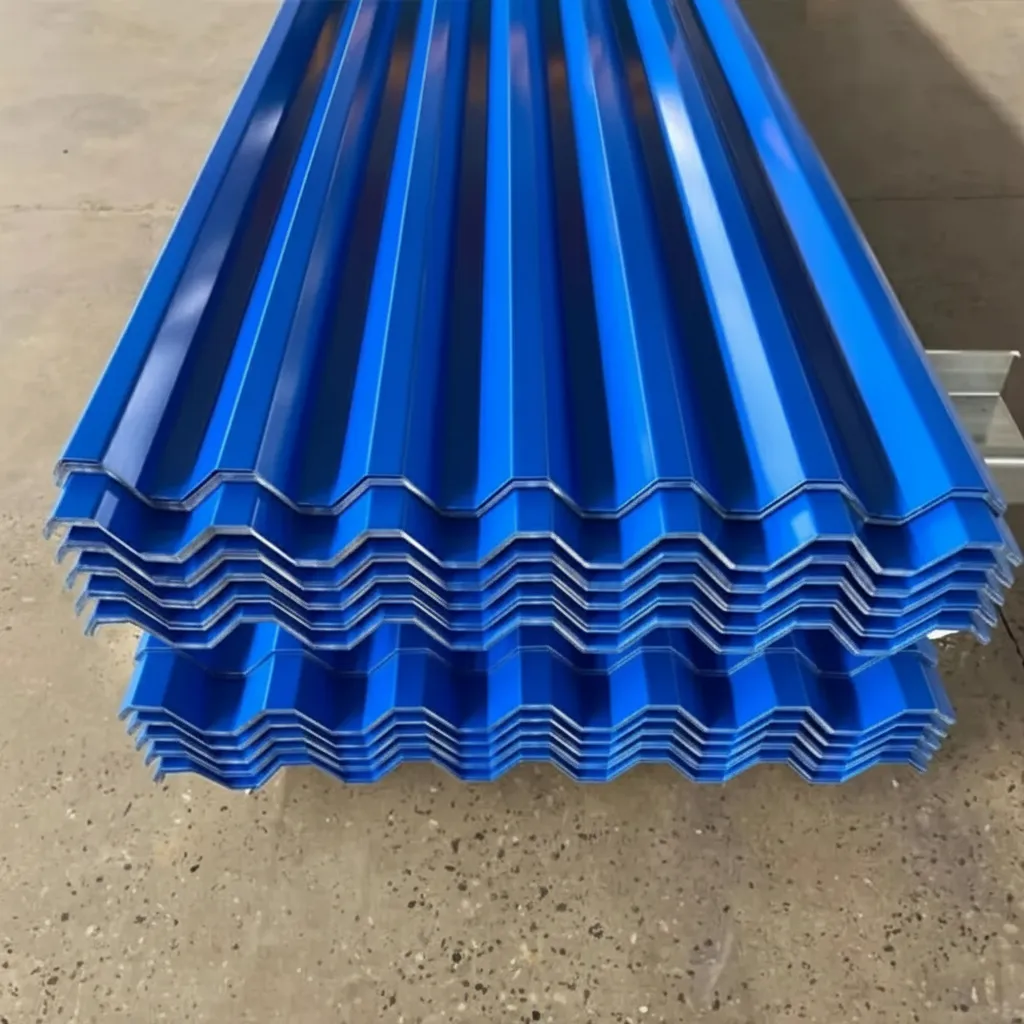

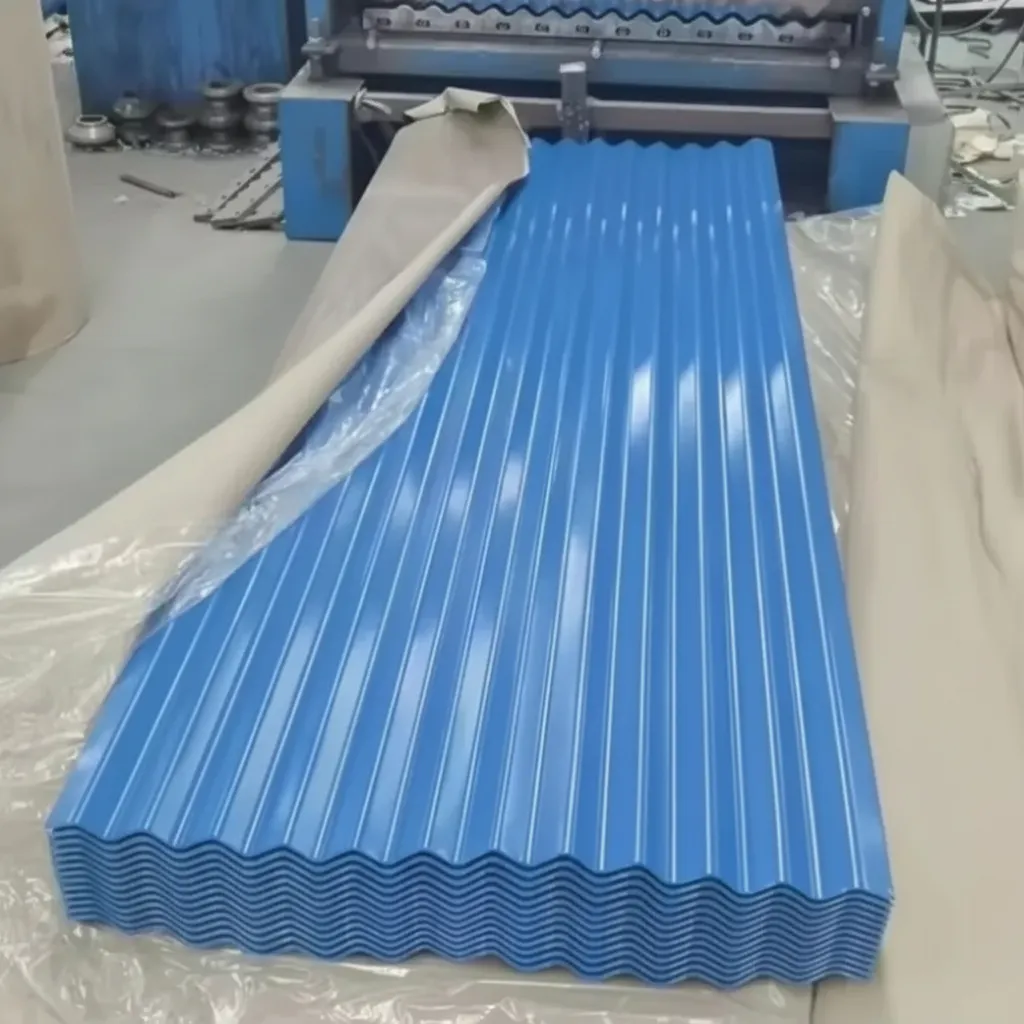

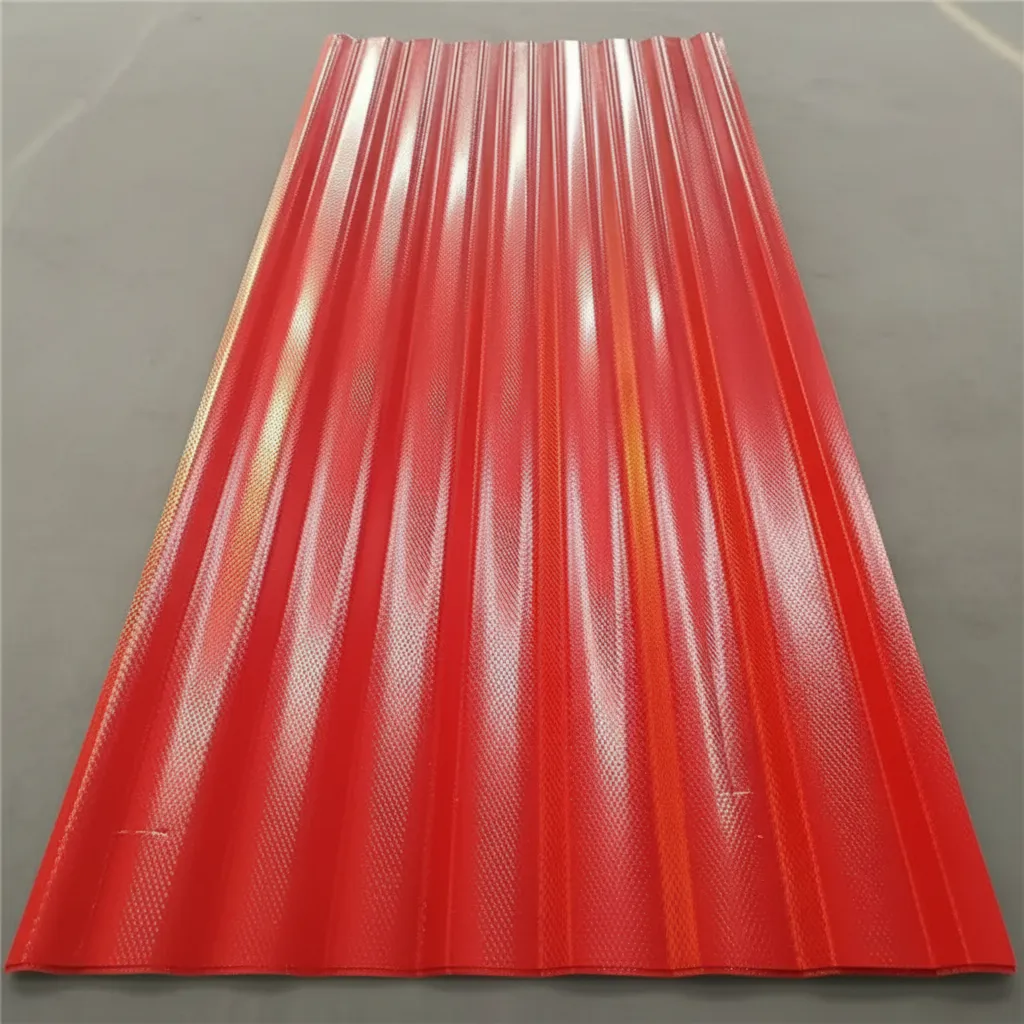

| Product Name | Roofing Color Coated Aluminum Sheet | Pre-painted aluminum sheet with protective coating for roofing applications |
| Material Grade | 1100, 3003, 3004, 3105, 5052 | International equivalents: AA1100, AA3003, AA3105; EN AW-3003, EN AW-5052 |
| Standard Compliance | ASTM B209, EN 485-2, GB/T 3880 | Coating standard: ASTM D3359, EN 13523; Color standard: RAL / Pantone system |
| Chemical Composition | Al ≥99.0% (1100); Mn 1.0–1.5% (3003); Mg 2.2–2.8% (5052) | Si ≤0.6%, Fe ≤0.7%, Cu ≤0.20%, Zn ≤0.10% (typical for 3003) |
| Tensile Strength | 110–290 MPa | Varies by alloy and temper; 3003-H14: ≥150 MPa; 5052-H32: ≥230 MPa (per ASTM B209) |
| Yield Strength | 85–215 MPa | 3003-H14: ≥130 MPa; 5052-H32: ≥195 MPa |
| Elongation | 4–12% | 3003-H14: ≥4%; 5052-H32: ≥7% (gauge length 50 mm) |
| Thickness Range | 0.2–4.0 mm | Common roofing thickness: 0.4–1.5 mm; tolerance per ASTM B209 or EN 485-2 |
| Width Range | 600–2200 mm | Standard widths: 914 mm, 1000 mm, 1219 mm, 1500 mm; custom slit widths available |
| Length / Coil | Sheet: 1000–6000 mm; Coil: OD ≤1800 mm | Coil inner diameter: 508 mm or 610 mm; coil weight: 2–5 MT |
| Coating Type | PVDF, PE (Polyester), SMP, HDP | PVDF (Kynar 500): 25–35 μm, superior UV resistance; PE: 18–25 μm, cost-effective |
| Coating Thickness | Top coat: 18–35 μm; Primer: 5–8 μm; Back coat: 8–15 μm | Total dry film thickness measured per ASTM D1005; adhesion ≥5B per ASTM D3359 |
| Surface Finish | Smooth, Stucco Embossed, Brushed, Matte, Glossy | Gloss level: 10–85 GU (60° angle); color options per RAL/Pantone; chalk resistance ≥8 |
| Application | Roofing panels, wall cladding, gutters, fascia, architectural facades | Suitable for residential, commercial, and industrial building envelopes |
| Certification | ISO 9001, CE, SGS, RoHS, REACH | PVDF coating certified by Kynar 500® or Hylar 5000®; fire rating per EN 13501 |
| Packaging | Wooden pallet with moisture-proof film; interleaved with PE film | Export seaworthy packaging; coils wrapped with waterproof kraft paper and steel strip |
| MOQ | 5 MT per color/specification | Mixed specifications accepted; sample order available; lead time 15–25 days |
Initial coating adhesion query resolved — quality now confirmed
On our first 20-ton trial order of 3105-H24 at 0.65 mm with PE coating, our incoming QC team flagged marginal cross-cut adhesion results on two coils that fell at the lower boundary of EN 13523-6 acceptance criteria. We raised this immediately with the technical team, who arranged re-testing with an independent lab and confirmed the results were within specification — our in-house test fixture had a calibration issue. The supplier also sent a supplementary technical data sheet clarifying curing parameters. Issue fully resolved, and we have since placed a follow-up order of 35 tons with confidence.
