| Property | Parameter | Description |
|---|---|---|

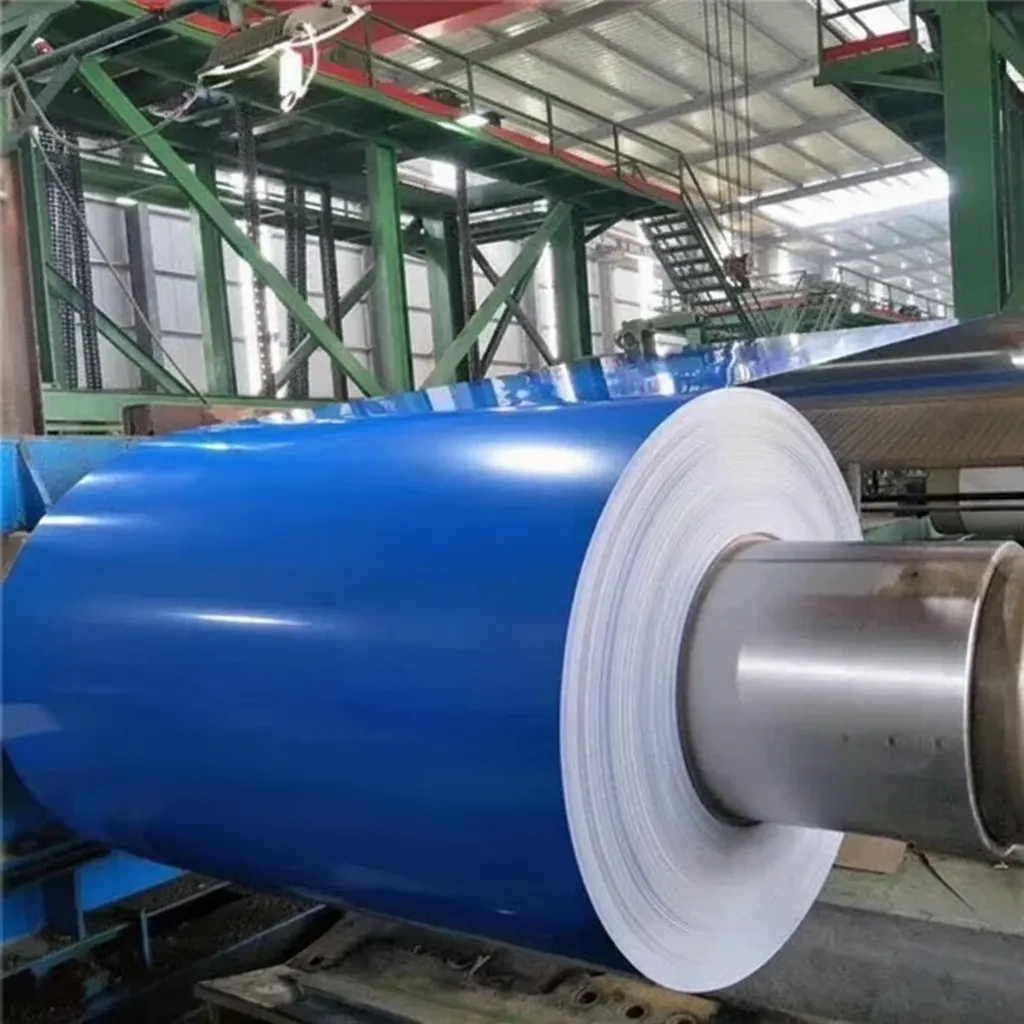

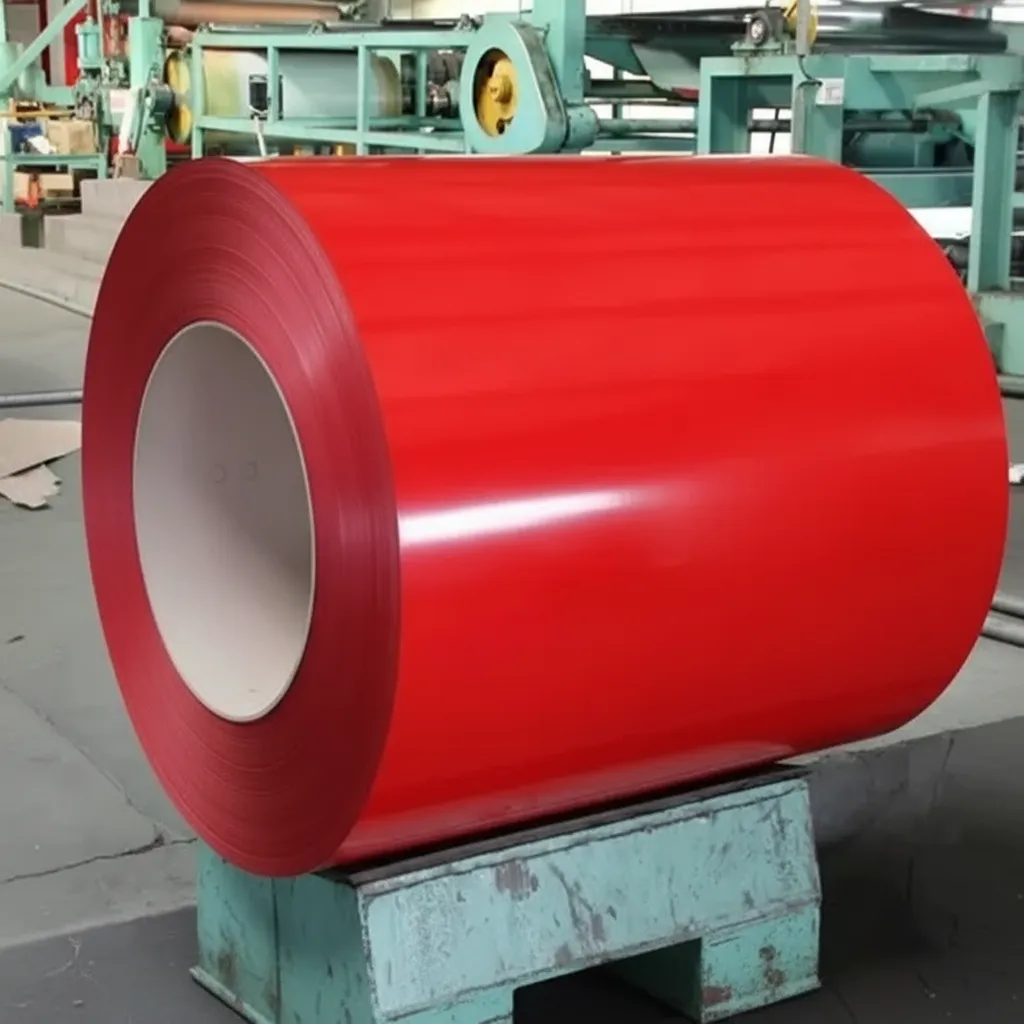

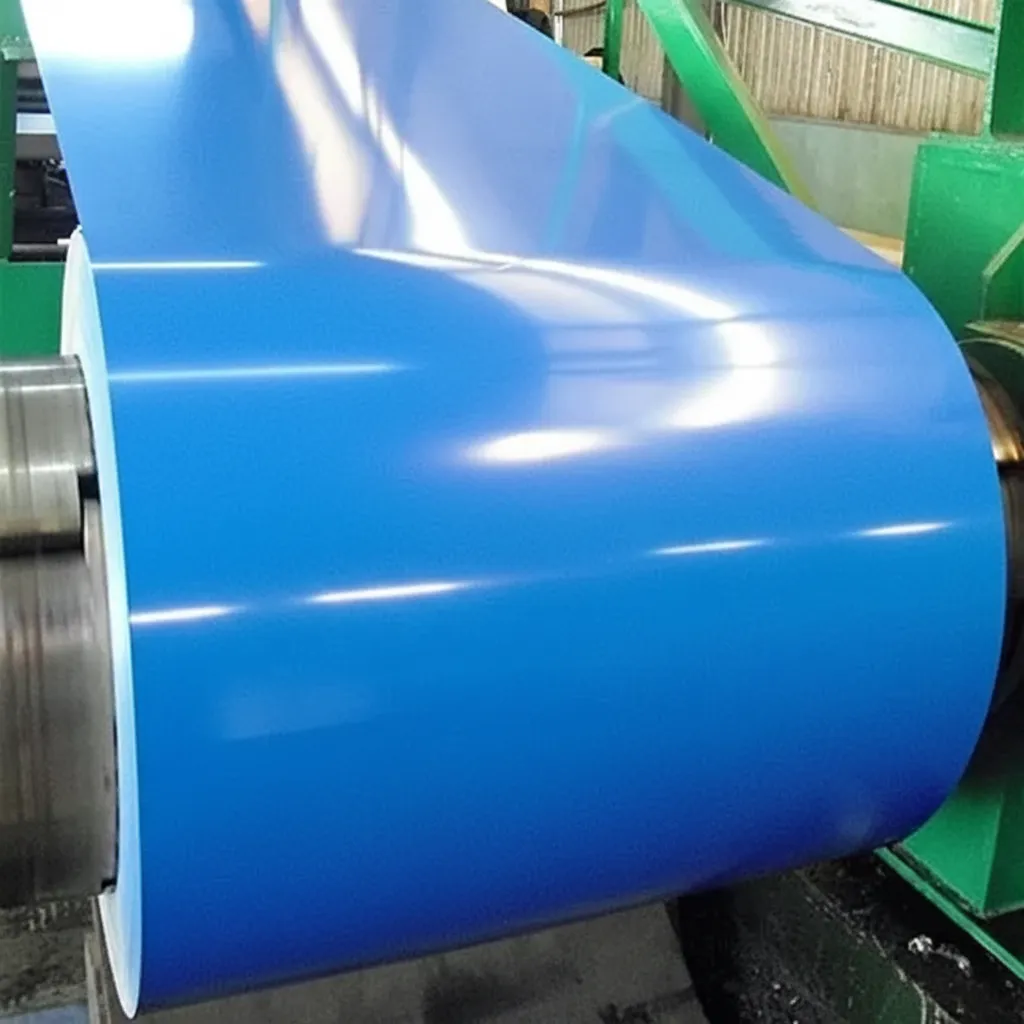

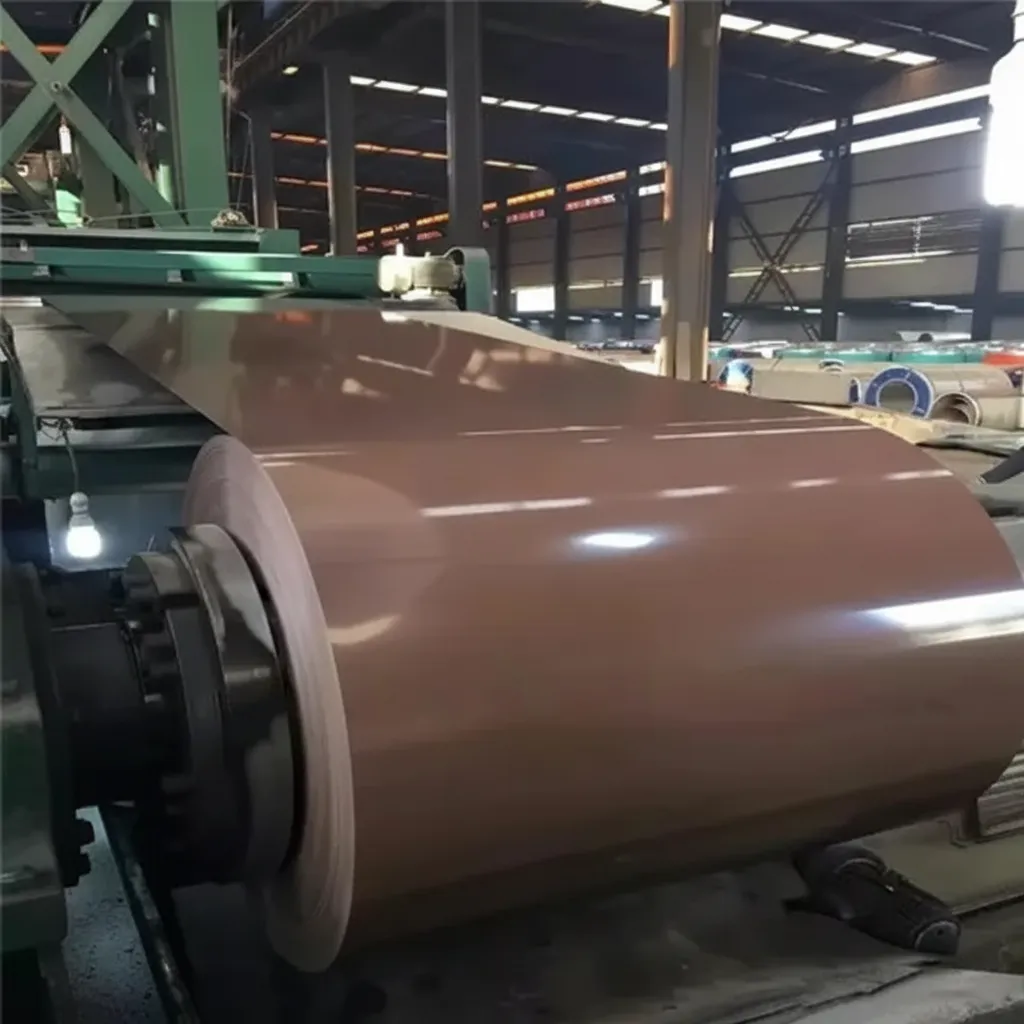

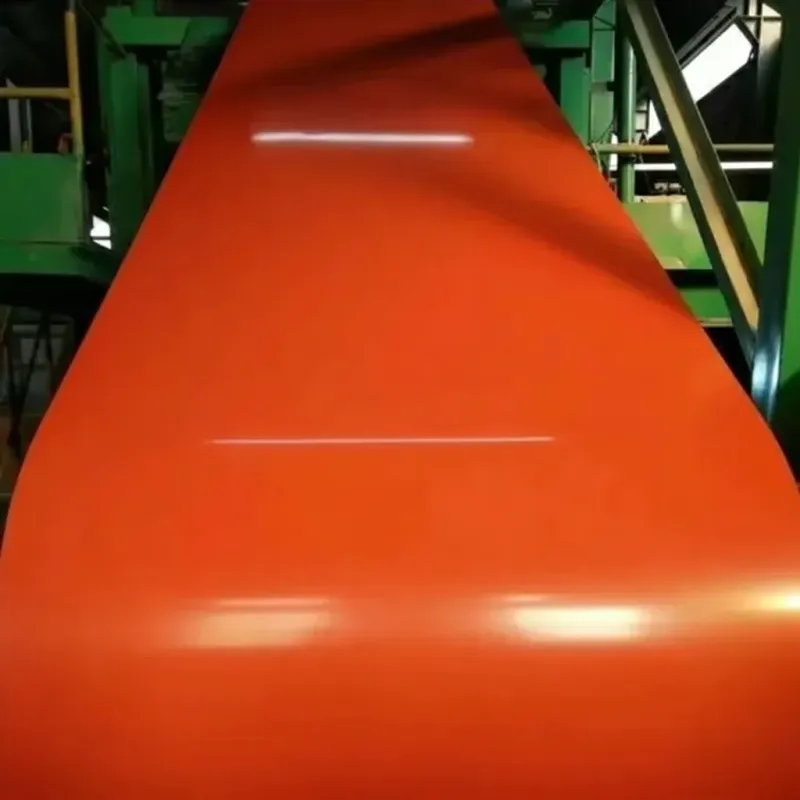

| Product Name | Light Weight Color Coated Metal Coil | Pre-painted metallic coil with lightweight substrate for construction and industrial use |
| Material Grade | DX51D, DX52D, S250GD, S280GD (EN); CGCC, CGCD (JIS); Q195, Q235 (GB) | International equivalent grades available; substrate options include galvanized, galvalume, and aluminum |
| Standard Compliance | ASTM A755/A755M, EN 10169, JIS G3312, GB/T 12754 | Meets major international standards for continuously organic-coated flat-rolled steel |
| Chemical Composition | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Base metal composition; coating layer adds Al-Zn or Zn for corrosion resistance |
| Tensile Strength | 270–550 MPa | Varies by substrate grade per EN 10169 and ASTM A755; higher grades available on request |
| Yield Strength | 140–420 MPa | Minimum yield strength per applicable standard; suitable for forming and roll-forming applications |
| Elongation | ≥ 14–22% | Measured at A80 gauge length; ensures good formability for profiling and bending |
| Thickness Range | 0.12–1.50 mm (base metal); total coated: 0.15–1.60 mm | Lightweight design with thin substrate; tolerances per EN 10143 or ASTM A924 |
| Width Range | 600–1,500 mm | Custom slit widths available; standard coil width tolerance ±5 mm |
| Coating Type | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP | Top coat 15–25 μm; primer 5–7 μm; back coat 5–15 μm; color per RAL or custom |
| Zinc/Coating Mass | AZ50–AZ150 (Galvalume); Z60–Z275 (Galvanized) g/m² | Per ASTM A792 / EN 10346; ensures long-term corrosion protection under organic coating |
| Surface Finish | Smooth, Embossed, Matte, Glossy, Textured | Gloss level 10–80 GU (60° angle); uniform color consistency across coil length |
| Application | Roofing, wall cladding, sandwich panels, home appliances, automotive trim, HVAC ducts | Ideal for lightweight structural and decorative applications in construction and manufacturing |
| Certification | ISO 9001:2015, CE Marking, SGS, BV, RoHS Compliant | Third-party inspection available; mill test certificate (MTC) provided with each shipment |
| Packaging | Eye-to-sky or eye-to-wall coil packaging; waterproof paper + steel strip strapping | Inner diameter 508/610 mm; outer diameter up to 1,500 mm; coil weight 3–8 MT |
| MOQ | 25 MT per order (mixed specifications accepted) | Sample coils available; OEM color and coating specifications supported for bulk orders |
Initial Width Tolerance Issue – Resolved Promptly by Supplier
Our first order of 30 tons of 0.40mm galvanized coil, specified at 1,200mm width, arrived with three coils measuring 1,196–1,197mm—outside our roll-forming line's acceptable range. I raised the issue immediately, and the supplier's technical team responded the same day. They arranged a partial replacement shipment and provided a revised quality inspection report confirming the corrected width tolerance for subsequent coils. The replacement arrived within 10 days and all coils were within spec. The issue was handled professionally, and we have since placed a follow-up order. Would consider them again based on how the complaint was managed.
