| Property | Parameter | Description |
|---|---|---|

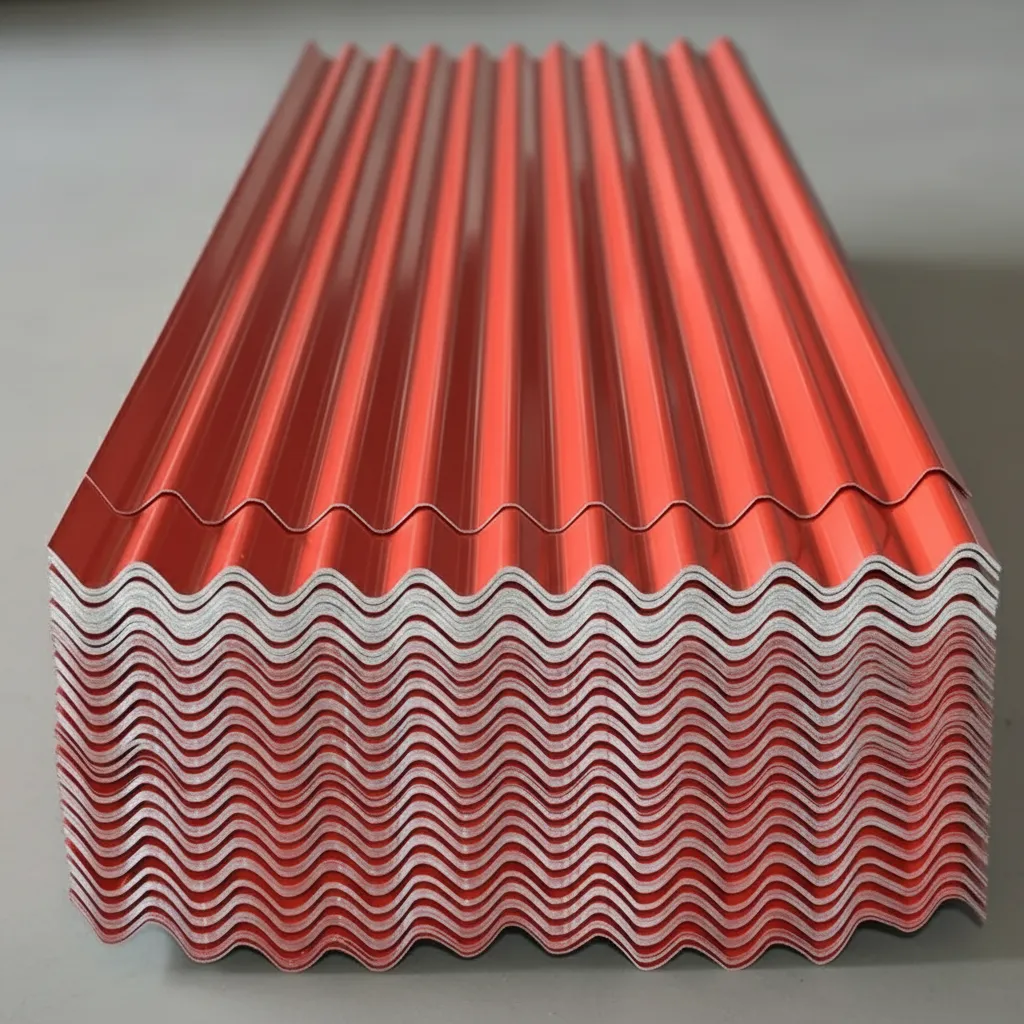

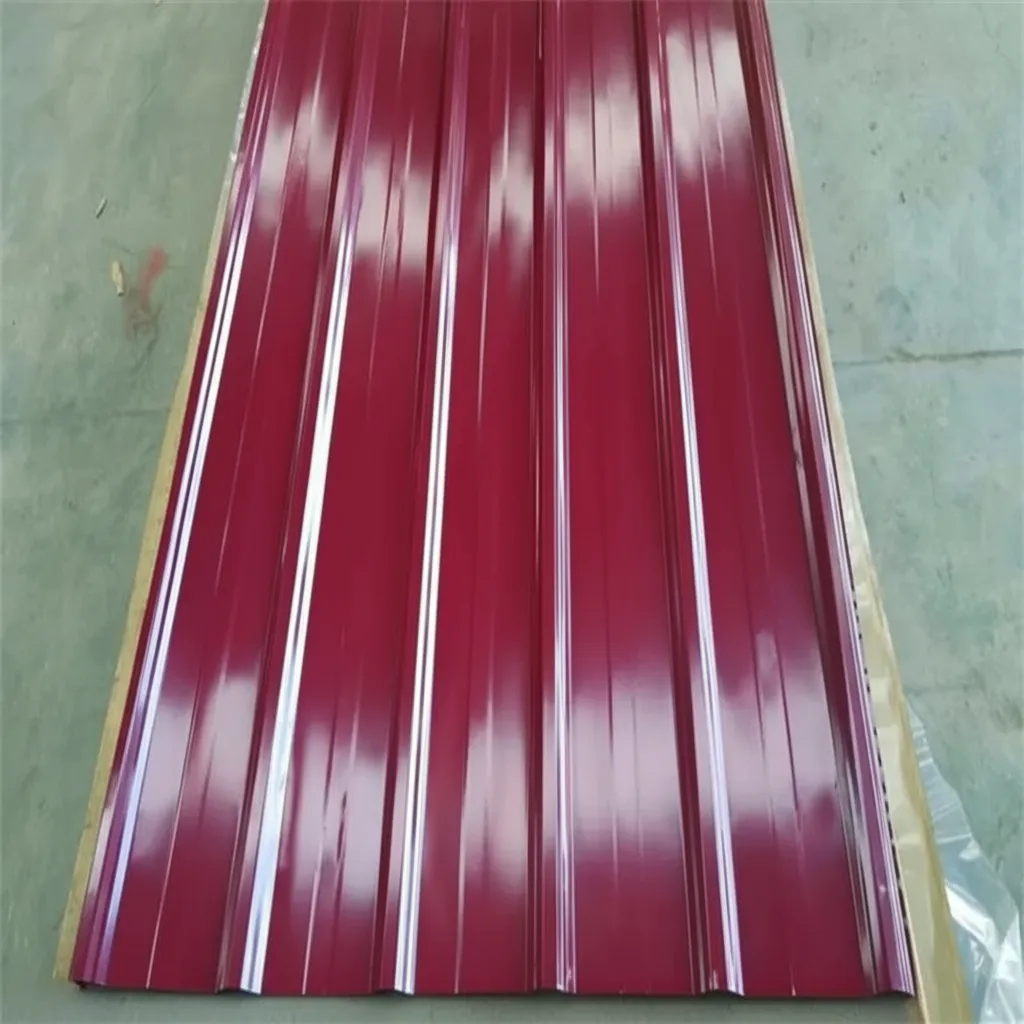

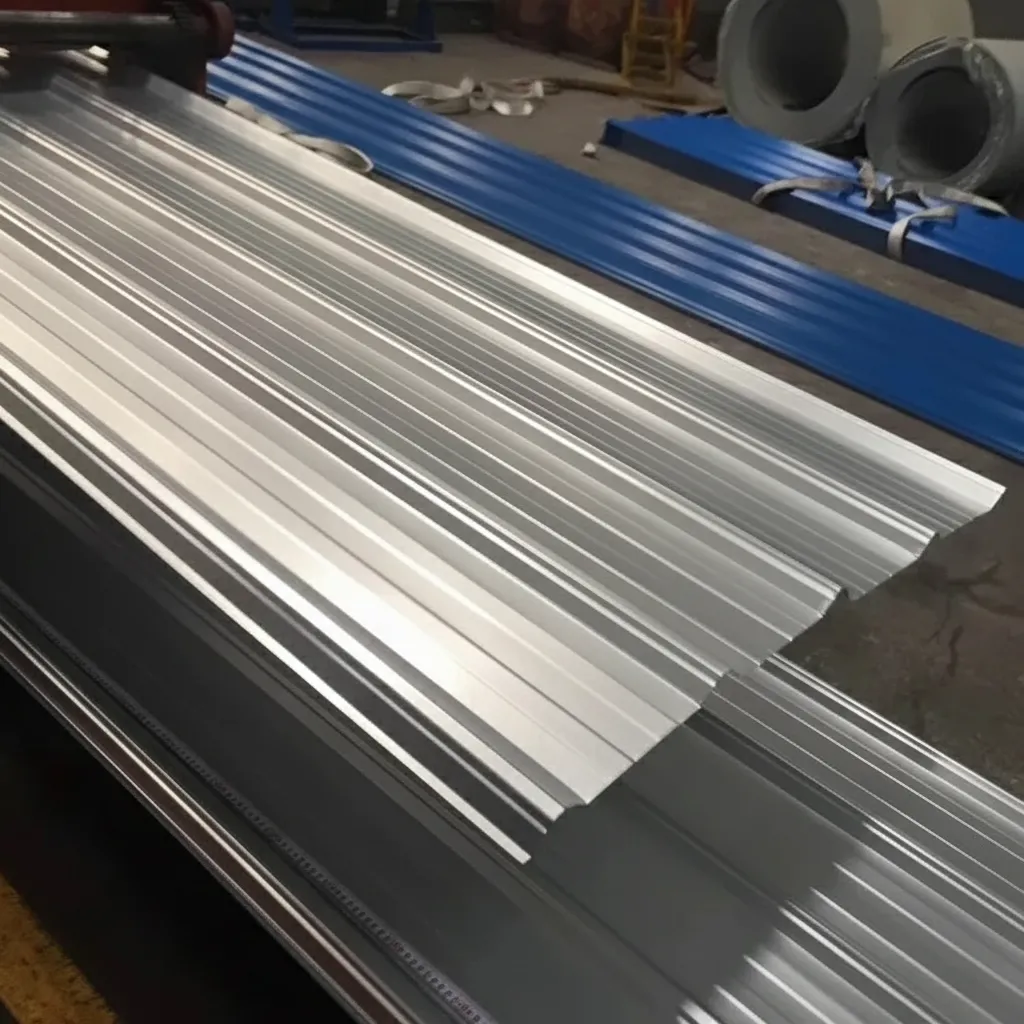

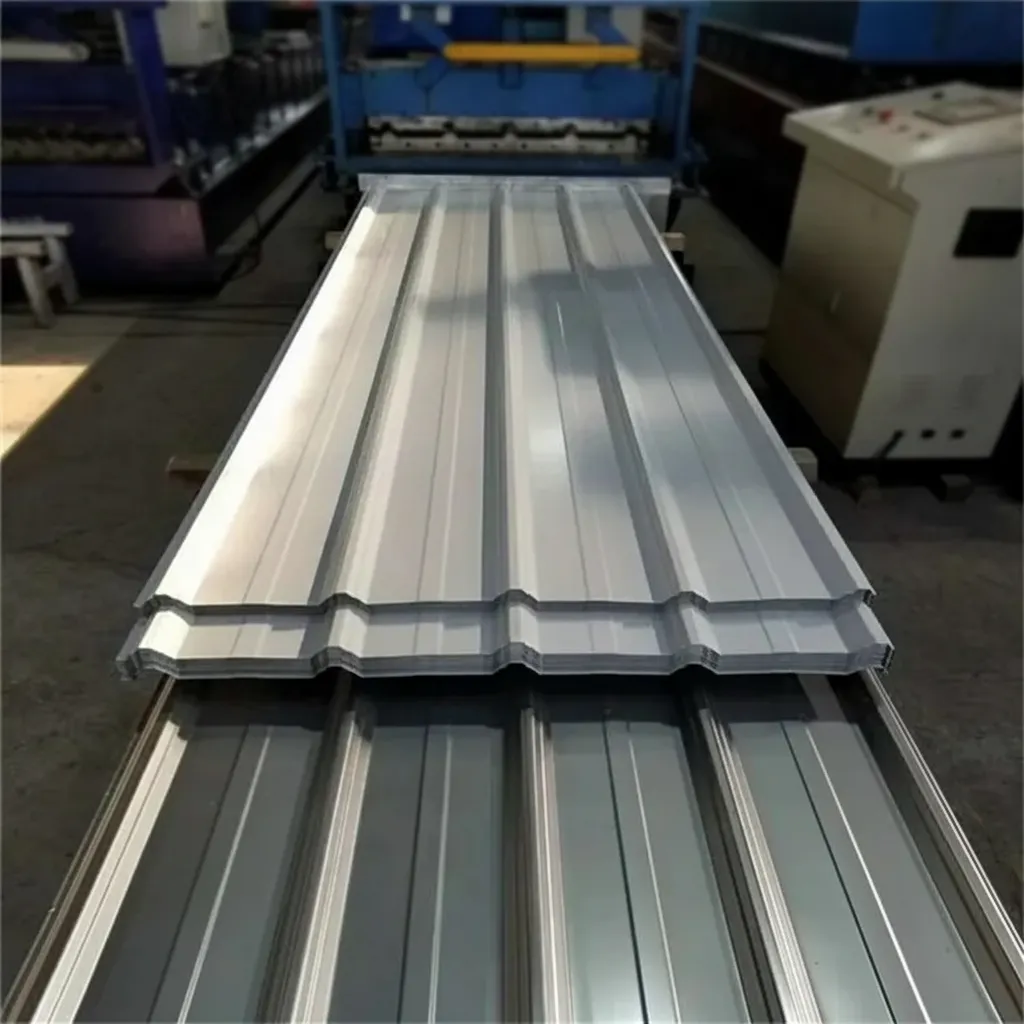

| Product Name | Metal Color Coating Steel | Pre-painted / color-coated metal sheet with decorative and protective coating |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD / Q195, Q235 | Equivalent to ASTM A653 CS/FS/SS, EN 10346 DX51D+Z, JIS G3302 SGCC |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | International standards for continuously organic-coated flat-rolled steel |
| Base Metal | Hot-dip galvanized (GI), Galvalume (GL), Cold-rolled steel (CR) | Zinc coating: Z60–Z275 g/m²; AZ50–AZ150 g/m² for Galvalume |
| Chemical Composition (Base) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Typical composition for DX51D low-carbon steel substrate |
| Tensile Strength | 270–500 MPa | Per ASTM A755 / EN 10169; varies by grade and coating type |
| Yield Strength | 140–420 MPa | DX51D: ≥140 MPa; SS Grade 340: ≥340 MPa (ASTM A653) |
| Elongation | ≥22% (DX51D), ≥16% (SS340) | Measured on 80 mm gauge length per EN 10169 / ASTM A755 |
| Coating Type | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP, Epoxy | Top coat + primer system; PVDF offers superior UV and weather resistance |
| Coating Thickness | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 5–15 µm | Total dry film thickness measured per ASTM D1400 / ISO 2808 |
| Gloss Level | 10–90 GU (Gloss Units) | Matte (10–30 GU), Semi-gloss (30–60 GU), High-gloss (60–90 GU) at 60° |
| Dimensions | Thickness: 0.14–1.50 mm; Width: 600–1,500 mm; Coil OD: ≤2,000 mm | Custom slit widths and cut-to-length sheets available upon request |
| Surface Finish | Smooth, Embossed, Matte, Wrinkle, Woodgrain, Stone pattern | RAL / Pantone color matching available; both sides coatable |
| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts, signage | Widely used in construction, automotive, and household appliance industries |
| Certification | ISO 9001, CE, SGS, RoHS, REACH | Mill test certificate (MTC) per EN 10204 3.1 provided with each shipment |
| Packaging | Eye-to-sky or eye-to-wall coils; waterproof paper + steel strip strapping | Export seaworthy packaging; palletized sheets available |
| MOQ | 25 MT per order (coil); 5 MT (cut-to-length sheets) | Mixed colors/grades accepted; lead time 15–25 days after order confirmation |
Initial color variance issue — resolved professionally after communication
Our first order of 20 MT of PE-coated GI coil, 0.35 mm in RAL 5015, showed a visible gloss variance between two coils in the same shipment — one measured 42 GU and another 51 GU against a 45 GU specification per ASTM D523. We raised this immediately. The supplier's QC team responded within 24 hours, acknowledged the variance, and arranged a replacement coil plus a credit on the next order. The replacement met spec exactly. Communication was transparent and the resolution was fair. We have since placed a follow-up order and the quality was consistent. Confidence restored.
