| Property | Parameter | Description |
|---|---|---|

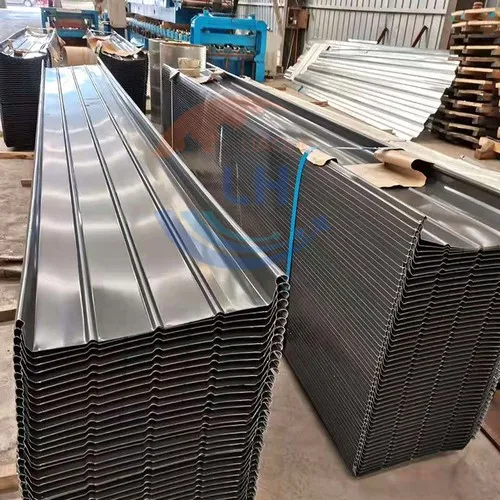

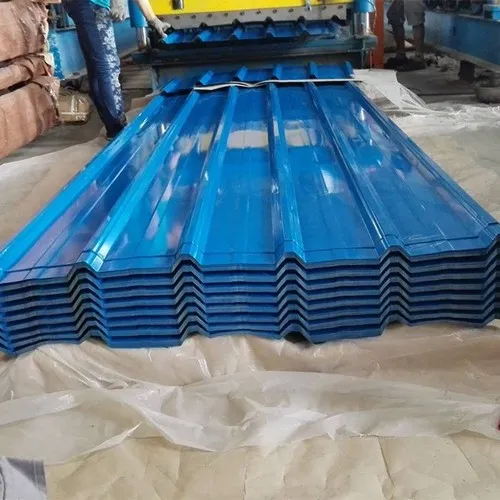

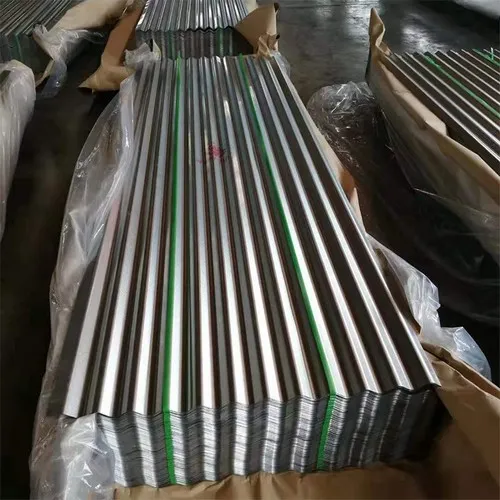

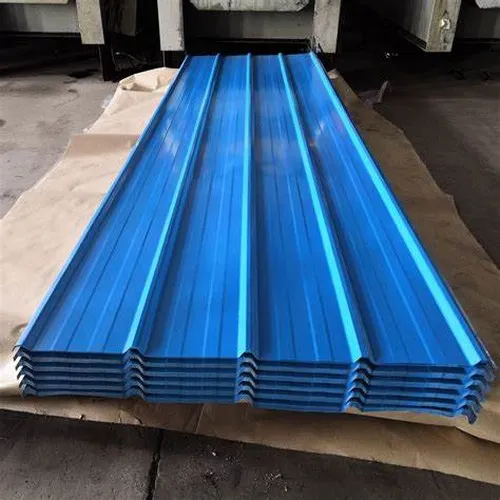

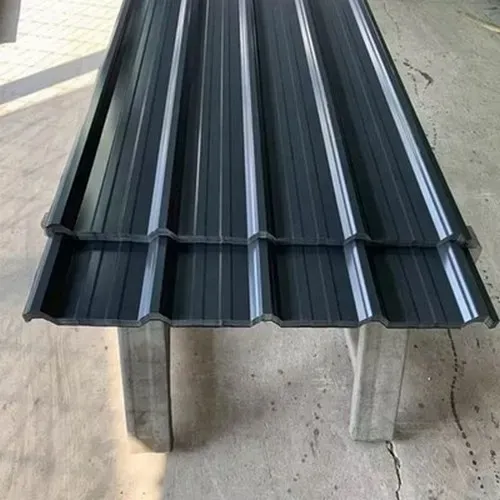

| Product Name | Galvalume Color Steel Sheet | Pre-painted aluminum-zinc alloy coated steel sheet (PPGL/PPAZ) |
| Material Grade | AZ150 / AZ100 / AZ50 | Equivalent to ASTM A755M, JIS G3322 CGLCC/CGLCH, GB/T 14978 |
| Standard Compliance | ASTM A755M / EN 10169 / JIS G3322 / GB/T 14978 | International standards for prepainted Galvalume steel coils and sheets |
| Base Metal Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.04%, S ≤0.045%, Si ≤0.50% | Low-carbon steel substrate with Al-Zn alloy coating (55% Al, 43.5% Zn, 1.5% Si) |
| Coating Composition | 55% Aluminum, 43.5% Zinc, 1.5% Silicon | Galvalume (AZ) coating provides superior corrosion and heat resistance |
| Tensile Strength | ≥270 MPa (Commercial Grade) / ≥340 MPa (Structural Grade) | Per ASTM A755M / JIS G3322; higher grades available upon request |
| Yield Strength | ≥240 MPa (Commercial) / ≥310 MPa (Structural) | Ensures structural integrity for roofing and cladding applications |
| Elongation | ≥20% (t ≤0.6mm) / ≥22% (t >0.6mm) | Good formability for roll-forming and bending processes |
| Thickness Range | 0.14 mm – 1.50 mm | Custom thickness available; base metal thickness excludes coating |
| Width Range | 600 mm – 1,250 mm | Slit coils and cut-to-length sheets available |
| Length | Coil or 1,000 mm – 6,000 mm (sheets) | Coil inner diameter: 508 mm or 610 mm; coil weight up to 10 MT |
| Surface Finish / Paint Coating | Top coat: 15–25 μm PVDF / PE / SMP / HDP; Back coat: 5–10 μm | RAL/Pantone custom colors; gloss, matte, textured, or embossed finishes |
| Coating Adhesion | ≥0T bending (no cracking); Cross-cut adhesion Grade 0 per ISO 2409 | Excellent paint adhesion ensures long-term durability outdoors |
| Application | Roofing, wall cladding, sandwich panels, home appliances, agricultural buildings | Widely used in construction, industrial, and residential sectors |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Third-party inspection and mill test certificates (MTC) available |
| Packaging | Eye-to-sky or eye-to-wall coils; waterproof paper + steel strip strapping | Export seaworthy packaging; palletized sheets available |
| MOQ | 25 MT per order (mixed specifications accepted) | Sample orders negotiable; lead time 15–25 days after order confirmation |
Initial color variation issue — resolved after replacement coils supplied
Our first order of 35 tons of 0.40 mm AZ100 polyester galvalume sheet in a custom blue shade showed visible color variation between two coils from different production batches — noticeable when panels were installed side by side on the same facade. We raised the issue with the quality team immediately. To their credit, replacement coils from a single batch were shipped within 18 days at no additional freight cost, and the color consistency on the replacement material was acceptable. The resolution process was professional. We've since placed a follow-up order with stricter single-batch requirements confirmed in writing.
