| Property | Parameter | Description |
|---|---|---|

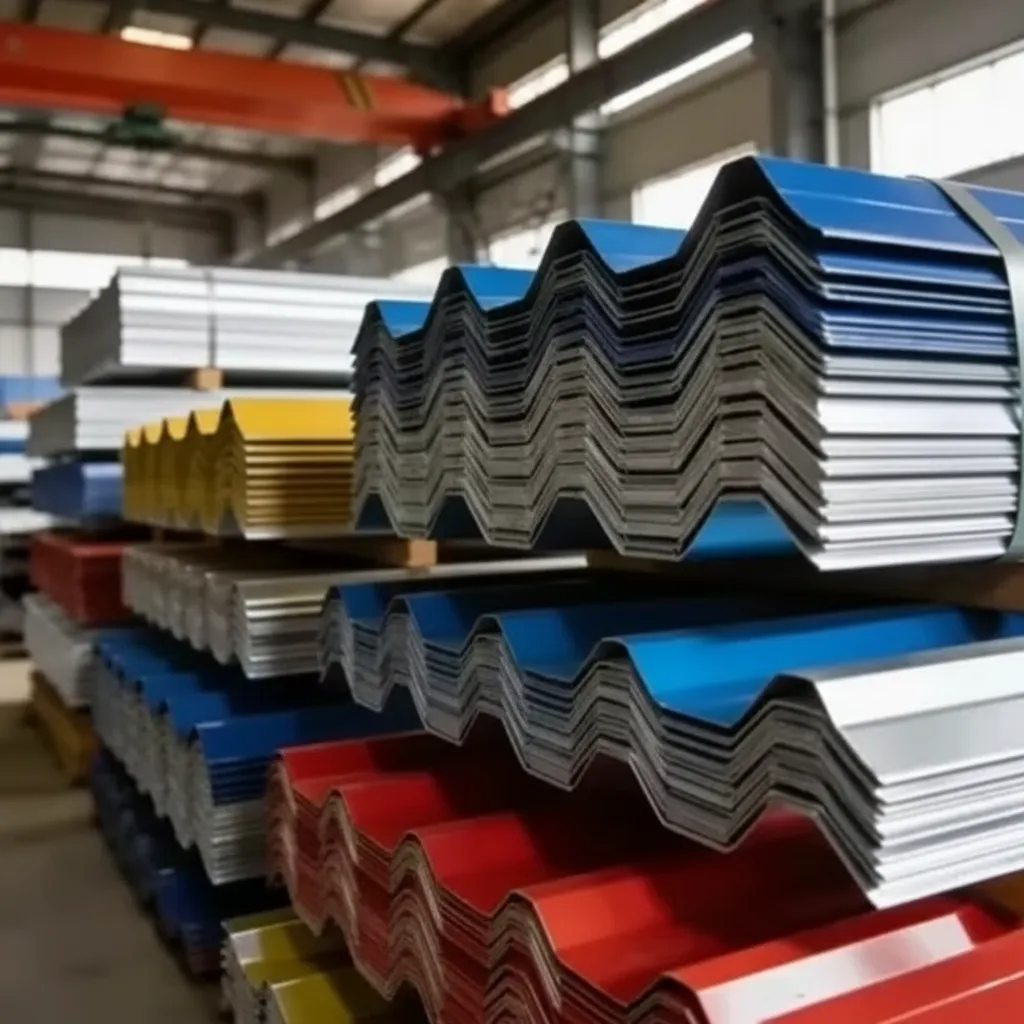

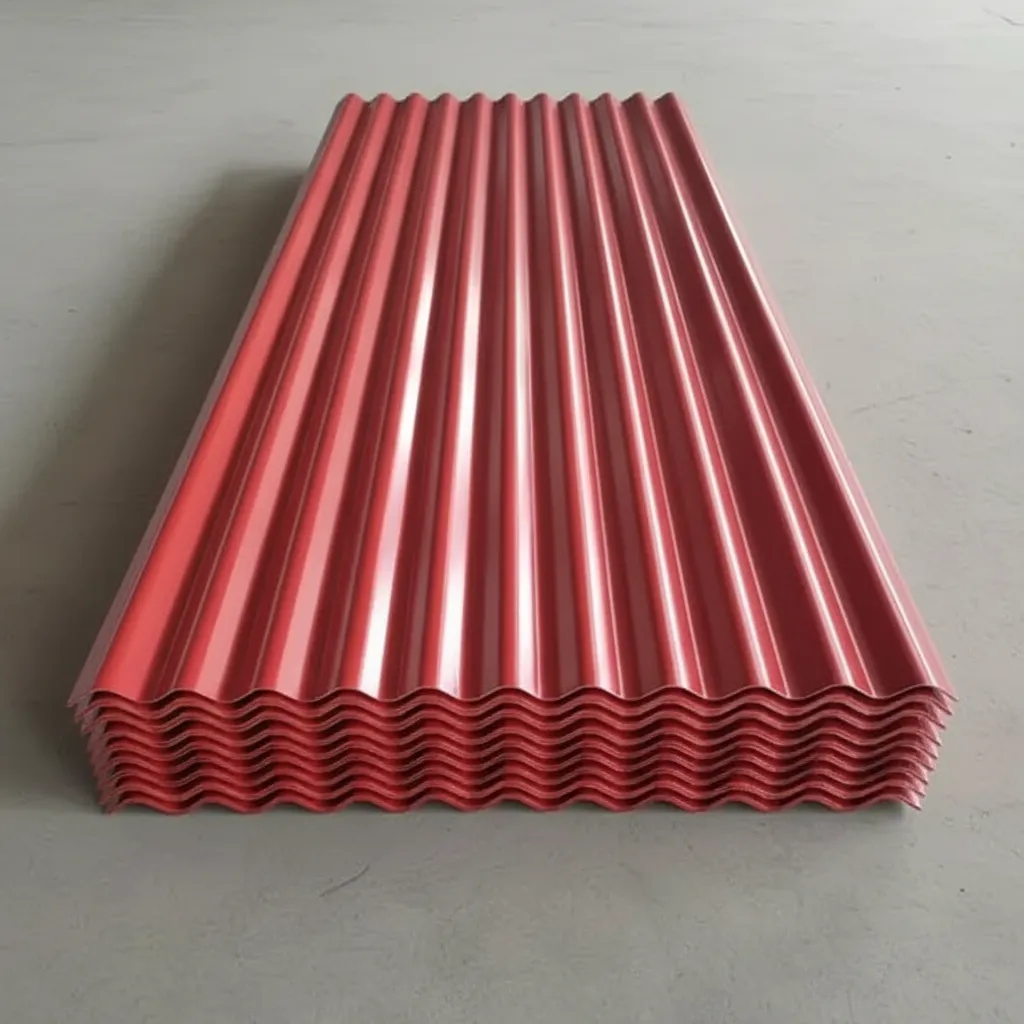

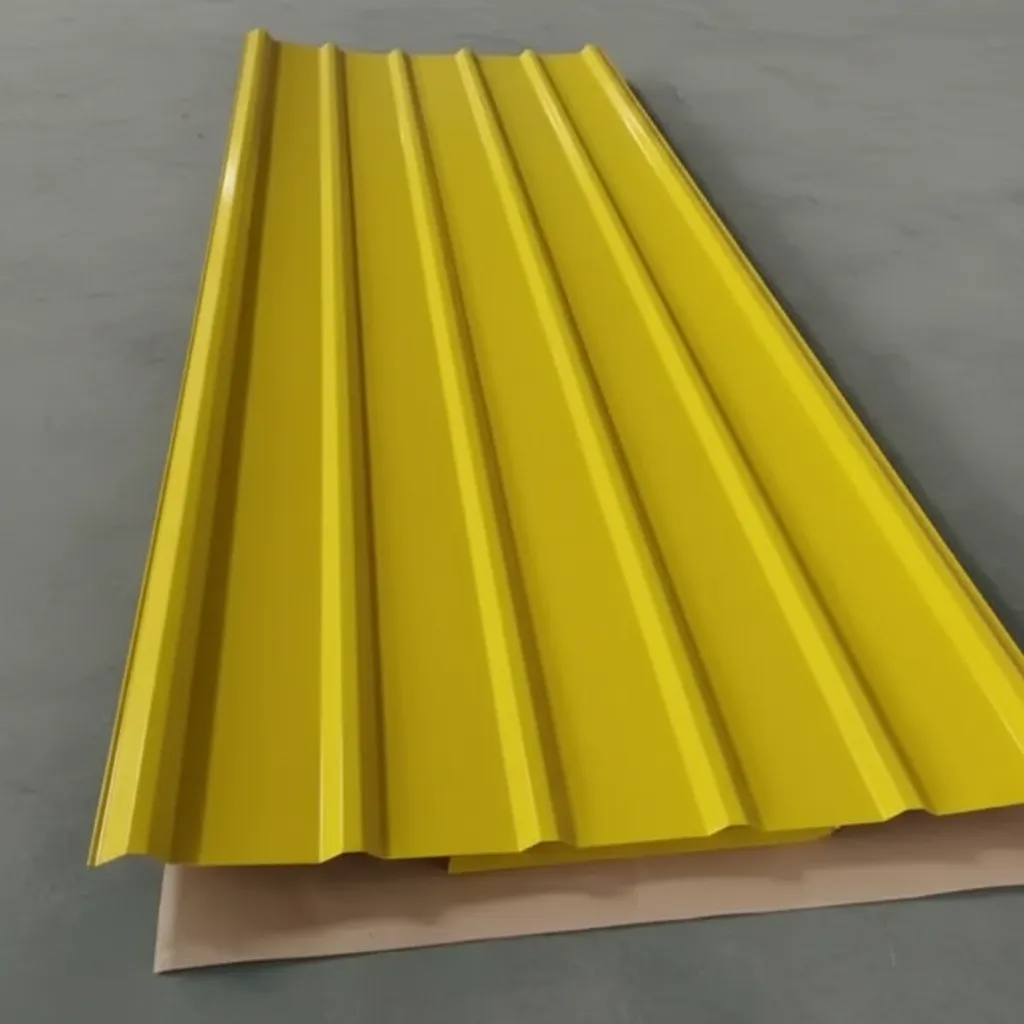

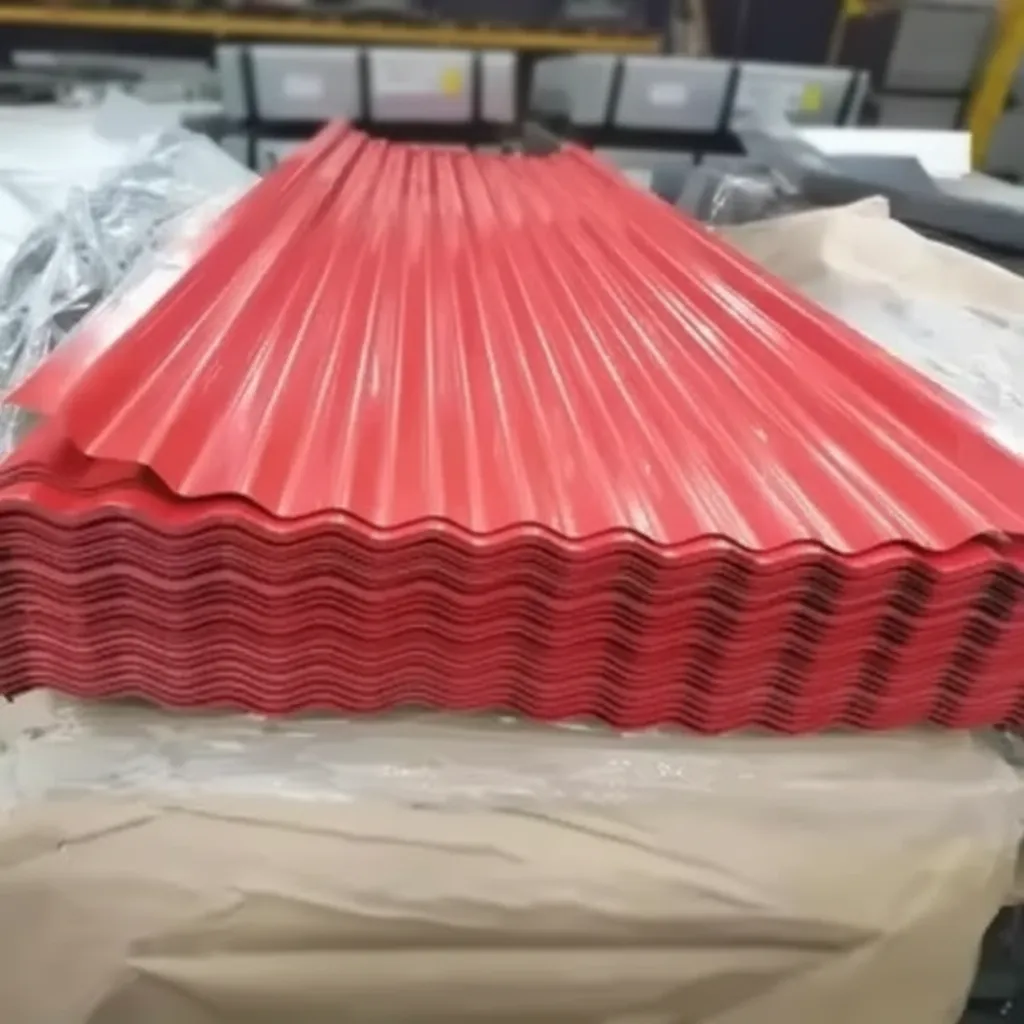

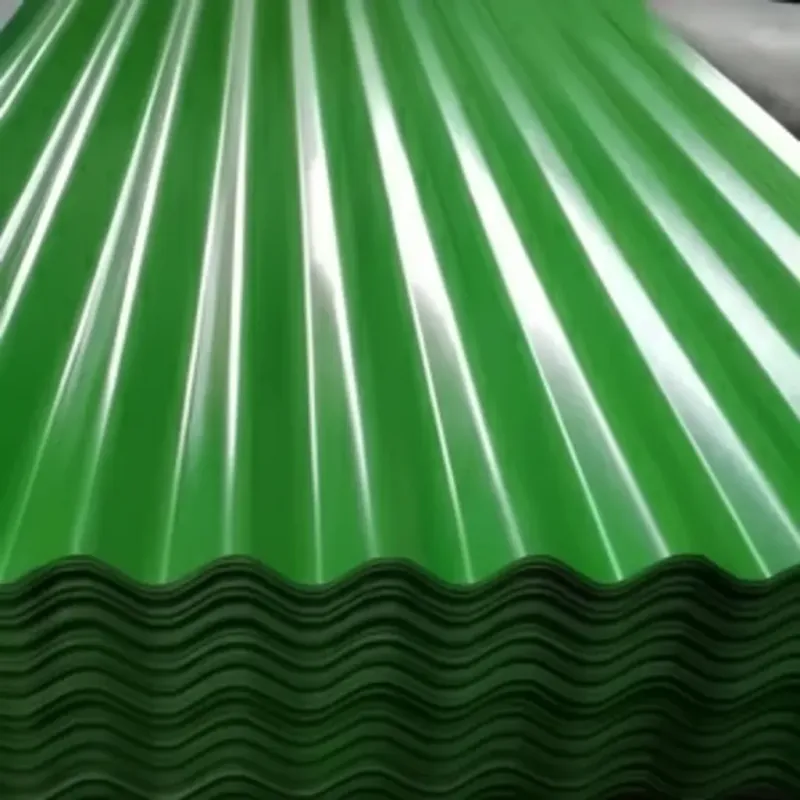

| Product Name | Corrugated Color Coated Aluminum Sheet | Pre-painted corrugated aluminum sheet for roofing and cladding applications |
| Material Grade | 1100, 3003, 3004, 3105, 5052 (AA Standard) | Equivalent to EN AW-1100, EN AW-3003, EN AW-5052; suitable for forming and coating |
| Standard Compliance | ASTM B209, EN 485-2, GB/T 3880 | Meets international standards for aluminum alloy sheet and strip |
| Chemical Composition | Al ≥99.0% (1100); Mn 1.0–1.5% (3003); Mg 2.2–2.8% (5052) | Low Cu content ensures corrosion resistance; Mn/Mg additions improve strength |
| Coating Type | PVDF, PE (Polyester), SMP, HDP | PVDF offers superior UV resistance; PE suitable for general indoor/outdoor use |
| Coating Thickness | Top coat: 18–25 µm; Primer: 5–7 µm; Back coat: 8–12 µm | Measured per ASTM D1005; ensures durability and adhesion |
| Tensile Strength | 110–260 MPa (varies by alloy/temper) | Per ASTM B209; 3003-H14: ≥150 MPa; 5052-H32: ≥215 MPa |
| Yield Strength | 85–200 MPa | 3003-H14: ≥130 MPa; 5052-H32: ≥160 MPa per ASTM B209 |
| Elongation | 4–12% | Measured on 50 mm gauge length per ASTM E8; temper-dependent |
| Base Metal Thickness | 0.3–1.5 mm | Common roofing gauges: 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm |
| Sheet Width | 600–1500 mm (effective width after corrugation) | Standard effective coverage width: 760 mm, 900 mm, 1000 mm |
| Sheet Length | 1000–6000 mm (customizable) | Custom lengths available per project requirement |
| Corrugation Profile | Wave height: 18–36 mm; Pitch: 63–130 mm | Standard profiles: 18/76, 32/76, 36/130; custom profiles available |
| Surface Finish | Smooth, embossed, or stucco; RAL/Pantone color matching | Gloss level 30–80 GU (60° angle); color uniformity per ASTM D2244 |
| Application | Roofing, wall cladding, industrial buildings, agricultural structures, carports | Widely used in commercial, residential, and industrial construction projects |
| Certification | ISO 9001:2015, CE Marking, SGS, RoHS Compliant | Quality management and environmental compliance certifications |
| Packaging | Wooden pallet with waterproof film and steel strapping | Each bundle ≤3 MT; edge protectors applied to prevent transit damage |
| MOQ | 5 MT per color/specification | Mixed specifications accepted for orders ≥10 MT; sample orders negotiable |
Initial color batch variance flagged — supplier resolved promptly with replacement
First order of 4 tons of 0.50mm corrugated sheets in RAL 5015 sky blue for a Dubai residential project showed visible color variation between two coil batches — Delta E exceeded our 1.5 tolerance. Raised the issue with the technical team immediately. To their credit, they acknowledged the batch mixing error, provided a full replacement coil within 18 days, and supplied updated QC inspection reports. Replacement material passed our color consistency check. Coating specs — PVDF 22µm, pencil hardness 2H, ASTM B117 ≥1000h — were correct throughout. Issue resolved; willing to reorder with confirmed single-batch production.
