| Property | Parameter | Description |
|---|---|---|

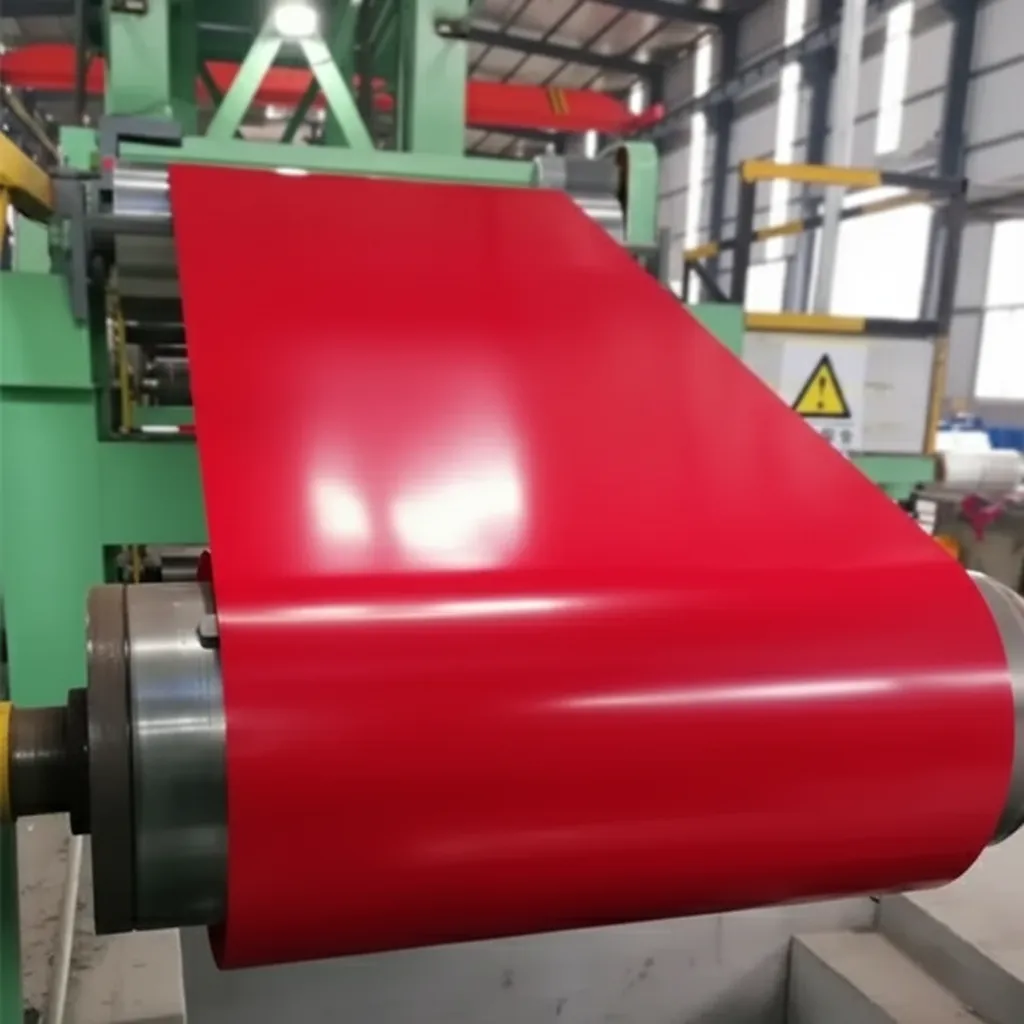

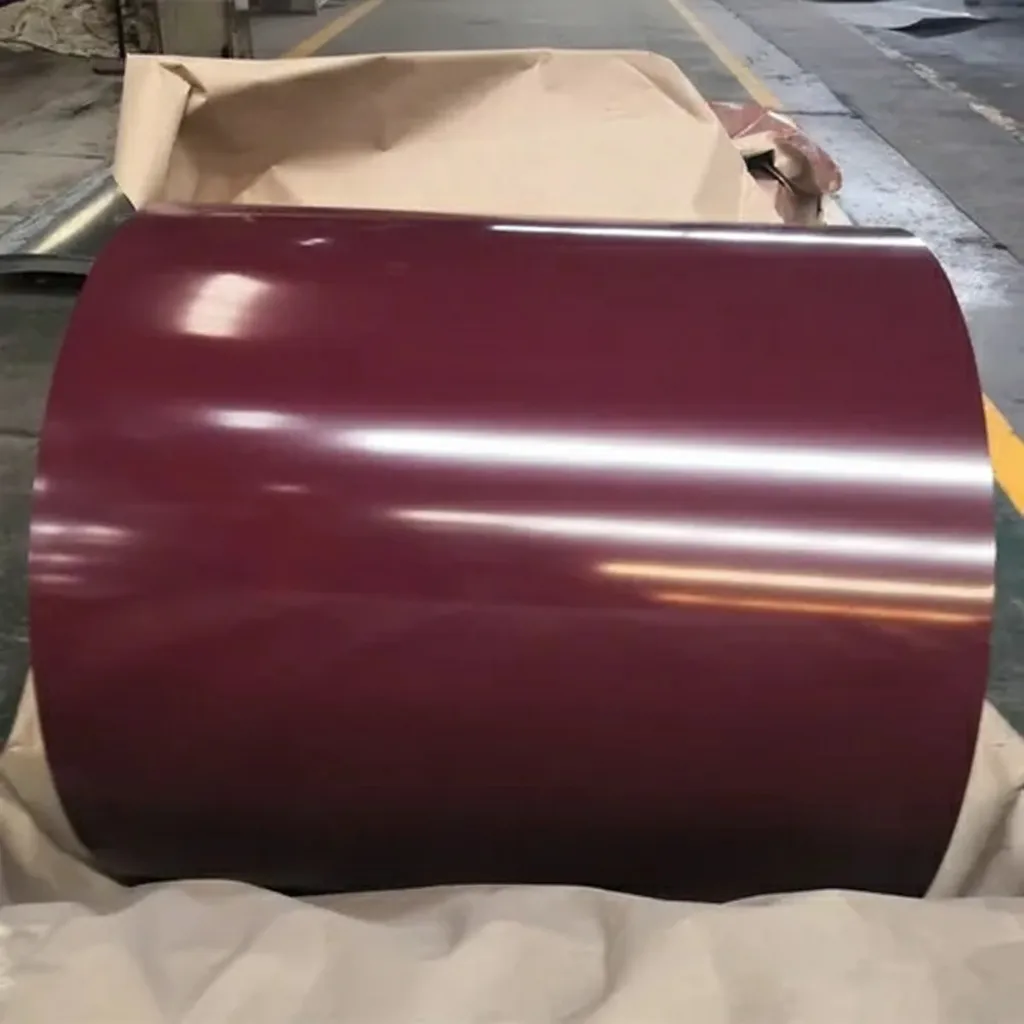

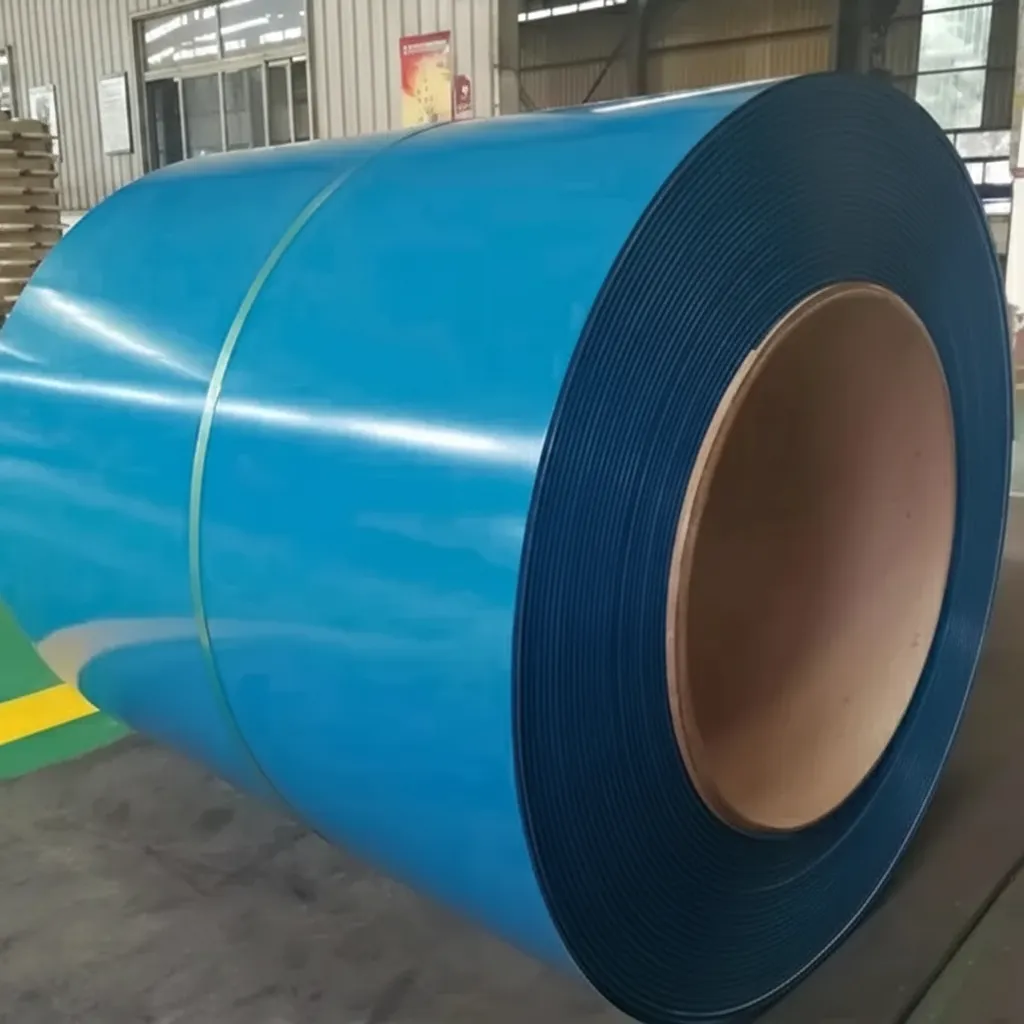

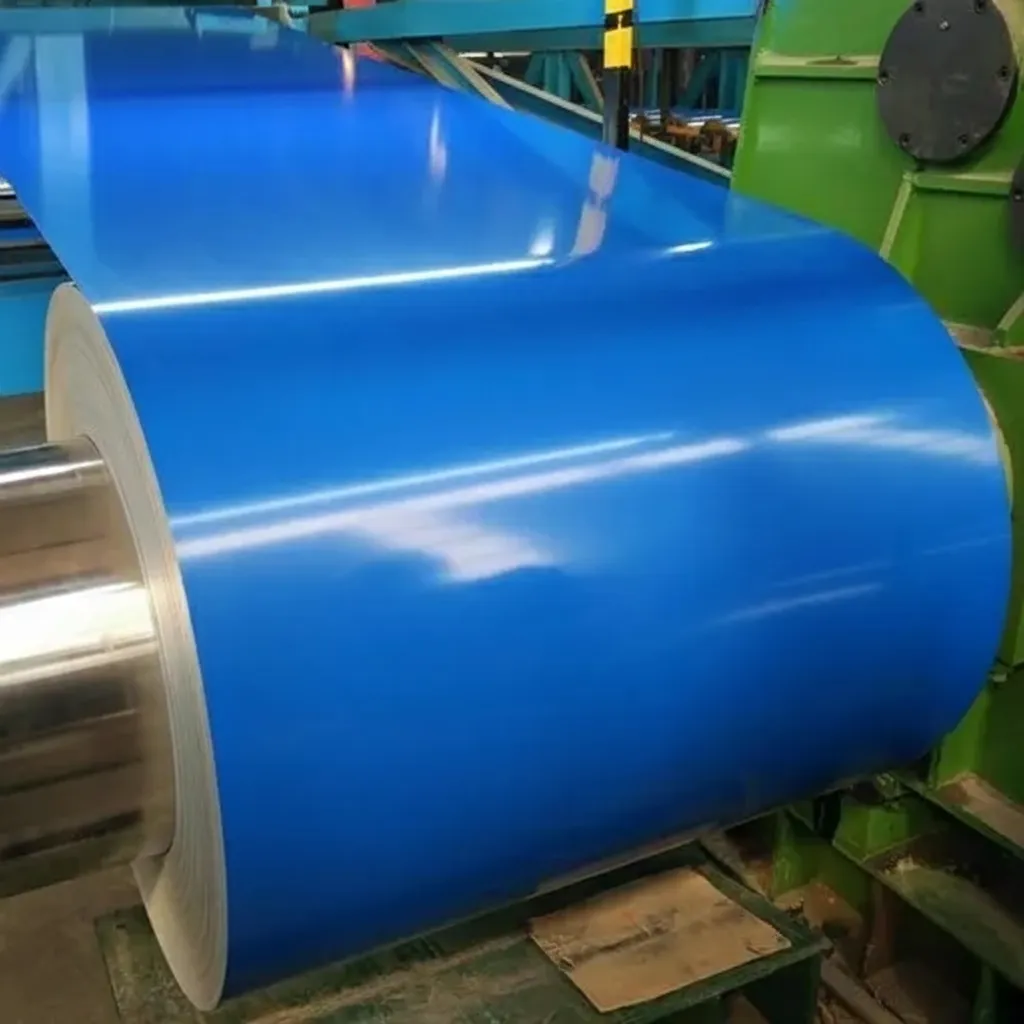

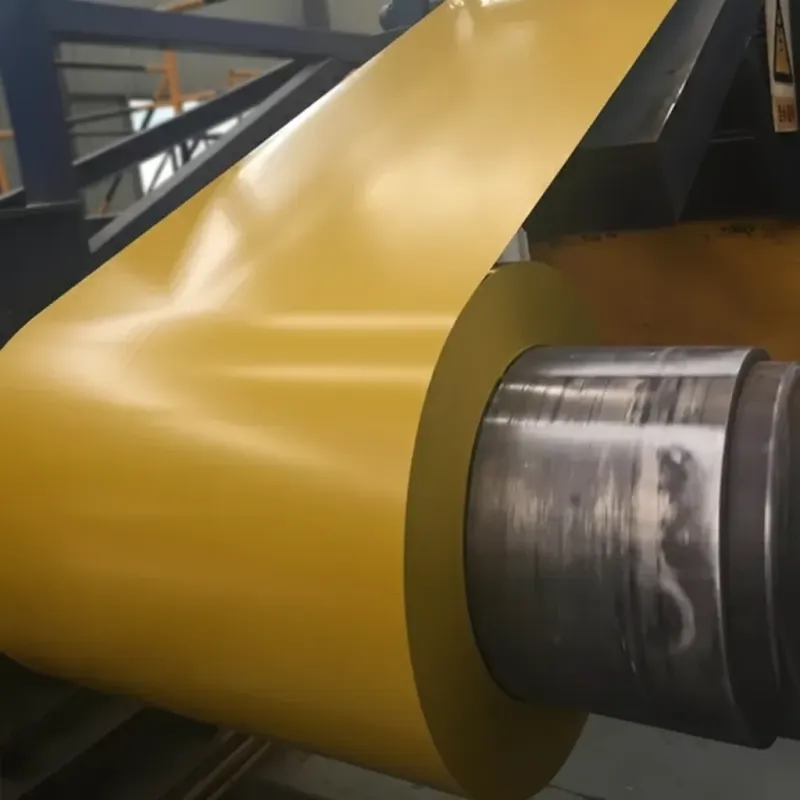

| Product Name | Export Grade Color Coated Steel Coil | Pre-painted galvanized / galvalume steel coil for international markets |
| Material Grade | TDC51D, TDC52D (EN 10169); CGCC, CGCD (JIS G3312); CS-B, FS-B (ASTM A755) | Equivalent to Q/BQB 440 (GB); substrate: DX51D+Z / DX51D+AZ |
| Standard Compliance | EN 10169, JIS G3312, ASTM A755, GB/T 12754 | Meets major international export standards for prepainted steel |
| Chemical Composition (Substrate) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Based on cold-rolled low-carbon steel substrate per EN 10169 / GB/T 12754 |
| Tensile Strength | 270–500 MPa | Varies by grade; TDC51D: ≥270 MPa; TDC52D: ≥330 MPa (EN 10169) |
| Yield Strength | 140–420 MPa | TDC51D: ≥140 MPa; TDC52D: ≥210 MPa; higher grades available on request |
| Elongation | ≥20% (A80mm) | TDC51D: ≥22%; TDC52D: ≥20%; ensures formability for roll forming and bending |
| Thickness Range | 0.14 mm – 1.50 mm | Total thickness including coating; base metal thickness 0.12–1.40 mm |
| Width Range | 600 mm – 1,500 mm | Custom slit widths available; standard export widths: 914 mm, 1,000 mm, 1,219 mm |
| Coating Type | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP | Top coat 5–25 μm; primer 5–7 μm; back coat 5–15 μm; zinc base 60–275 g/m² |
| Surface Finish | Smooth, embossed, matte, high-gloss | RAL / Pantone color matching available; 60° gloss range 10–90 GU |
| Hardness (Pencil) | ≥ 2H (top coat) | Per ASTM D3363; ensures scratch resistance during handling and installation |
| Application | Roofing, wall cladding, sandwich panels, home appliances, garage doors, shutters | Widely used in construction, automotive interiors, and household appliance industries |
| Certification | ISO 9001:2015, SGS, BV, CE, RoHS compliant | Mill test certificate (MTC) per EN 10204 3.1 provided with each shipment |
| Packaging | Eye-to-sky or eye-to-wall coil; inner diameter 508 mm / 610 mm | Wrapped with waterproof paper + steel strip banding; suitable for sea freight export |
| MOQ | 25 MT per order | Mixed specifications accepted; full container load (FCL) preferred for export |
Initial Documentation Gap – Resolved Promptly by the Team
We ordered 40 MT of 0.45mm PPGL AZ70 with PE topcoat for a school refurbishment project requiring full EN 10169 third-party certification. On arrival, the inspection report referenced an older standard revision that our client's engineer flagged as non-compliant. This caused a two-week delay while updated documentation was issued. To their credit, the supplier acted quickly once we raised the issue — the correct certificates arrived within three business days and the project proceeded without further problems. Coating quality itself was fine; yield strength and corrosion resistance met spec. I would use them again but will confirm documentation requirements in writing upfront.
