| Property | Parameter | Description |
|---|---|---|

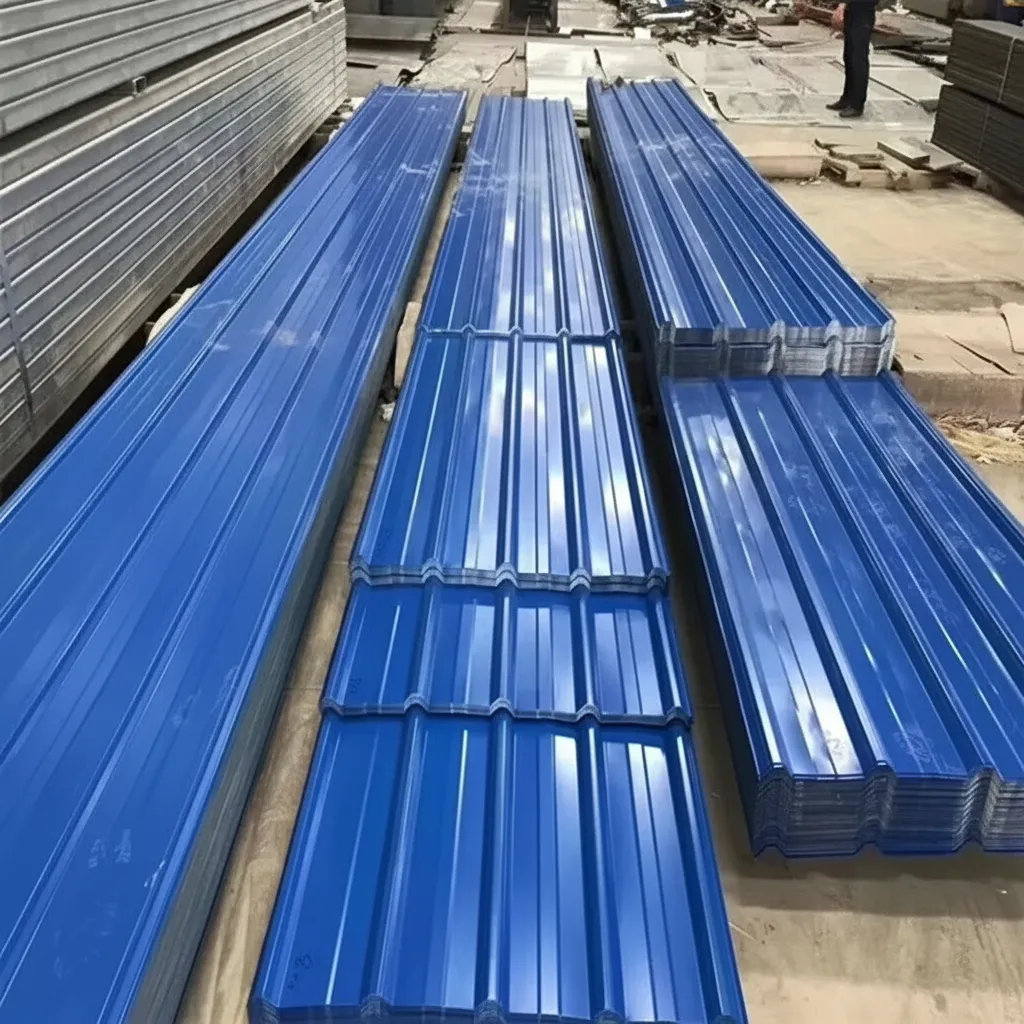

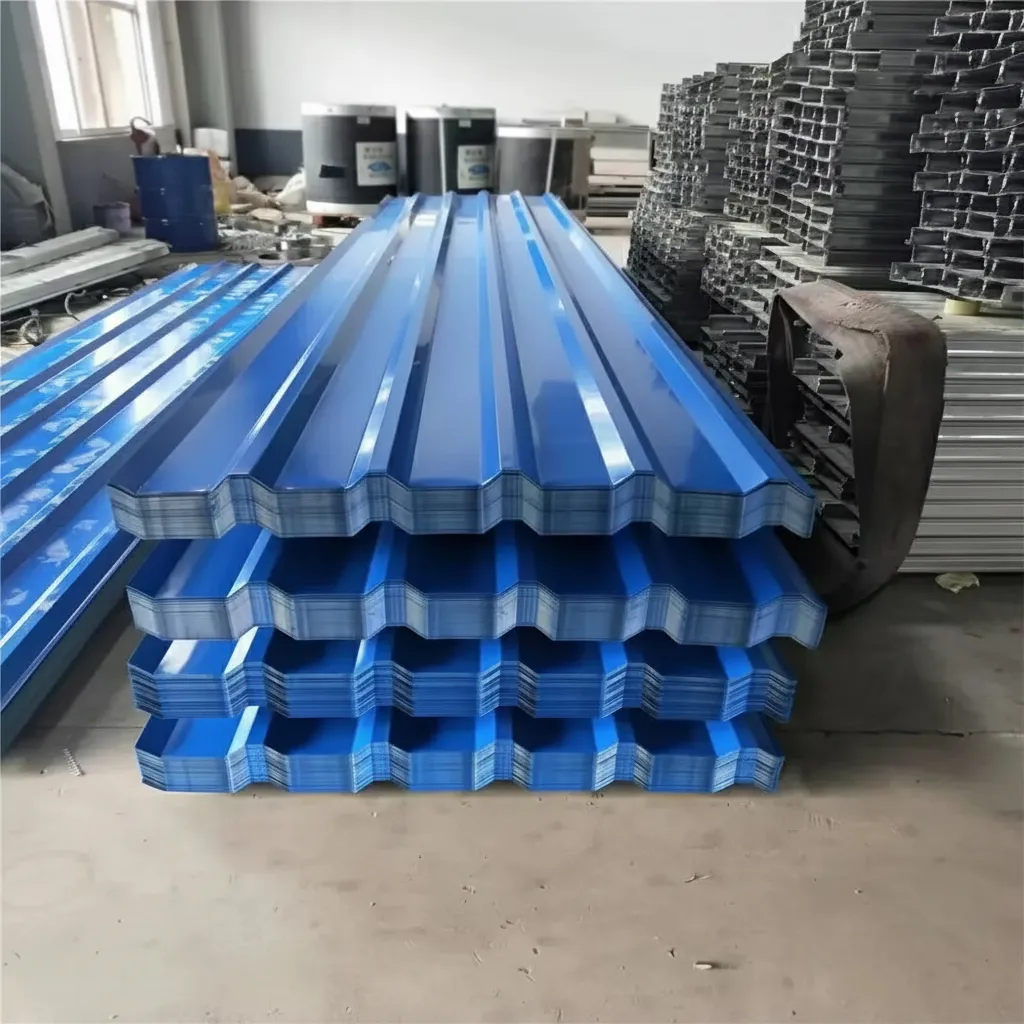

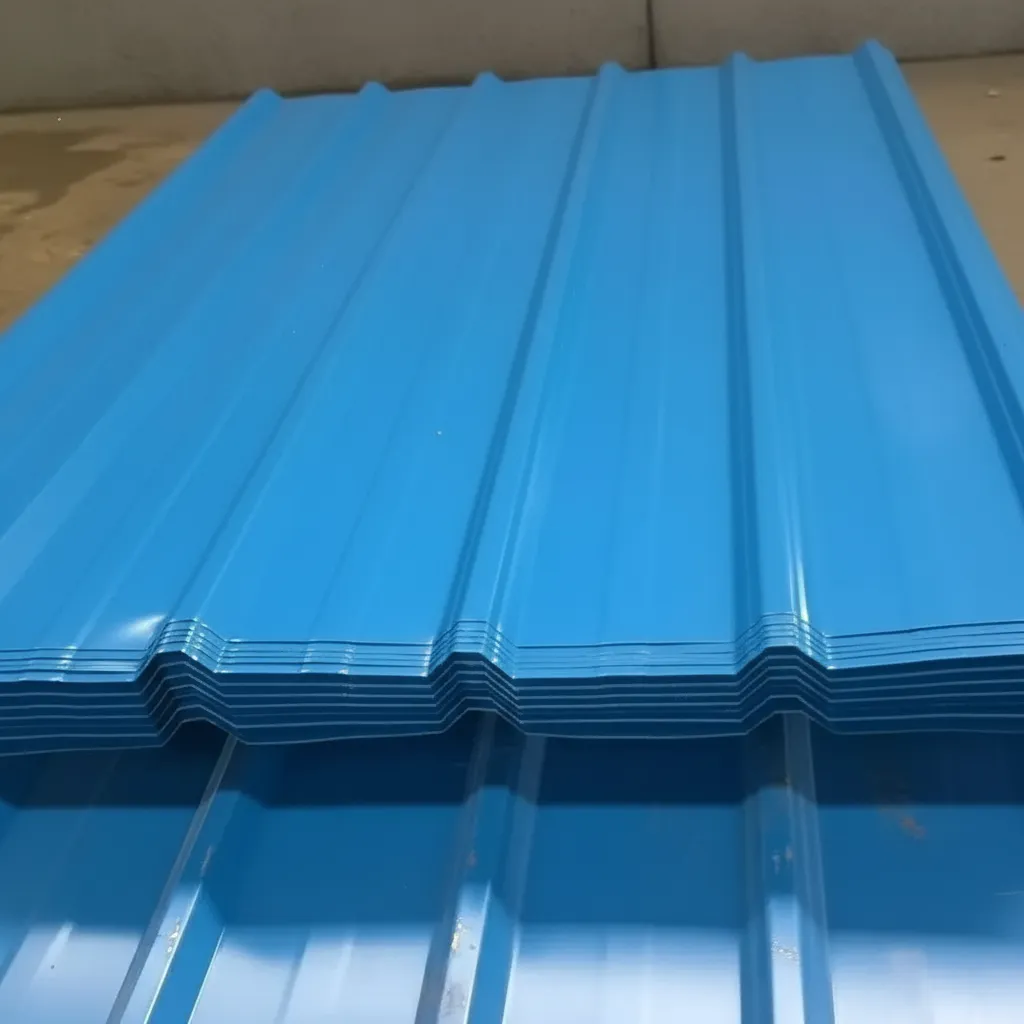

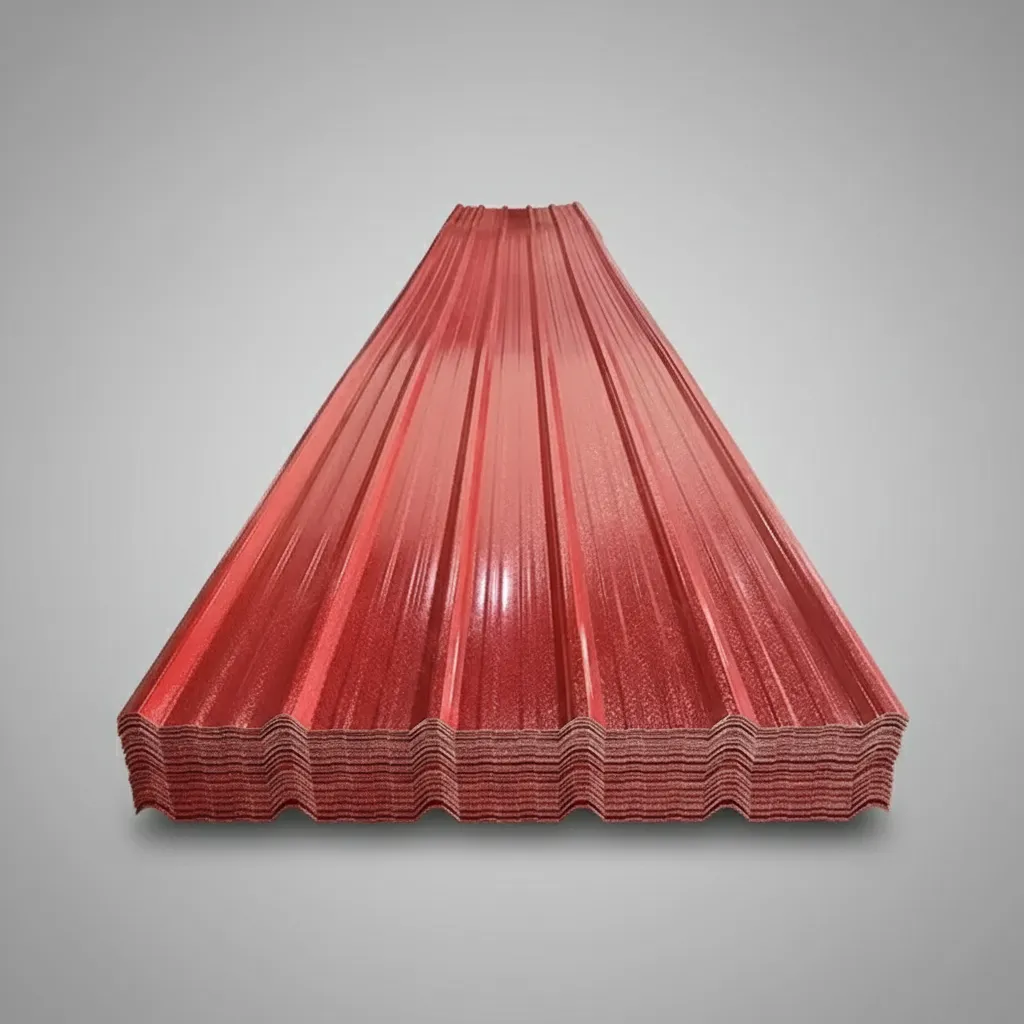

| Product Name | PPGI Color Coated Sheet | Pre-Painted Galvanized Iron / Steel Sheet, factory direct supply |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD | Equivalent to ASTM A653 CS/FS, EN 10346 DX51D+Z, JIS G3302 SGCC |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | International standards for prepainted metallic-coated steel sheet |
| Chemical Composition (Base) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate for superior formability and coating adhesion |
| Zinc Coating Weight | Z60–Z275 (g/m²), AZ50–AZ150 (Galvalume) | Hot-dip galvanized or Galvalume substrate; double-side coating per EN 10346 |
| Paint Coating Type | PE (Polyester), PVDF, SMP, HDP, Epoxy | Top coat 5–25 µm; primer 5–7 µm; back coat 5–15 µm |
| Tensile Strength | 270–500 MPa | Per ASTM A755 / EN 10169; varies by base steel grade |
| Yield Strength | 140–420 MPa | DX51D: ≥140 MPa; DX52D: ≥220 MPa; DX53D: ≥180 MPa (EN 10346) |
| Elongation | ≥16%–36% | A80 per EN 10346; higher elongation grades suitable for deep drawing |
| Thickness Range | 0.14 mm – 1.50 mm | Base metal thickness; total thickness includes coating layers |
| Width Range | 600 mm – 1,250 mm | Slit coil or sheet; custom widths available upon request |
| Length / Coil Weight | Coil: 3–8 MT; Sheet: 1,000–6,000 mm | Standard coil ID 508/610 mm; cut-to-length sheets available |
| Surface Finish | Smooth, Embossed, Matte, High Gloss | RAL / Pantone custom color matching; pencil hardness ≥ 2H (PE coating) |
| Application | Roofing, wall cladding, home appliances, garage doors, sandwich panels, HVAC ducts | Widely used in construction, automotive, and household appliance industries |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Factory audit reports and mill test certificates (MTC) available |
| Packaging | Eye-to-sky or eye-to-wall coils; wooden pallet for sheets | Waterproof paper + steel strip strapping; seaworthy export packaging |
| MOQ | 25 MT per order | Mixed specifications accepted; spot stock available for small orders |
Initial Width Tolerance Issue – Resolved Satisfactorily
Our first order of 35 MT of PPGI at 0.6 mm, 1,000 mm slit width, Z120 coating for residential roofing in Queensland arrived with approximately 8% of coils measuring 1,008–1,012 mm, outside our ±5 mm tolerance requirement under AS 1397. We raised the issue immediately. The supplier acknowledged the variance, issued a partial credit, and the replacement coils in the follow-up shipment were precisely within tolerance. Communication throughout was professional. The underlying material quality was fine. I am cautiously optimistic about future orders.
