| Property | Parameter | Description |
|---|---|---|

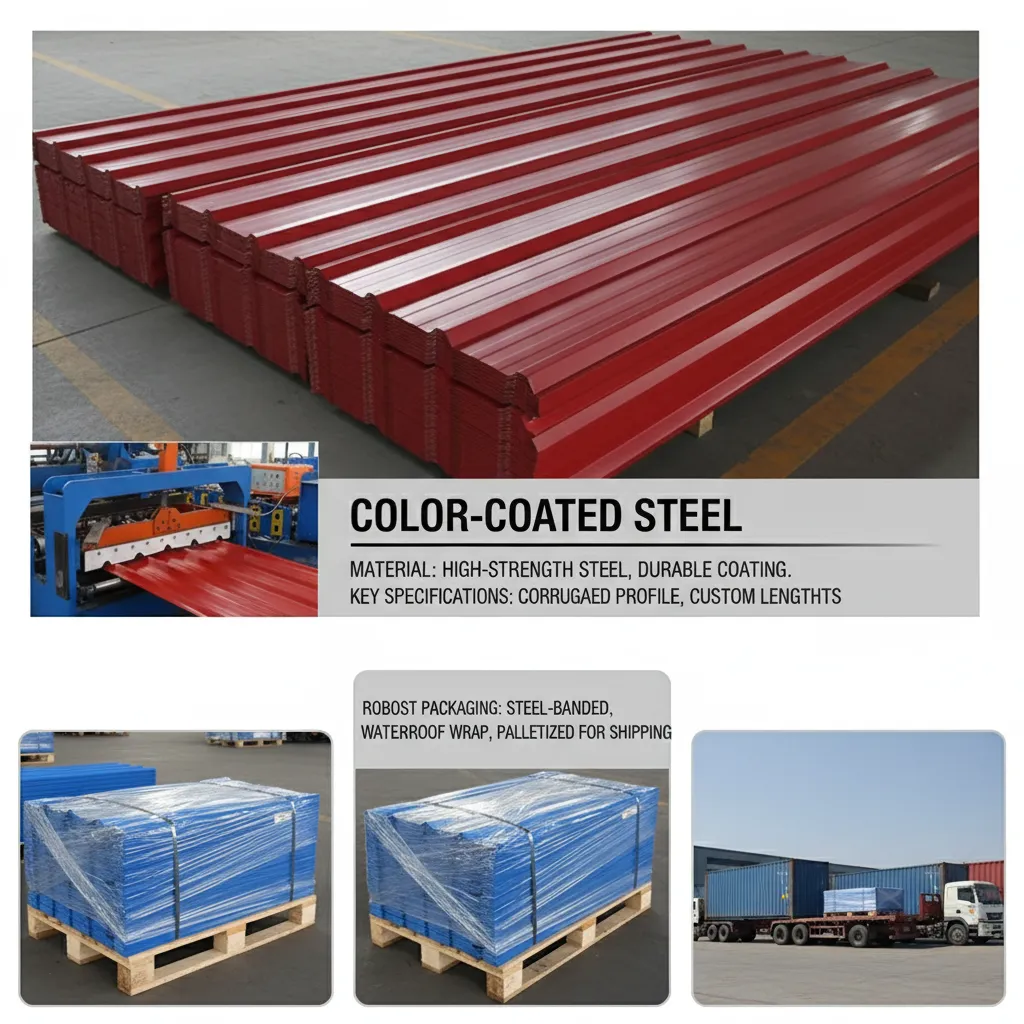

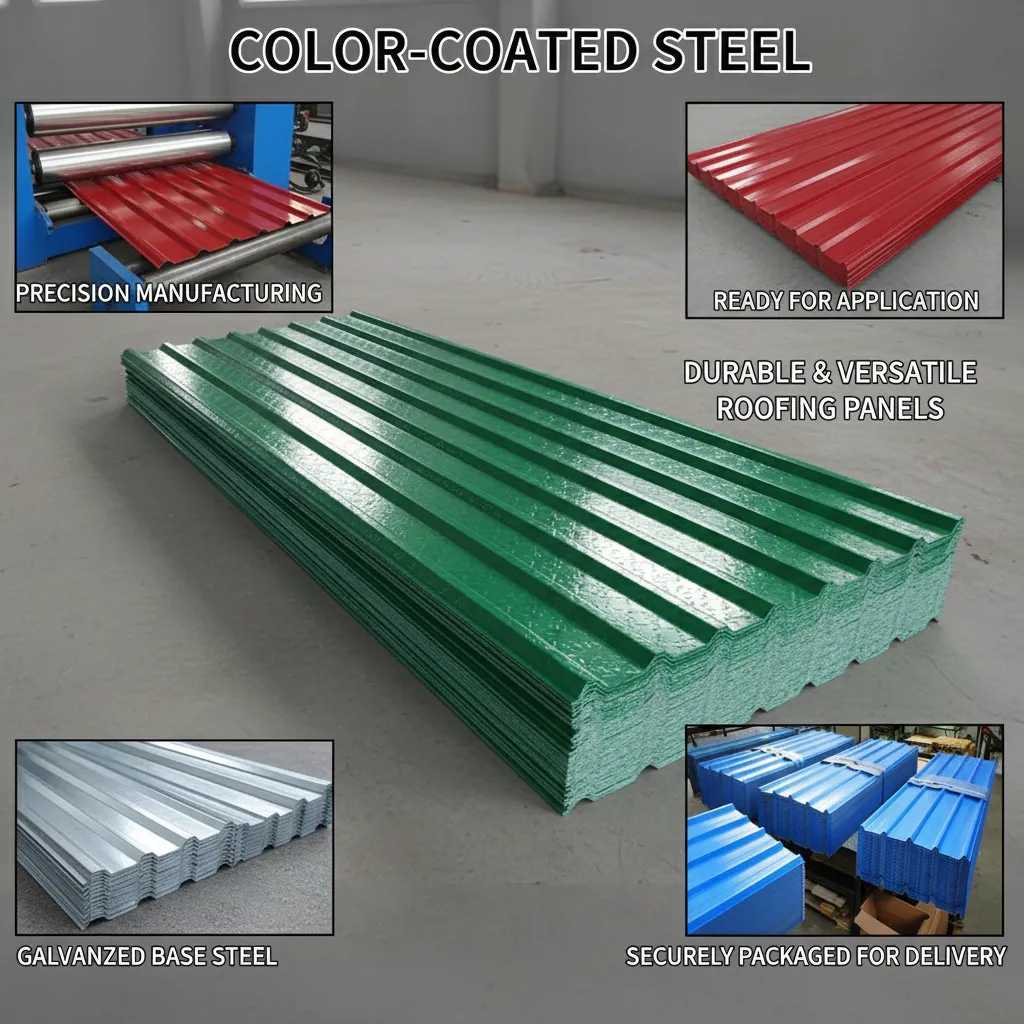

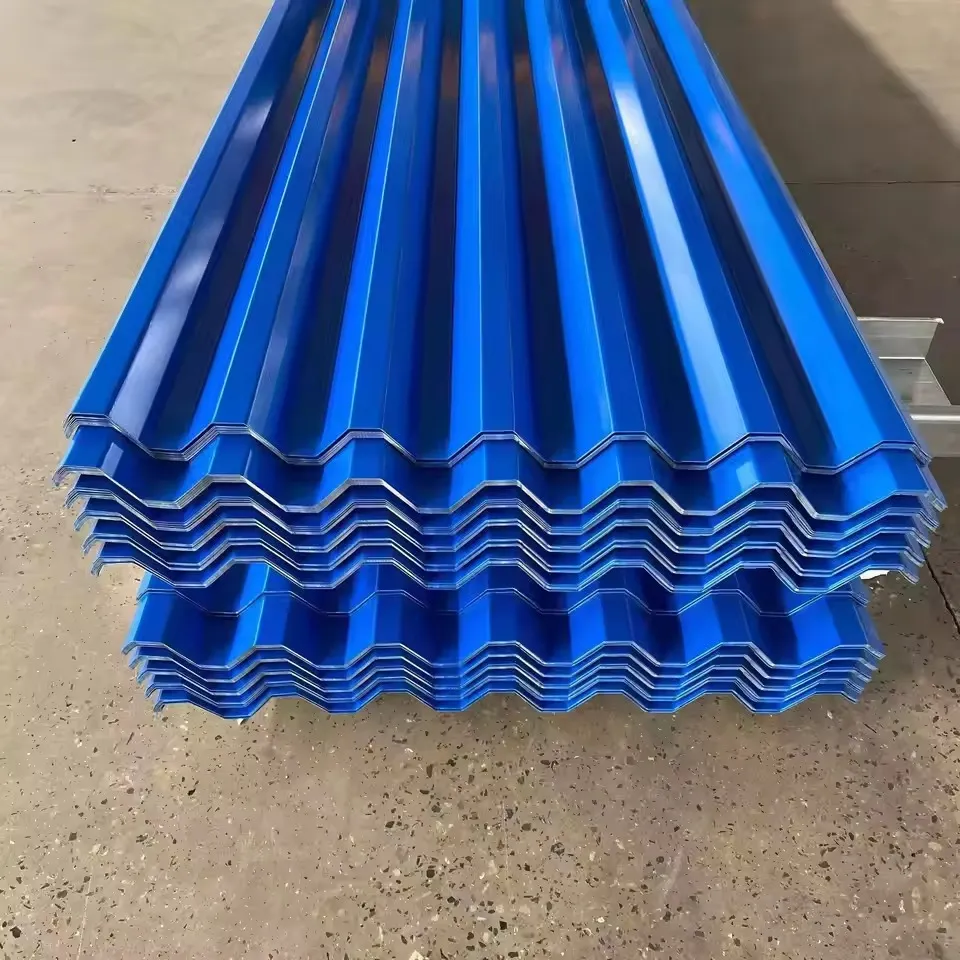

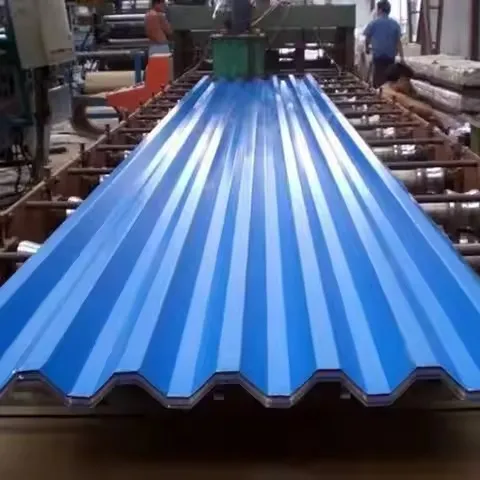

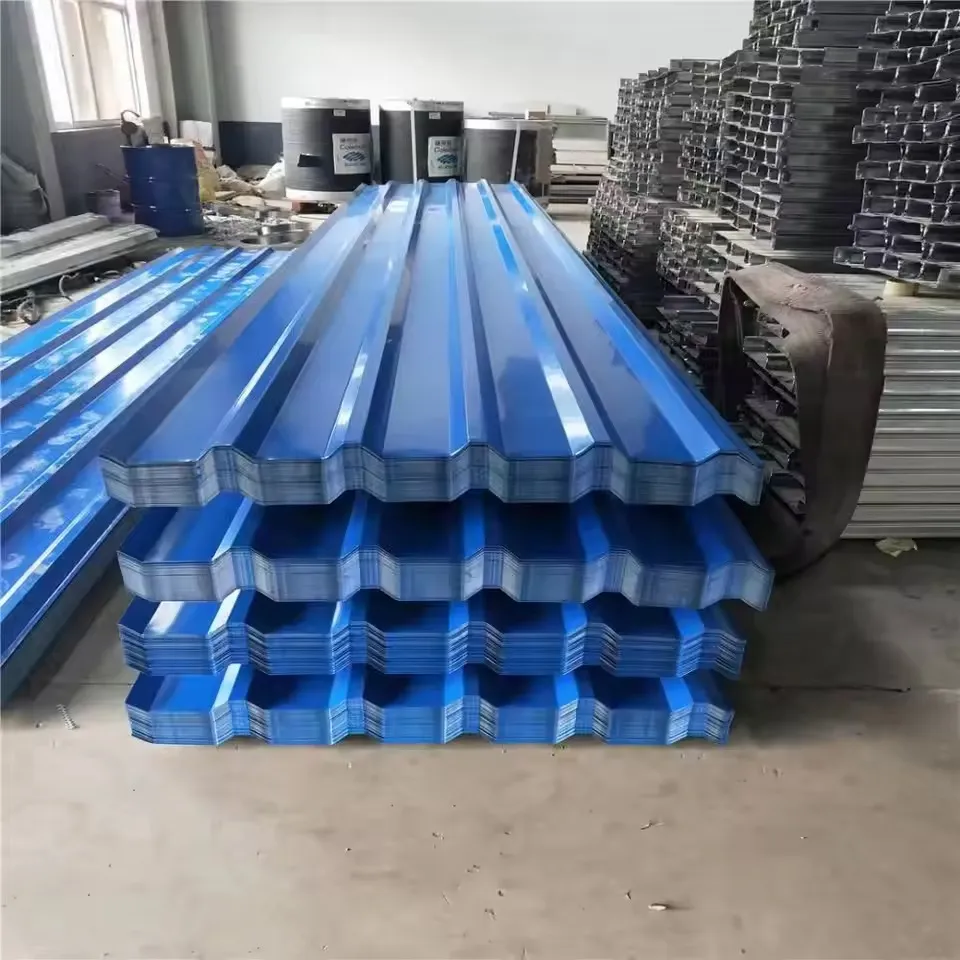

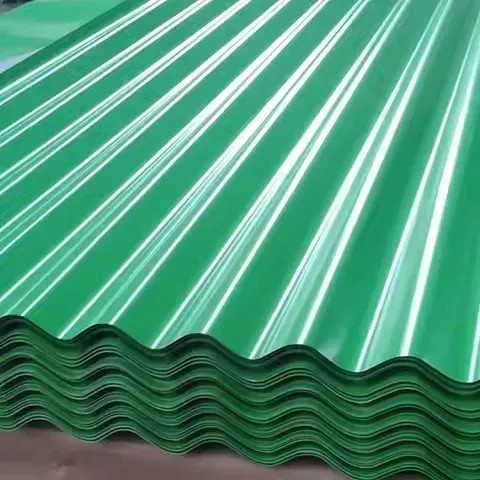

| Product Name | PPGI Galvanized Color Coated Steel Sheet | Pre-painted galvanized iron steel sheet with polymer coating on zinc-coated substrate |
| Material Grade | DX51D+Z / SGCC / CS Type B | Equivalent grades: EN 10346 DX51D+Z, JIS G3302 SGCC, ASTM A653 CS Type B |
| Standard Compliance | ASTM A755 / EN 10169 / JIS G3312 / GB/T 12754 | Meets international standards for continuously organic-coated flat-rolled steel |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base metal composition per EN 10346; zinc coating: Zn ≥99.5% |
| Tensile Strength | 270–500 MPa | Varies by grade; DX51D+Z: ≥270 MPa per EN 10346; SGCC: ≥270 MPa per JIS G3302 |
| Yield Strength | 140–420 MPa | DX51D+Z: 140–300 MPa; higher-strength grades available up to S550GD+Z |
| Elongation | ≥22% (A80mm) | Minimum elongation for DX51D+Z grade; ensures good formability and bending performance |
| Zinc Coating Weight | Z60–Z275 (60–275 g/m²) | Double-side coating mass per EN 10346; common grades Z100, Z140, Z180, Z275 |
| Paint Coating Thickness | Top coat: 15–25 µm; Back coat: 5–15 µm | Polyester (PE), High Durability Polyester (HDP), PVDF, or SMP coating systems available |
| Thickness Range | 0.14–1.50 mm | Base metal thickness excluding coating; standard tolerance per EN 10143 / ASTM A924 |
| Width Range | 600–1,500 mm | Slit coil or full-width coil; custom widths available upon request |
| Coil Inner Diameter | 508 mm / 610 mm | Standard inner diameter; coil weight typically 3–10 MT per coil |
| Surface Finish | Smooth / Embossed / Matte / Glossy | RAL color system available; gloss level 10–80 GU (60° geometry) per customer specification |
| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts, sandwich panels | Widely used in construction, automotive, and household appliance industries |
| Certification | ISO 9001, SGS, BV, CE | Third-party inspection available; mill test certificate (MTC) per EN 10204 3.1 supplied |
| Packaging | Eye-to-sky or eye-to-wall coil; waterproof paper + steel strip strapping | Seaworthy export packaging; palletized sheets available for cut-to-length products |
| MOQ | 25 MT per order | Mixed colors and specifications acceptable; sample order negotiable |
Initial coil width variance issue — resolved satisfactorily
Our first order of 40 tons of PPGI at 0.45 mm, Z100 zinc coating, 1,000 mm coil width for industrial roofing had a variance issue: three coils measured 985–992 mm rather than the specified 1,000 mm, falling outside EN 10169 tolerance. We raised this with the supplier immediately. They responded within 24 hours, issued a technical investigation report, and arranged credit for the affected coils. Subsequent replacement coils were within spec. The resolution process was professional. Quality control has been better on our second order placed last month.
