| Property | Parameter | Description |
|---|---|---|

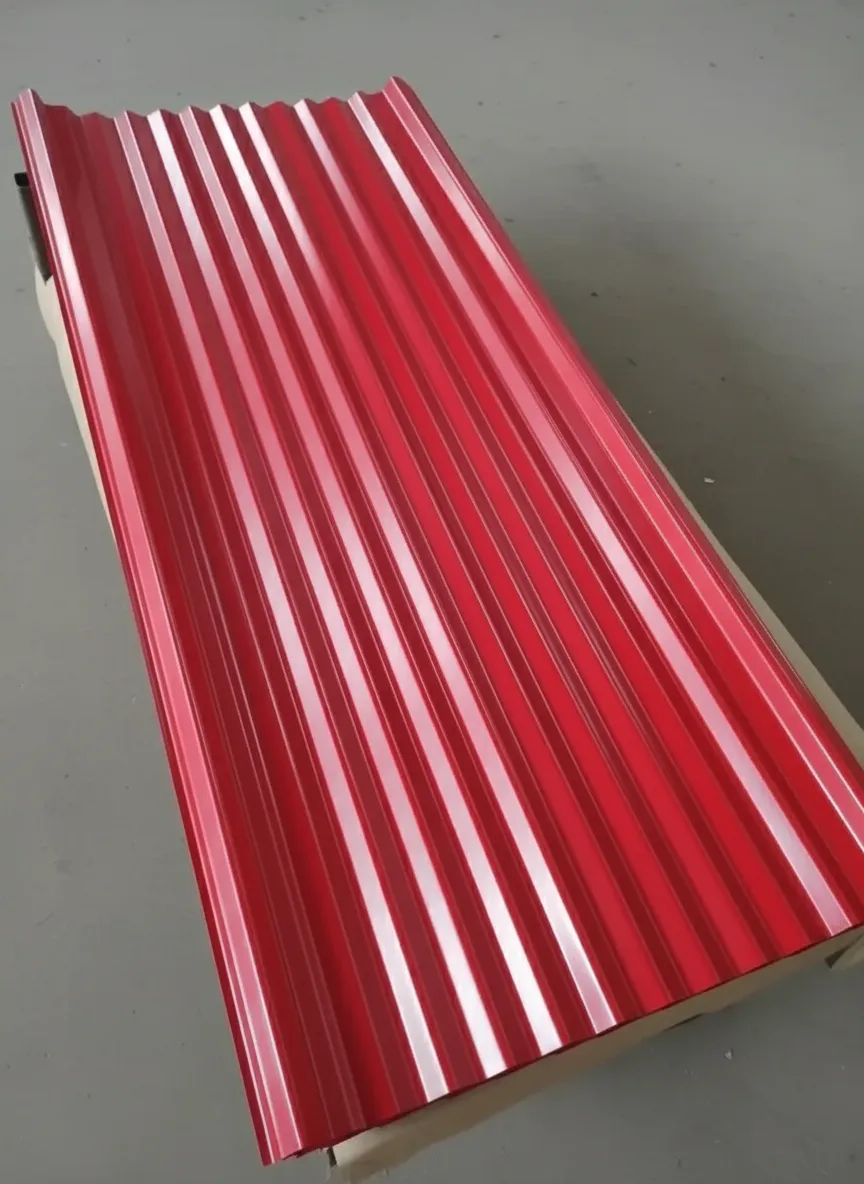

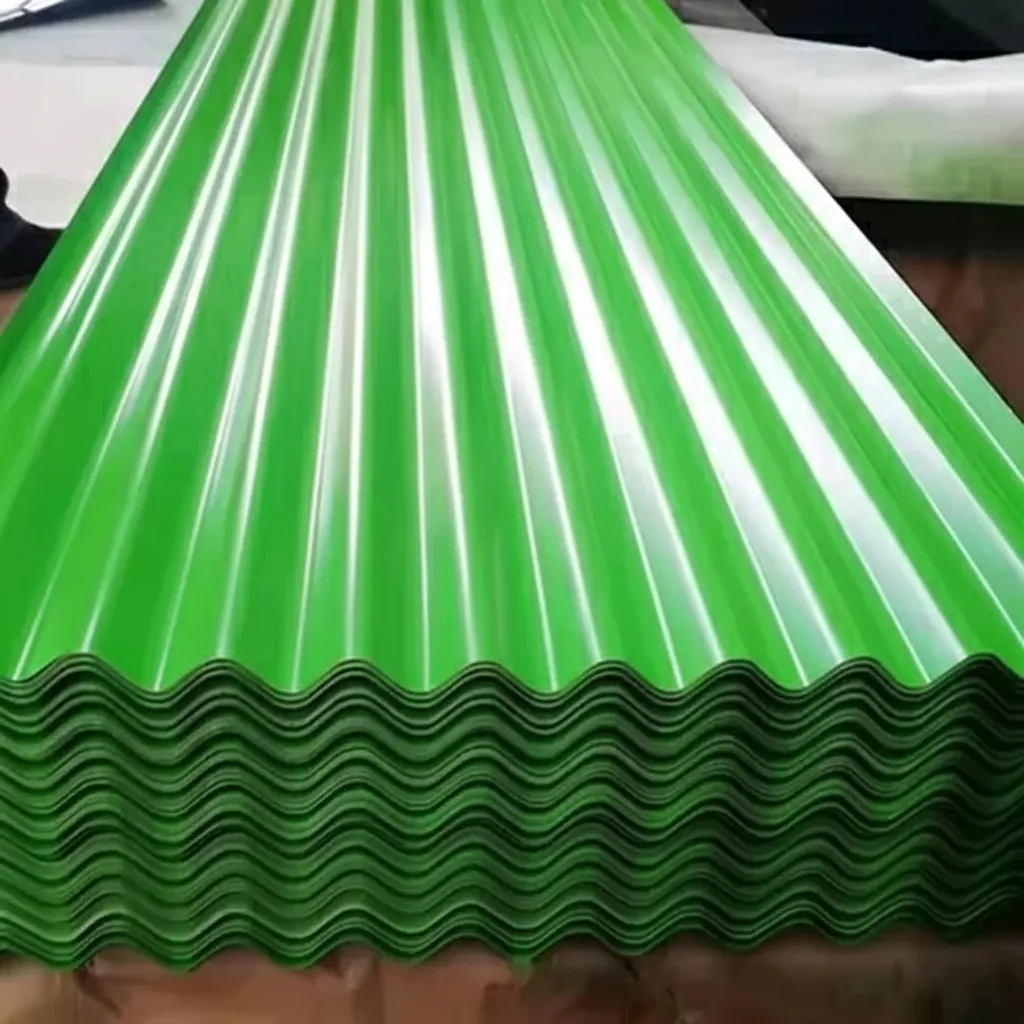

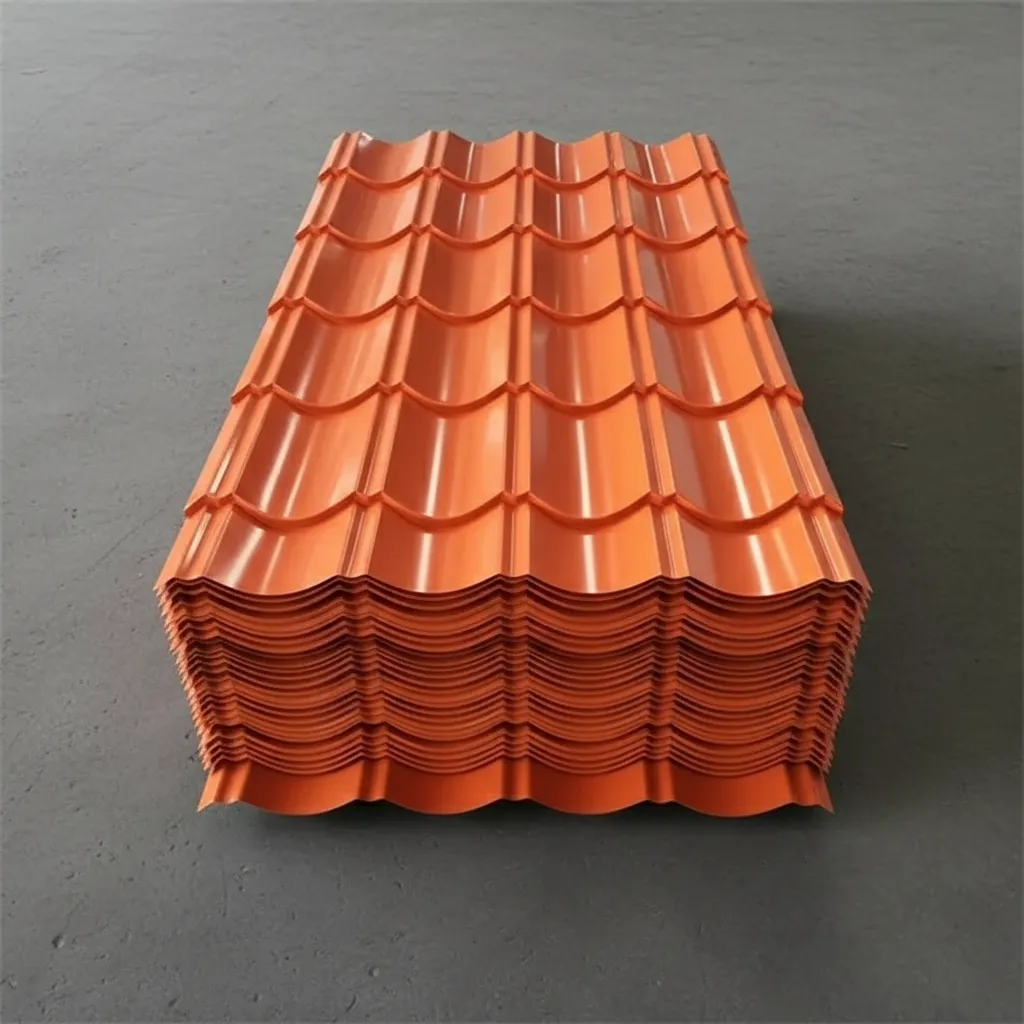

| Product Name | Galvanized Color Coated Steel Sheet (PPGI) | Pre-Painted Galvanized Iron steel sheet with polymer coating on zinc-coated substrate |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD / CS-B, FS-B | Equivalent grades: EN 10346 / JIS G3302 / ASTM A653; base metal is hot-dip galvanized low carbon steel |
| Standard Compliance | ASTM A755M, EN 10169, JIS G3312, GB/T 12754 | Covers mechanical properties, coating adhesion, color uniformity, and corrosion resistance requirements |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low carbon steel chemistry ensuring good formability and paintability of the substrate |
| Zinc Coating Mass | Z60–Z275 (60–275 g/m²) / AZ50–AZ150 | Hot-dip galvanized coating per ASTM A653 / EN 10346; heavier coating improves corrosion resistance |
| Paint Coating Type | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP | Top coat 15–25 µm; primer 5–7 µm; back coat 7–12 µm; PVDF offers superior UV and weather resistance |
| Tensile Strength | 270–500 MPa | Per ASTM A755M / EN 10169; varies by base steel grade (DX51D: ≥270 MPa, DX52D: ≥270 MPa) |
| Yield Strength | 140–420 MPa | DX51D: 140–300 MPa; DX52D: 140–300 MPa; DX53D: 140–260 MPa per EN 10346 |
| Elongation | ≥16%–36% | DX51D: ≥16%; DX52D: ≥26%; DX53D: ≥36% (A80mm); higher elongation for deep drawing applications |
| Thickness Range | 0.14–1.50 mm (base metal) | Total thickness including coating; common commercial thickness 0.20–0.80 mm for roofing and cladding |
| Width Range | 600–1,250 mm | Standard coil width; slit coils and custom widths available upon request |
| Coil / Sheet Length | Coil: OD 508–1,200 mm; Sheet: 1,000–6,000 mm | Inner diameter 508 mm or 610 mm; coil weight 3–10 MT; flat sheets cut to specified length |

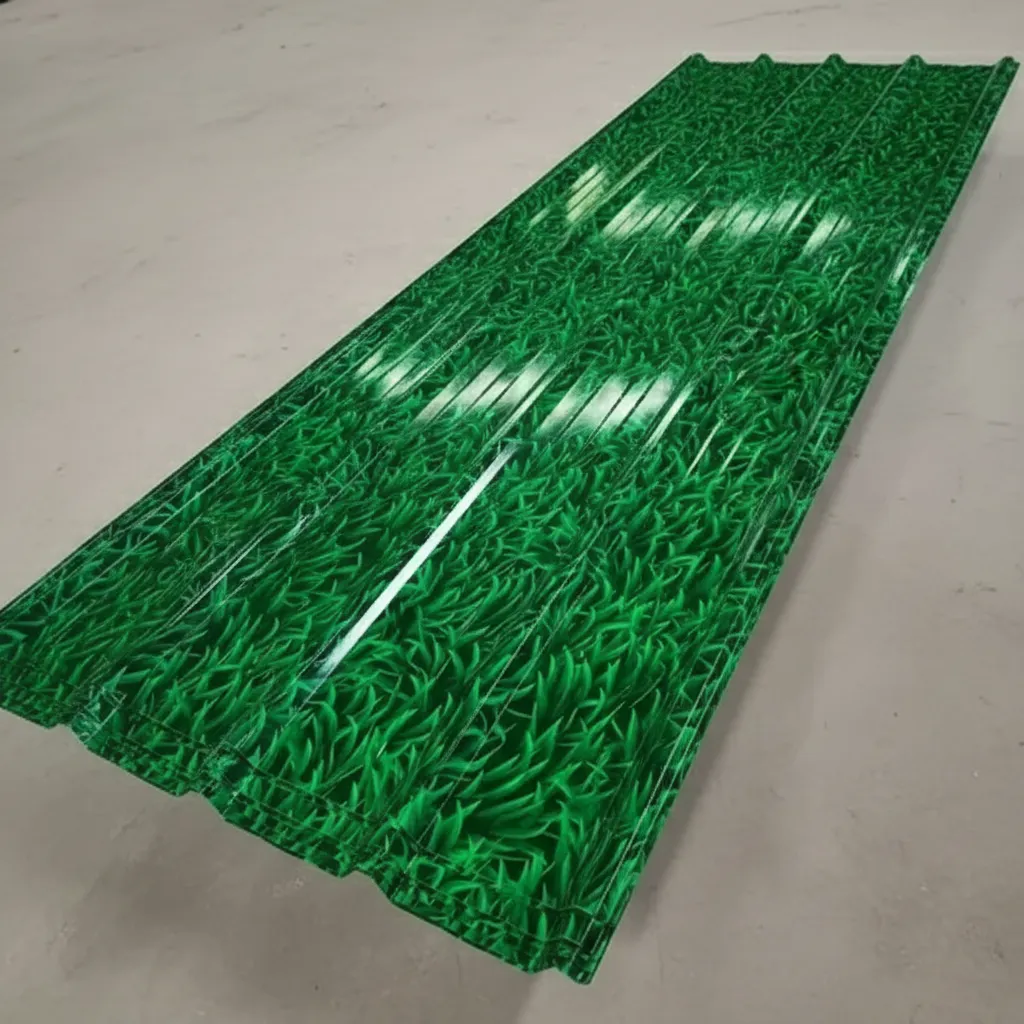

| Surface Finish | Smooth, embossed, matte, high-gloss, stone/wood pattern | RAL color system available; 60° gloss value 10–85 GU; pencil hardness ≥2H; T-bend ≤2T |
| Application | Roofing, wall cladding, garage doors, home appliances, automotive parts, sandwich panels | Widely used in construction, household appliances, and light industry due to aesthetic and corrosion-resistant properties |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Third-party inspection available; RoHS compliance for appliance and export markets |
| Packaging | Coils wrapped in waterproof paper + steel strip banding; sheets in wooden pallets | Eye-to-sky or eye-to-wall stacking; moisture-proof inner wrapping; export seaworthy packaging standard |
| MOQ | 25 MT per order (coil); 5 MT (sheet) | Mixed colors and specifications accepted above MOQ; sample order available for quality verification |
Initial color mismatch resolved quickly — now satisfied
Our first order of 50 MT PPGI at 0.40mm, Z120, RAL 6029 showed a slight color deviation on approximately 3 MT of one coil — visibly off-shade against our approved sample under daylight conditions. We raised the issue immediately. The supplier's QC team responded within 24 hours, acknowledged the batch variance, and arranged a replacement shipment at no additional cost within 10 days. The replacement coils matched perfectly. The resolution process was handled professionally. We have since placed a follow-up order, cautiously, and quality control on that batch was tighter.
