| Property | Parameter | Description |
|---|---|---|

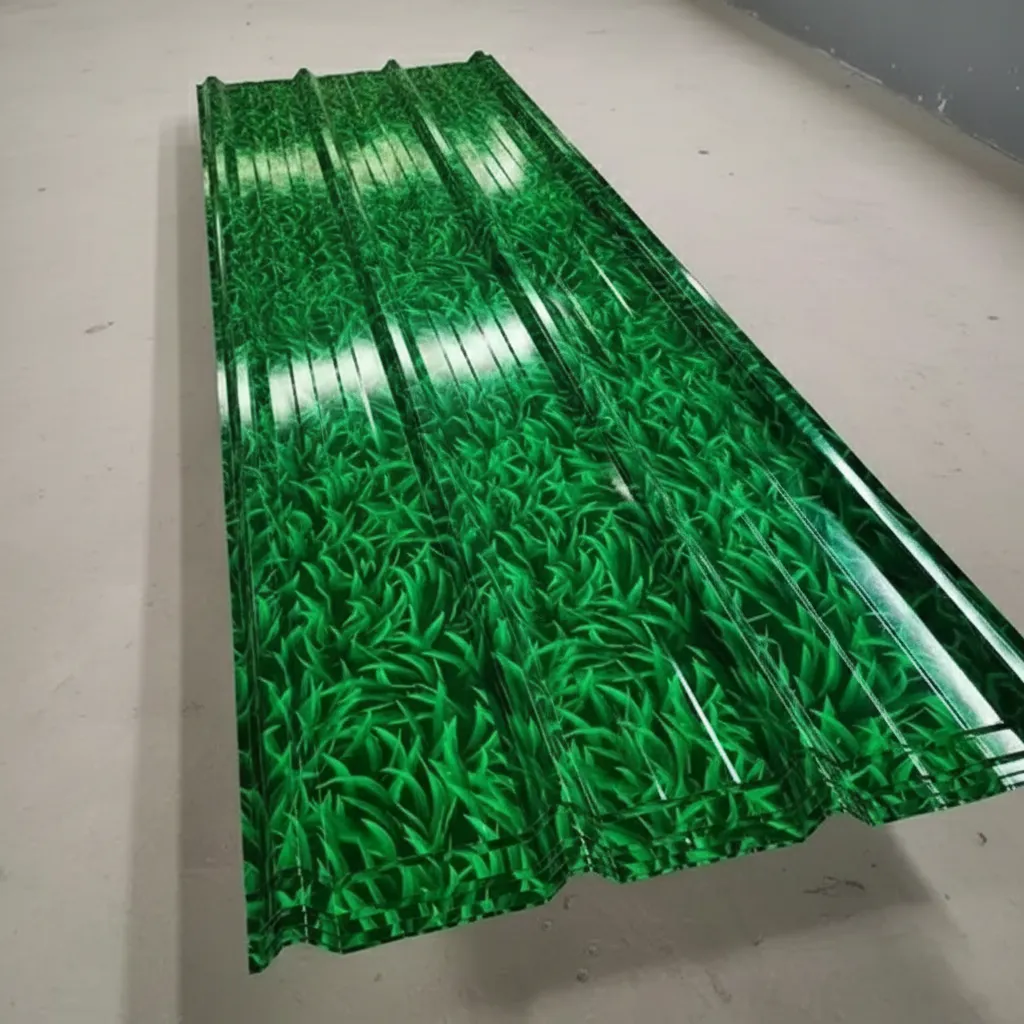

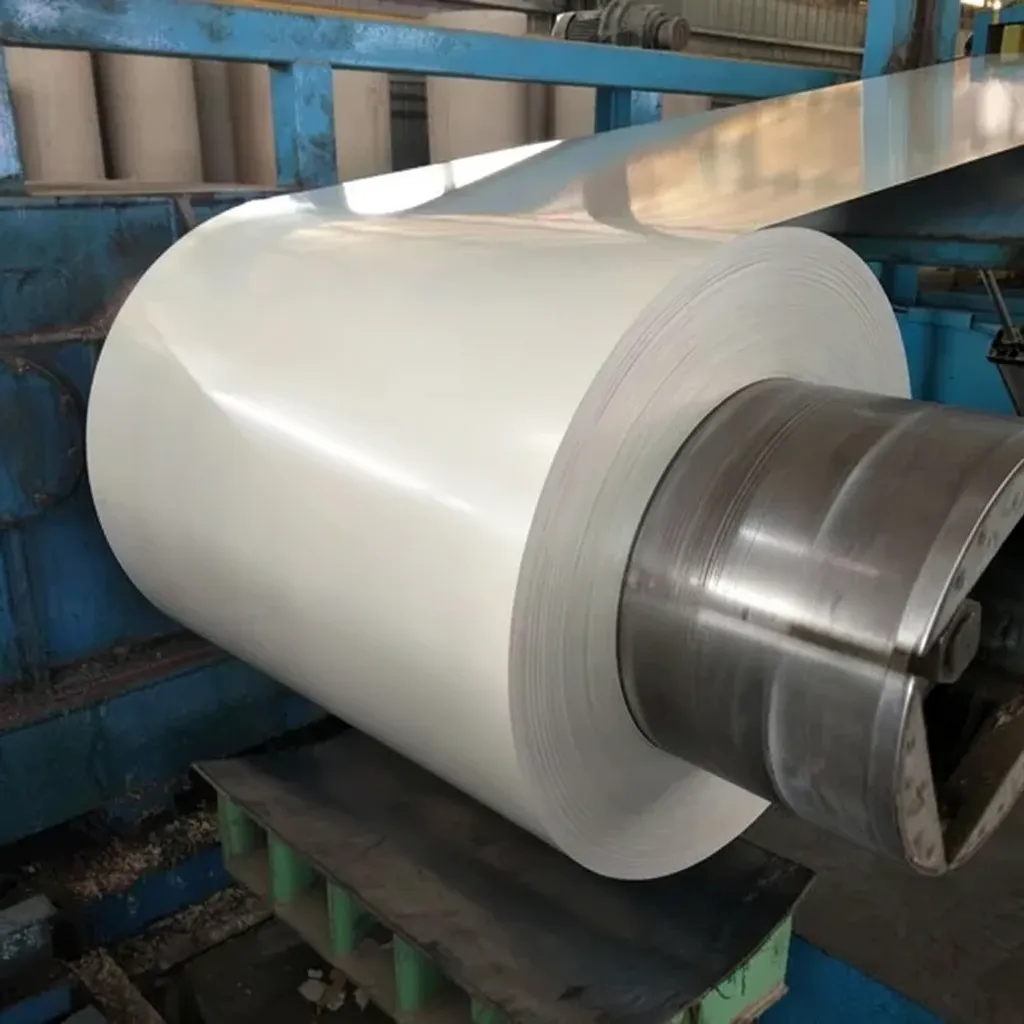

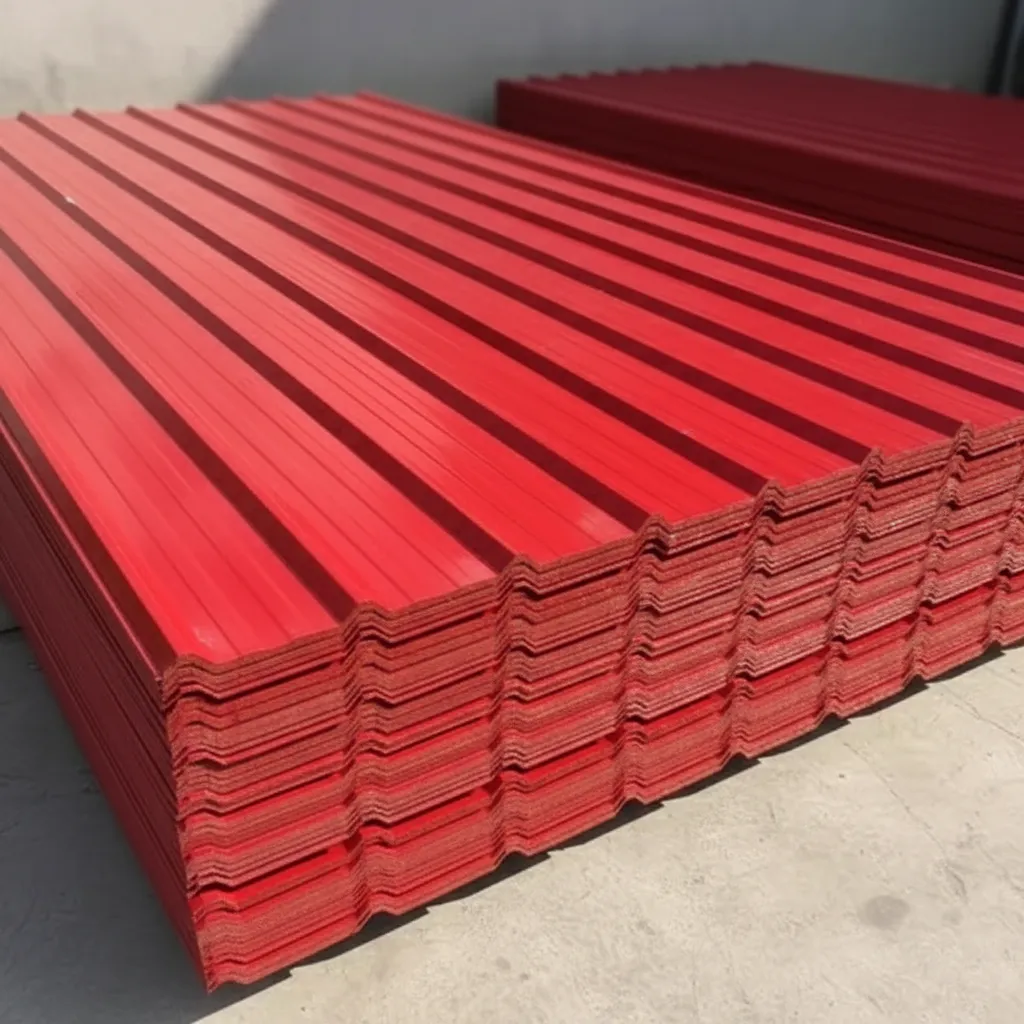

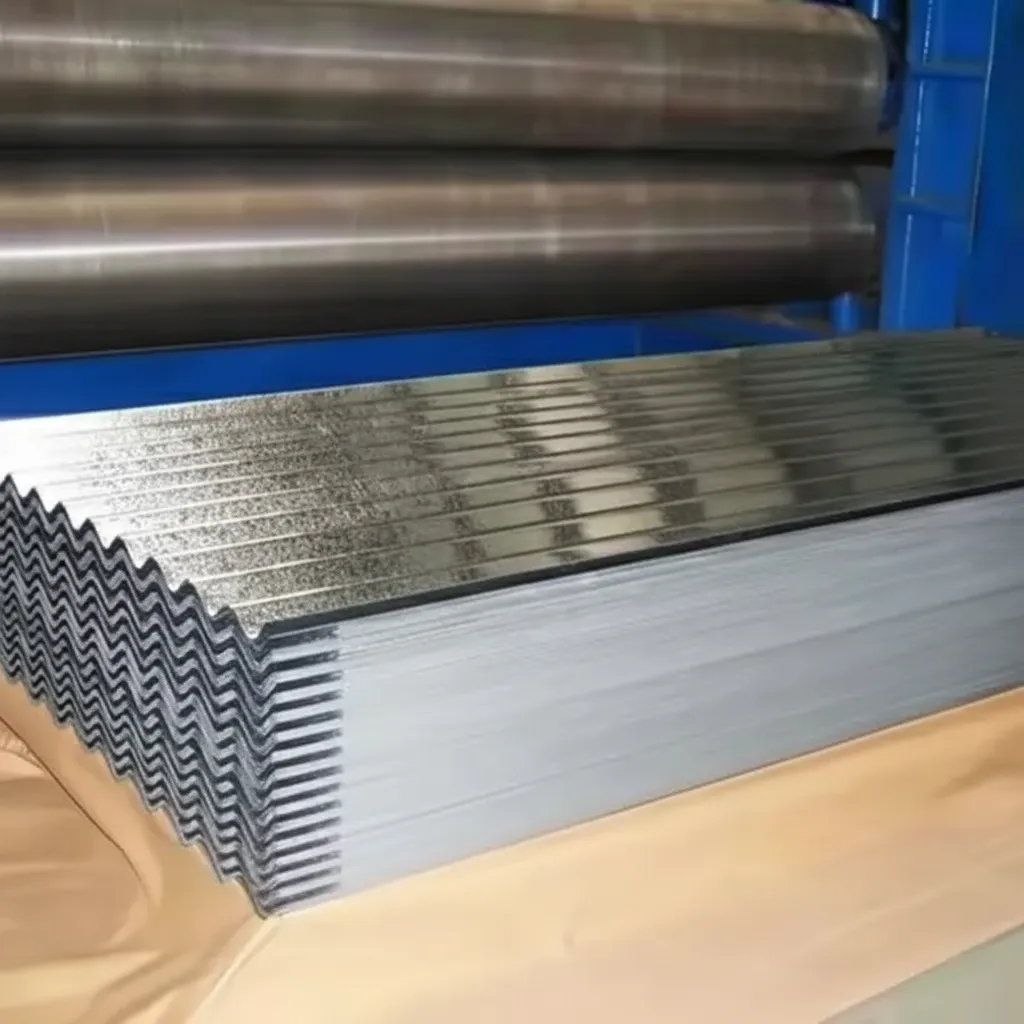

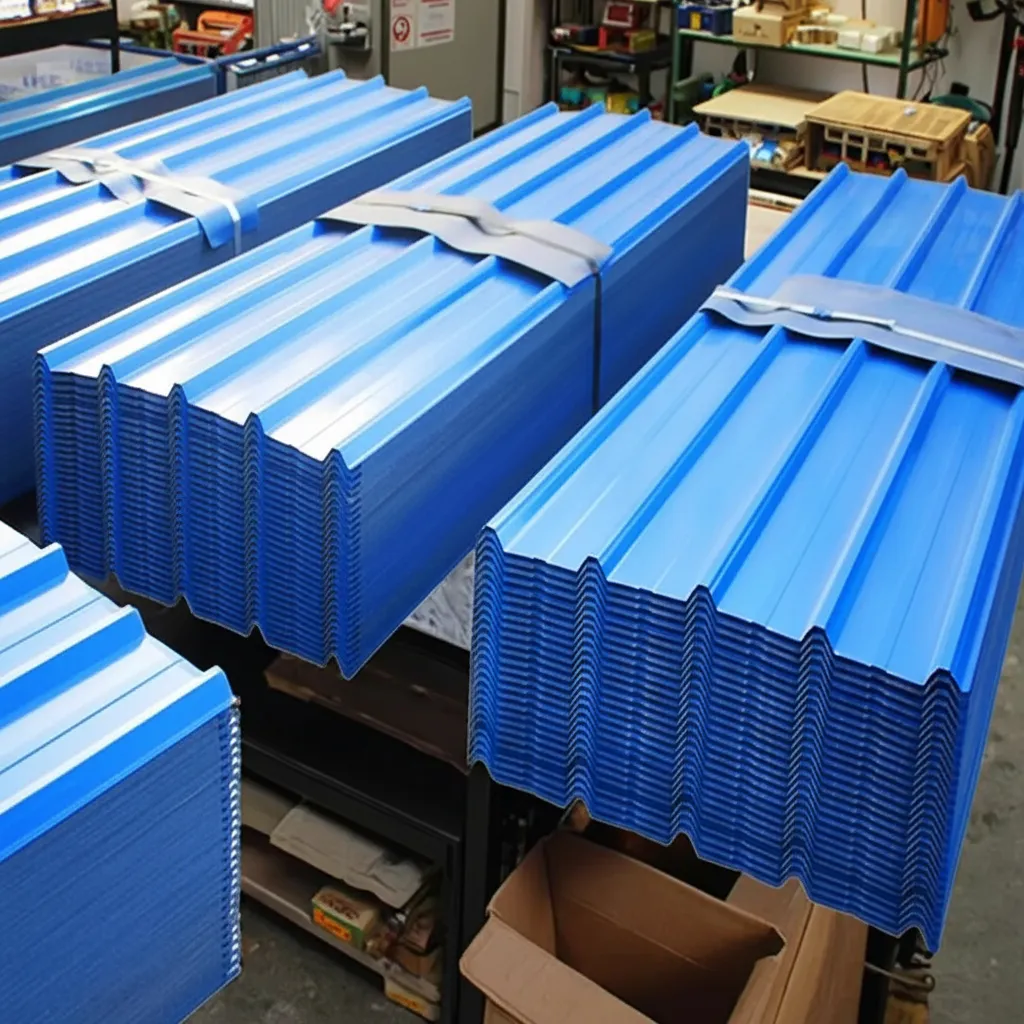

| Product Name | RAL Color PPGI Galvanized Steel Sheet | Pre-painted galvanized iron steel sheet with RAL standard color coating |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD / CS, FS, SS | Equivalent to EN 10346, JIS G3302, ASTM A653 base metal grades |
| Standard Compliance | EN 10169, ASTM A755, JIS G3312, GB/T 12754 | International standards for pre-painted flat-rolled steel products |
| Chemical Composition (Base) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Typical composition of DX51D galvanized base substrate |
| Zinc Coating Mass | Z60–Z275 (60–275 g/m²) | Double-side coating per EN 10346 / ASTM A653; AZ coating also available |
| Tensile Strength | 270–500 MPa | Per EN 10346 / ASTM A653; varies by grade (DX51D min. 270 MPa) |
| Yield Strength | 140–420 MPa | DX51D: 140–300 MPa; SS Grade 340: min. 340 MPa |
| Elongation | ≥ 22% (A80) | Longitudinal elongation per EN 10346; DX53D ≥ 30% for deep drawing |
| Paint Coating System | Top coat 15–25 µm (PE/PVDF/SMP/HDP); Primer 5–7 µm; Back coat 7–12 µm | Polyester (PE) standard; PVDF for high durability; SMP for weather resistance |
| RAL Color Options | Full RAL Classic & RAL Design range (e.g., RAL 9002, RAL 5015, RAL 3020) | Custom RAL color matching available; gloss level 10–80 GU (60°) |
| Thickness Range | 0.14–1.50 mm (base metal) | Total thickness including coating; tolerance per EN 10143 |
| Width Range | 600–1,500 mm | Coil or sheet form; slit-to-width service available |

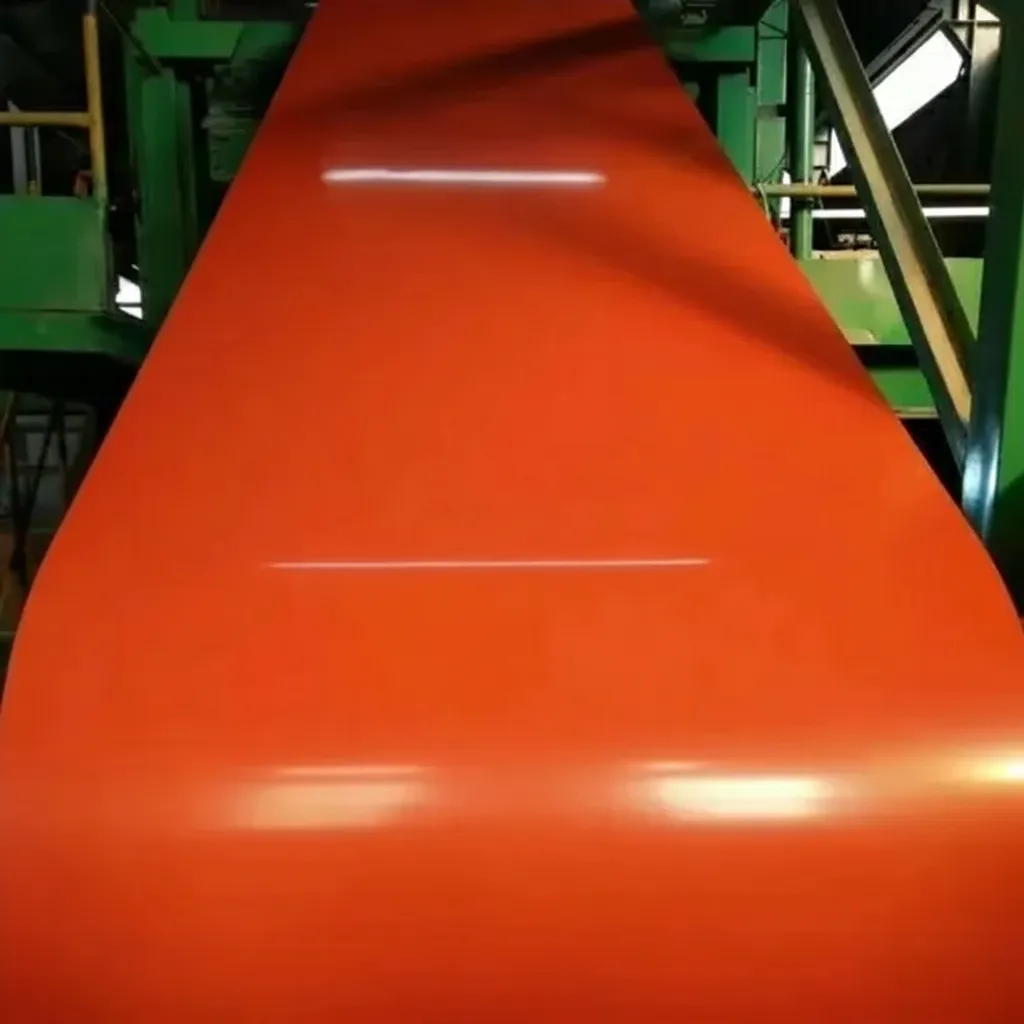

| Length / Coil Weight | Coil: 3–10 MT; Sheet: 1,000–6,000 mm | Inner diameter 508/610 mm; outer diameter ≤ 2,000 mm |
| Surface Finish | Regular spangle / zero spangle; smooth or embossed | Chromate-free passivation available; anti-fingerprint option |

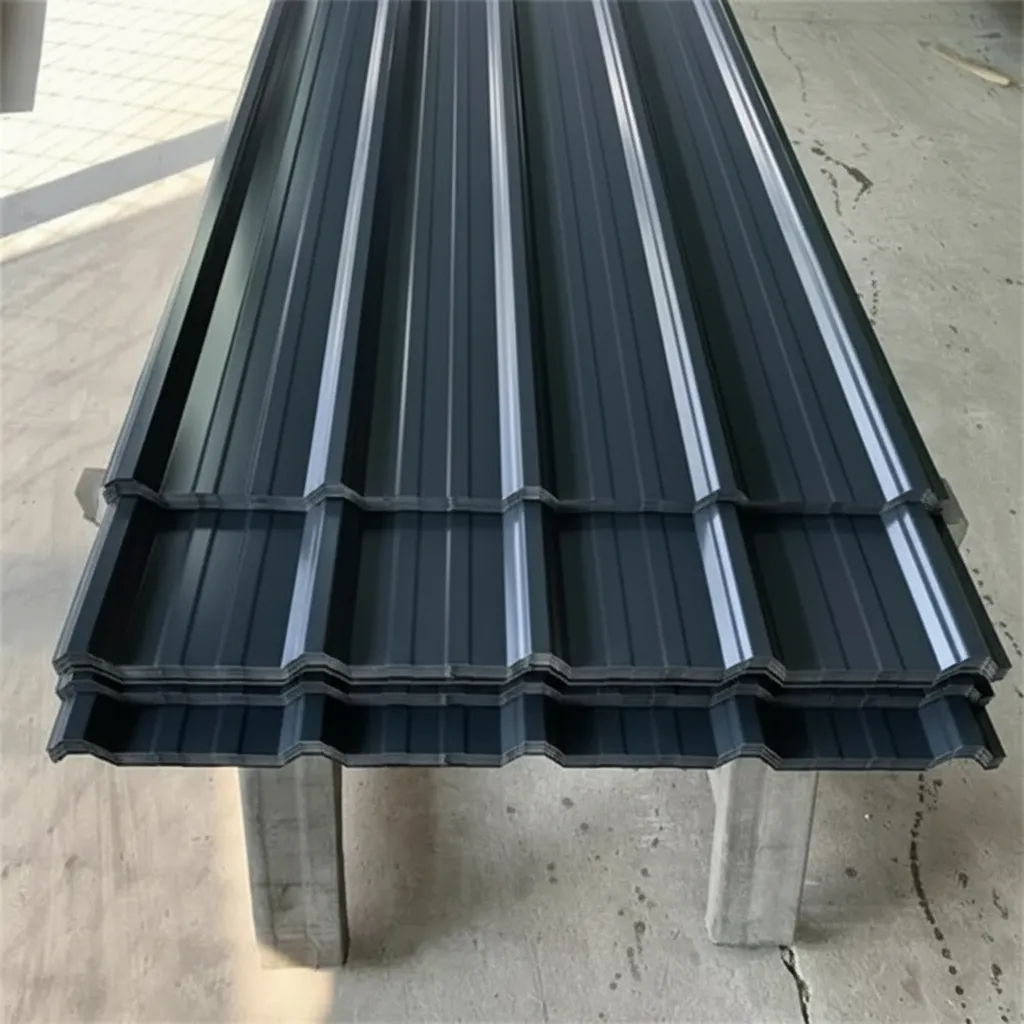

| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts, signage | Widely used in construction, automotive interiors, and industrial panels |
| Certification | ISO 9001, CE Marking, SGS, BV, RoHS Compliant | Mill test certificate (MTC) per EN 10204 3.1 available upon request |
| Packaging | Coils wrapped in waterproof paper + steel strip; sheets in wooden pallets | Sea-worthy export packaging; moisture-proof inner wrapping standard |
| MOQ | 5 MT per color/specification | Mixed container orders accepted; spot stock available for standard RAL colors |
Initial coil edge quality issue — supplier responded and resolved promptly
Our first order of 25 tons of 0.30 mm PPGI in RAL 1015 light ivory with Z100 coating showed minor edge waviness on approximately 15% of coils, which caused intermittent issues on our slitting line. We raised this with the technical team immediately. They acknowledged the issue, provided a root cause analysis within 48 hours attributing it to a tension setting variance, and arranged credit for the affected coils. Our second shipment of the same specification arrived with no edge defects. The responsiveness was professional. We will continue ordering but will request pre-shipment coil inspection going forward.
