| Property | Parameter | Description |
|---|---|---|

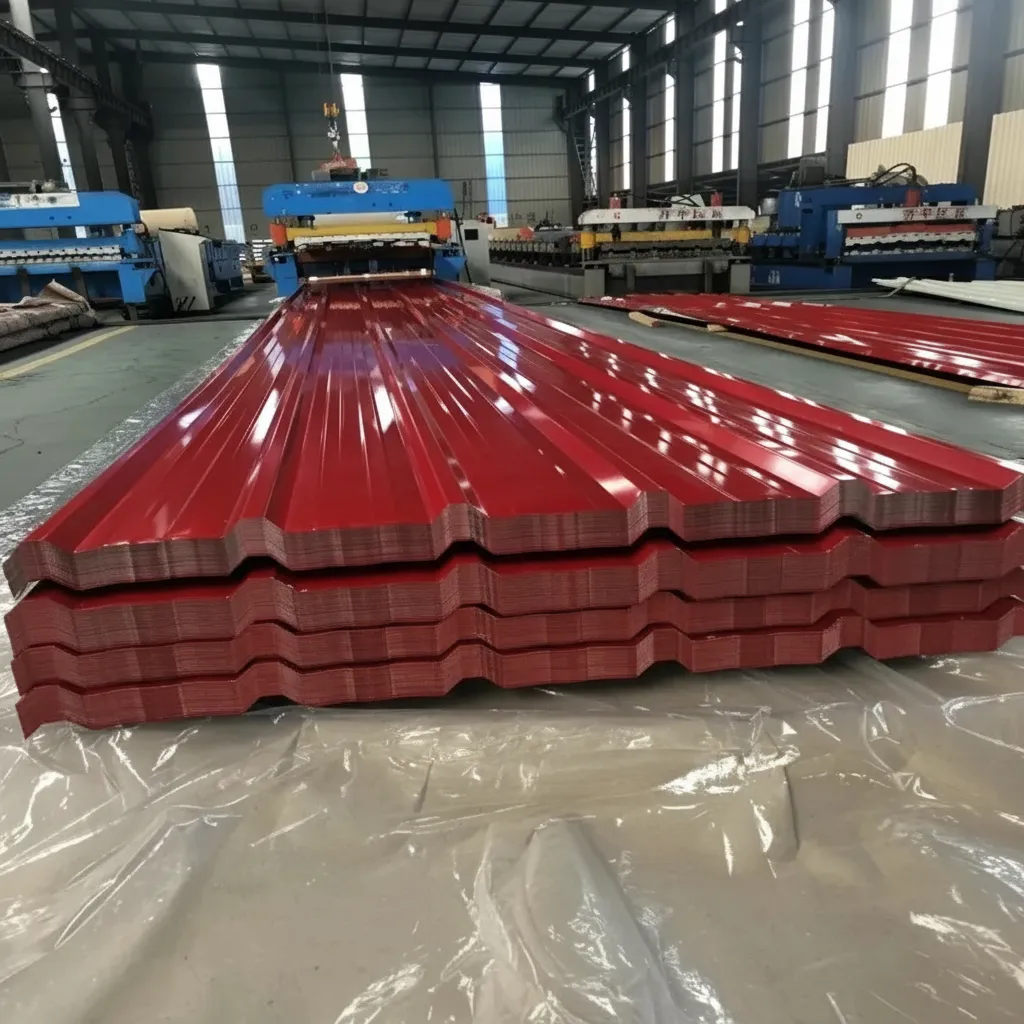

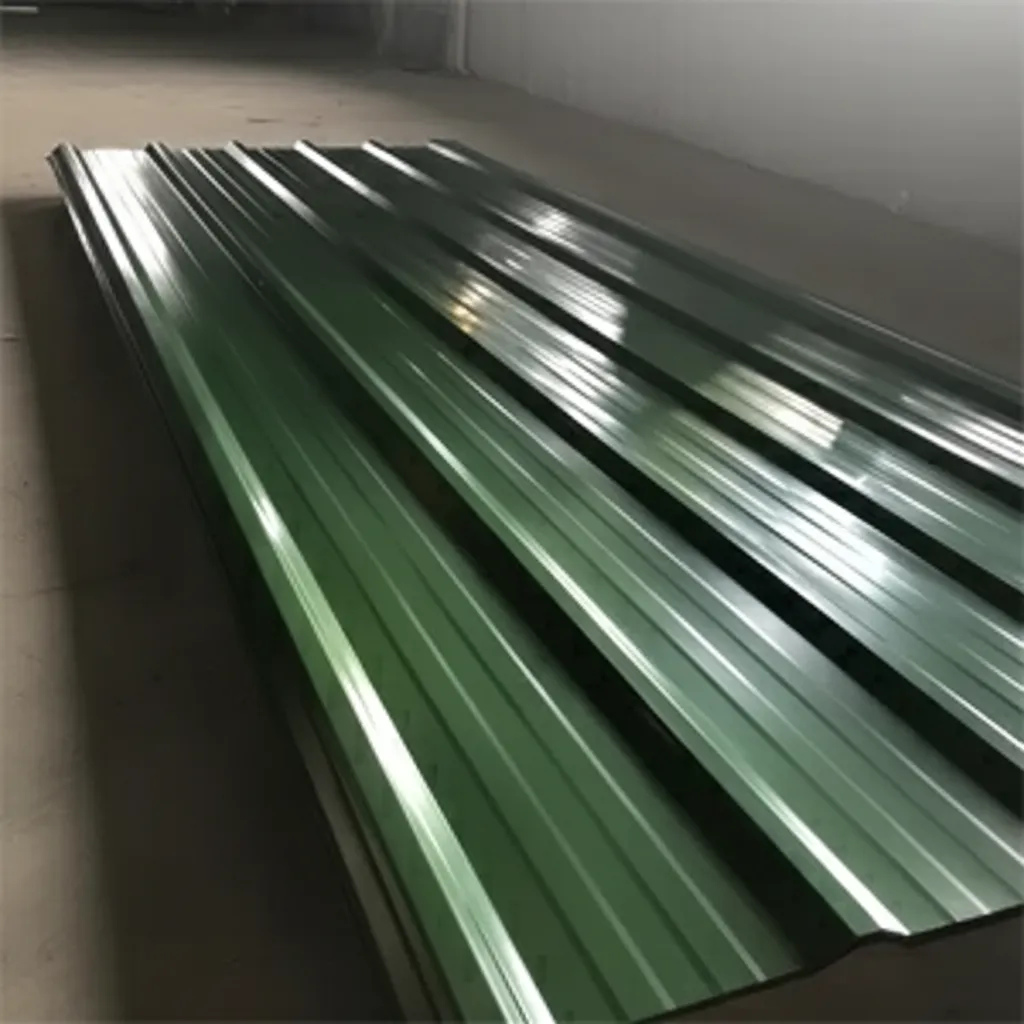

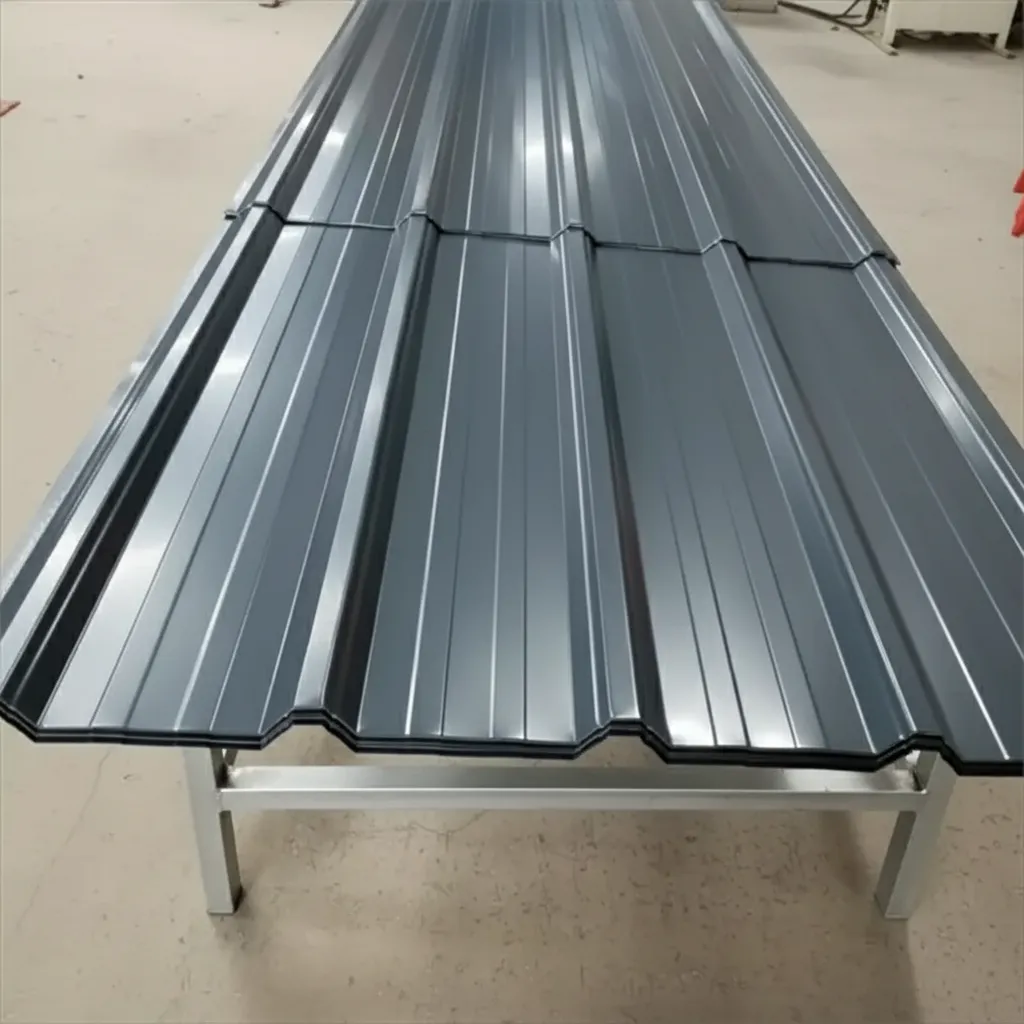

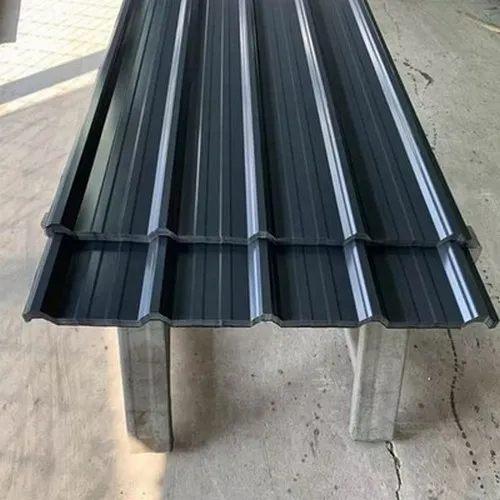

| Product Name | Rectangular Color Coated Steel Sheet | Pre-painted galvanized/galvalume steel sheet with rectangular form factor |
| Material Grade | TDC51D, TDC52D, TS280GD, TS350GD (EN); CGCC, CGCD (JIS G3312); Q/BQB 440 (GB) | International equivalents: DX51D+Z (EN 10346), SGCC (JIS), Grade 33/37/40 (ASTM A755) |
| Standard Compliance | ASTM A755/A755M, EN 10169, JIS G3312, GB/T 12754 | Covers mechanical properties, coating adhesion, and color uniformity requirements |
| Chemical Composition | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Base metal composition per EN 10346 / GB/T 2518; substrate: hot-dip galvanized or galvalume |
| Tensile Strength | 270–560 MPa | Varies by grade; e.g., TDC51D: ≥270 MPa, TS350GD: ≥350 MPa (EN 10169) |
| Yield Strength | 140–420 MPa | TDC51D: ≥140 MPa; TS280GD: ≥280 MPa; TS350GD: ≥350 MPa |
| Elongation | ≥16%–28% | Measured at A80; higher elongation grades suitable for deep drawing and forming |
| Thickness Range | 0.14–1.50 mm (base metal); total: 0.18–1.60 mm | Includes primer + topcoat; tolerance per EN 10143 or GB/T 708 |
| Width Range | 600–1,500 mm | Standard widths: 750 mm, 900 mm, 1,000 mm, 1,200 mm, 1,250 mm |
| Length Range | 1,000–6,000 mm (customizable) | Rectangular sheets cut to length; tolerance ±5 mm standard |
| Coating Type | Zinc (Z100–Z275 g/m²) or Zinc-Aluminum (AZ50–AZ150 g/m²) | Hot-dip galvanized (GI) or Galvalume (GL/Aluzinc) substrate per EN 10346 |
| Paint System | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP | Topcoat: 15–25 μm; primer: 5–7 μm; back coat: 7–12 μm; RAL/custom colors available |
| Surface Finish | Smooth, embossed, matte, or high-gloss | Color uniformity per EN 10169 Class A; pencil hardness ≥ 2H; T-bend ≤ 2T |

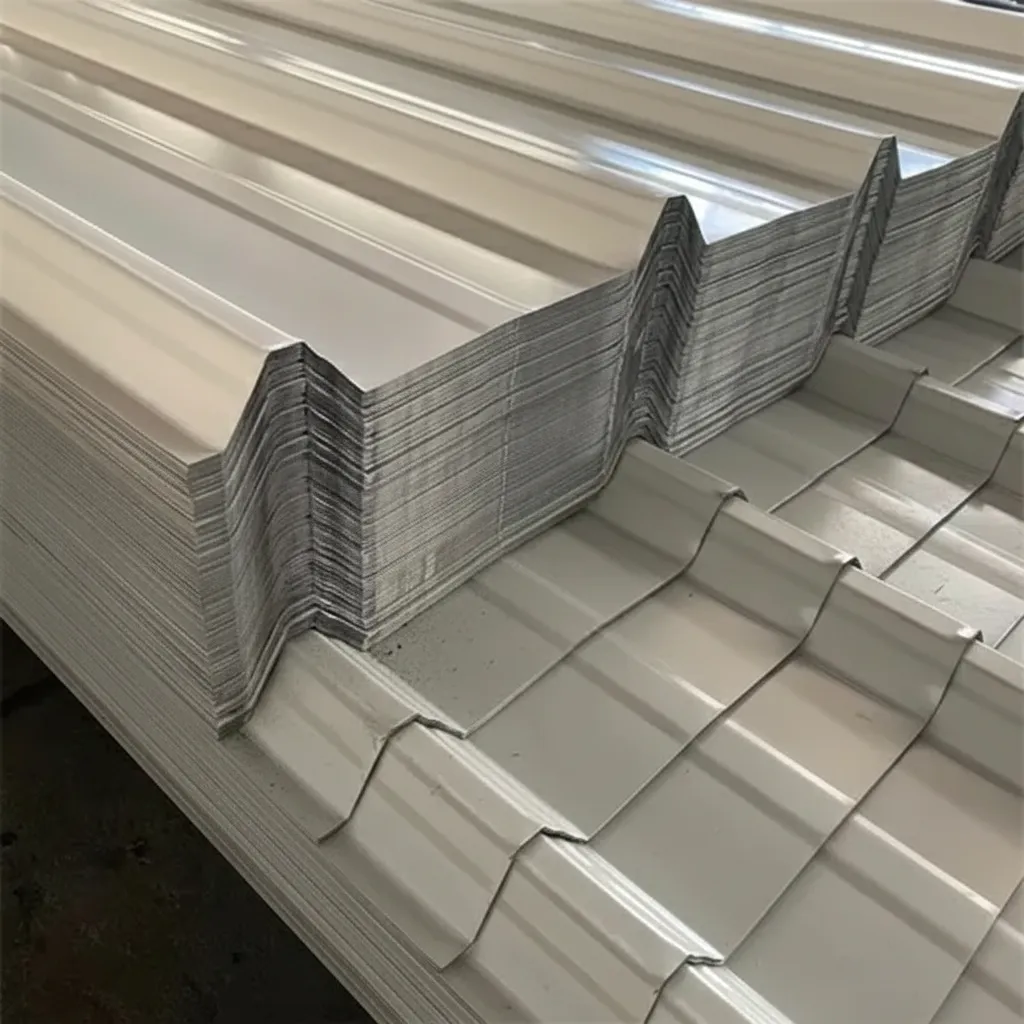

| Application | Roofing, wall cladding, home appliances, garage doors, HVAC panels, interior decoration | Widely used in construction, automotive interiors, and household appliance manufacturing |
| Certification | ISO 9001, CE Marking, SGS, BV, RoHS Compliant | Third-party inspection available; mill test certificate (MTC) per EN 10204 3.1 |

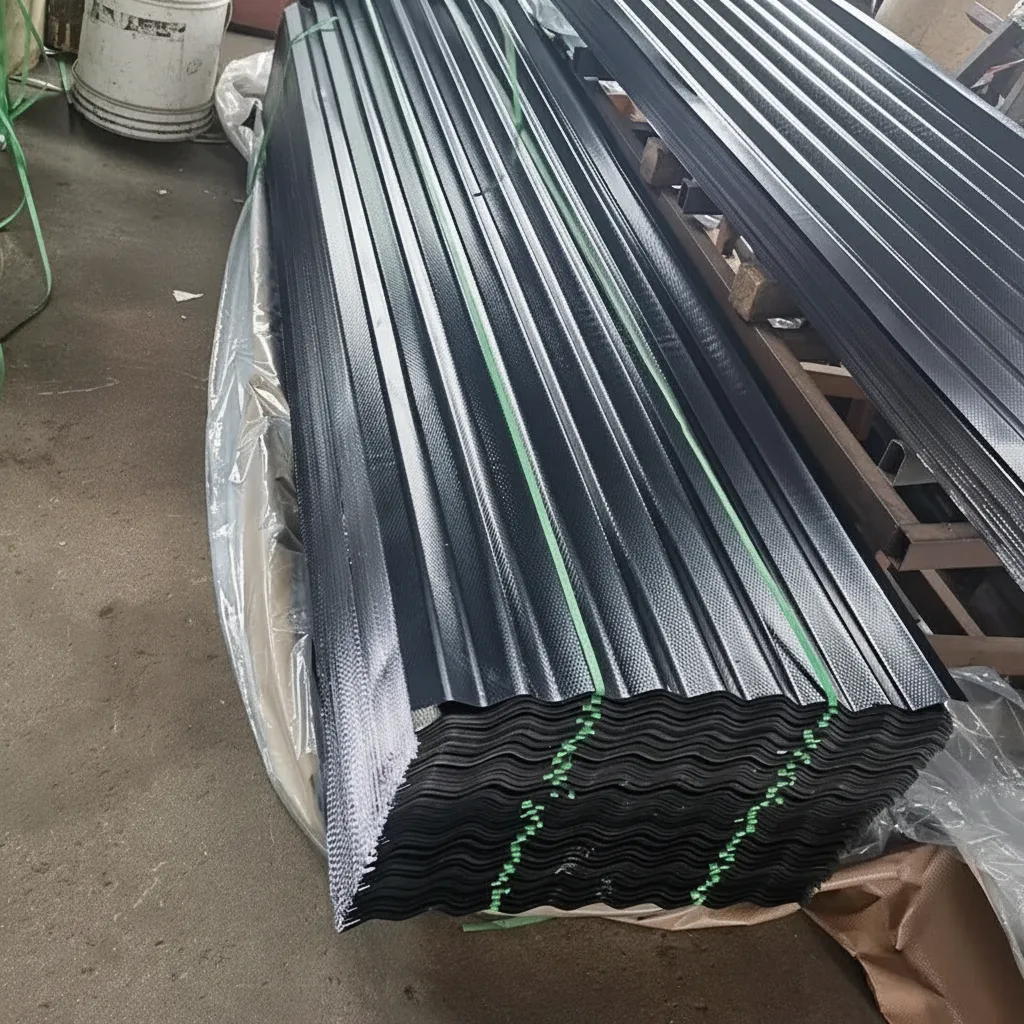

| Packaging | Wooden pallet or steel pallet; waterproof paper + steel strip bundling | Export seaworthy packaging; each bundle ≤ 3,000 kg; edge protectors included |
| MOQ | 5 Metric Tons per color/specification | Mixed specifications accepted; lead time 7–20 business days depending on order volume |
Initial color variance issue — resolved after mill rerun
Our first shipment of 0.50 mm PVDF sheets in a custom NCS S 4010-B color showed a visible Delta-E variance of approximately 1.8 compared to the approved sample, which was outside our project tolerance of Delta-E ≤ 1.0. We raised the issue with supporting spectrophotometer data. The mill acknowledged the batch deviation, expedited a rerun to the correct color profile, and delivered replacement sheets within 14 days at no additional cost. The replacement batch measured Delta-E 0.6 — fully compliant. The resolution process was professional, but the initial quality control on custom colors needs tightening.
Our first shipment of 0.50 mm PVDF sheets in a custom NCS S 4010-B color showed a visible Delta-E variance of approximately 1.8 compared to the approved sample, which was outside our project tolerance of Delta-E ≤ 1.0. We raised the issue with supporting spectrophotometer data. The mill acknowledged the batch deviation, expedited a rerun to the correct color profile, and delivered replacement sheets within 14 days at no additional cost. The replacement batch measured Delta-E 0.6 — fully compliant. The resolution process was professional, but the initial quality control on custom colors needs tightening.
