| Property | Parameter | Description |
|---|---|---|

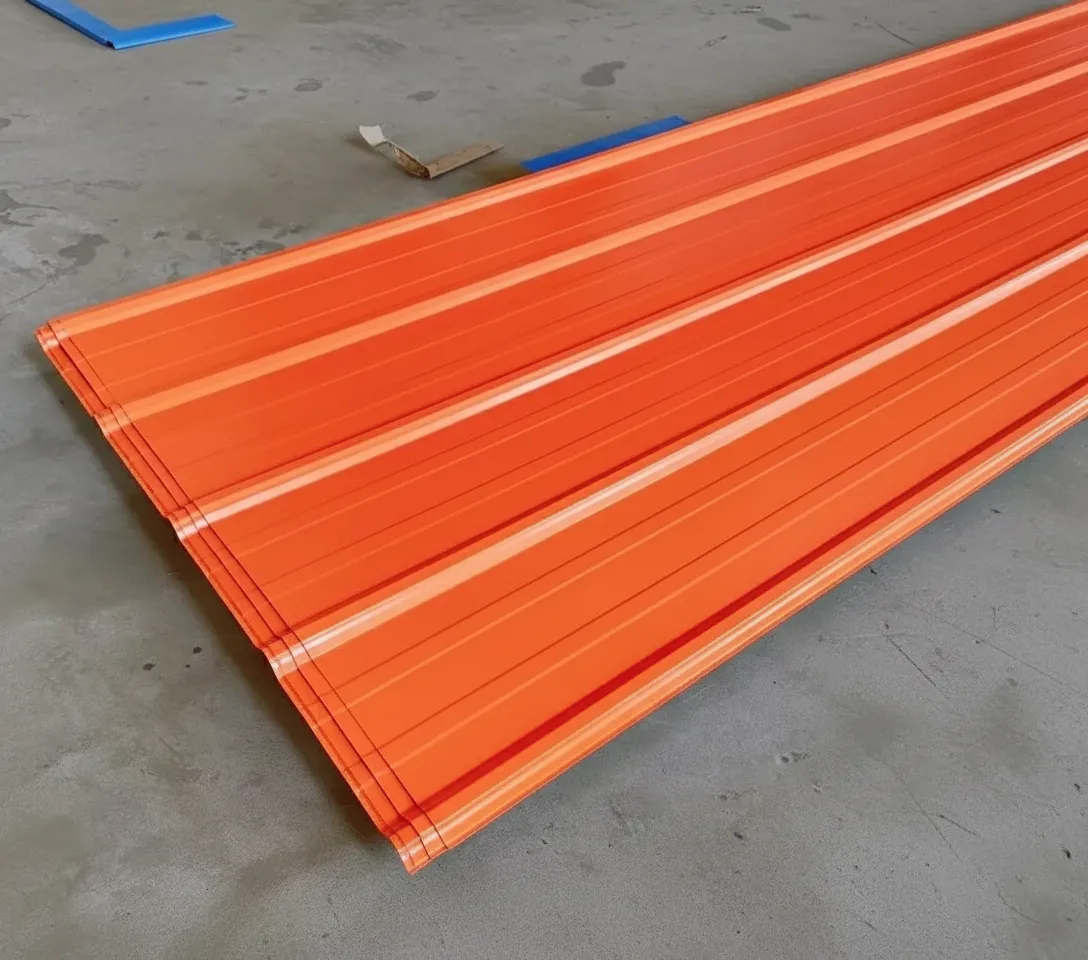

| Product Name | High Strength Color Steel Panel | Pre-painted high-strength steel panel with protective coating for structural and architectural use |
| Material Grade | S550GD / DX51D+Z / Q550 / SGCC | Equivalent to EN 10346 S550GD, ASTM A653 Grade 80, JIS G3302 SGCC high-strength series |
| Standard Compliance | EN 10346 / ASTM A653 / JIS G3302 / GB/T 12754 | Meets international standards for hot-dip zinc-coated and pre-painted steel strip |
| Chemical Composition (C) | ≤ 0.12% | Low carbon content ensures formability and weldability |
| Chemical Composition (Mn) | ≤ 1.60% | Manganese enhances tensile strength and hardness |
| Chemical Composition (P / S) | P ≤ 0.030% / S ≤ 0.025% | Controlled phosphorus and sulfur for improved toughness |
| Chemical Composition (Si) | ≤ 0.50% | Silicon improves coating adhesion and corrosion resistance |
| Tensile Strength | 550 – 700 MPa | Per EN 10346 S550GD and ASTM A653 Grade 80; high load-bearing capacity |
| Yield Strength | ≥ 550 MPa (ReH) | Minimum yield strength per EN 10346; suitable for heavy-duty structural applications |
| Elongation | ≥ 6% (A80mm) | Adequate ductility for roll-forming and bending operations |
| Thickness Range | 0.3 – 1.5 mm (base metal) | Total thickness including coating; custom thickness available upon request |
| Width Range | 600 – 1250 mm | Standard coil width; slit-to-width service available |
| Coating Type & Weight | Zinc: Z60–Z275 g/m²; Galvalume: AZ100–AZ150 g/m² | Hot-dip galvanized or Galvalume substrate; top coat PVDF or PE paint 15–25 μm |
| Surface Finish | PVDF / Polyester (PE) / SMP coating | RAL color customizable; smooth, embossed, or matte finish; UV and weather resistant |
| Application | Roofing, wall cladding, industrial buildings, warehouses, cold storage | Widely used in construction, prefabricated structures, and agricultural facilities |
| Certification | ISO 9001 / CE / SGS / BV | Quality management and third-party inspection certifications available |

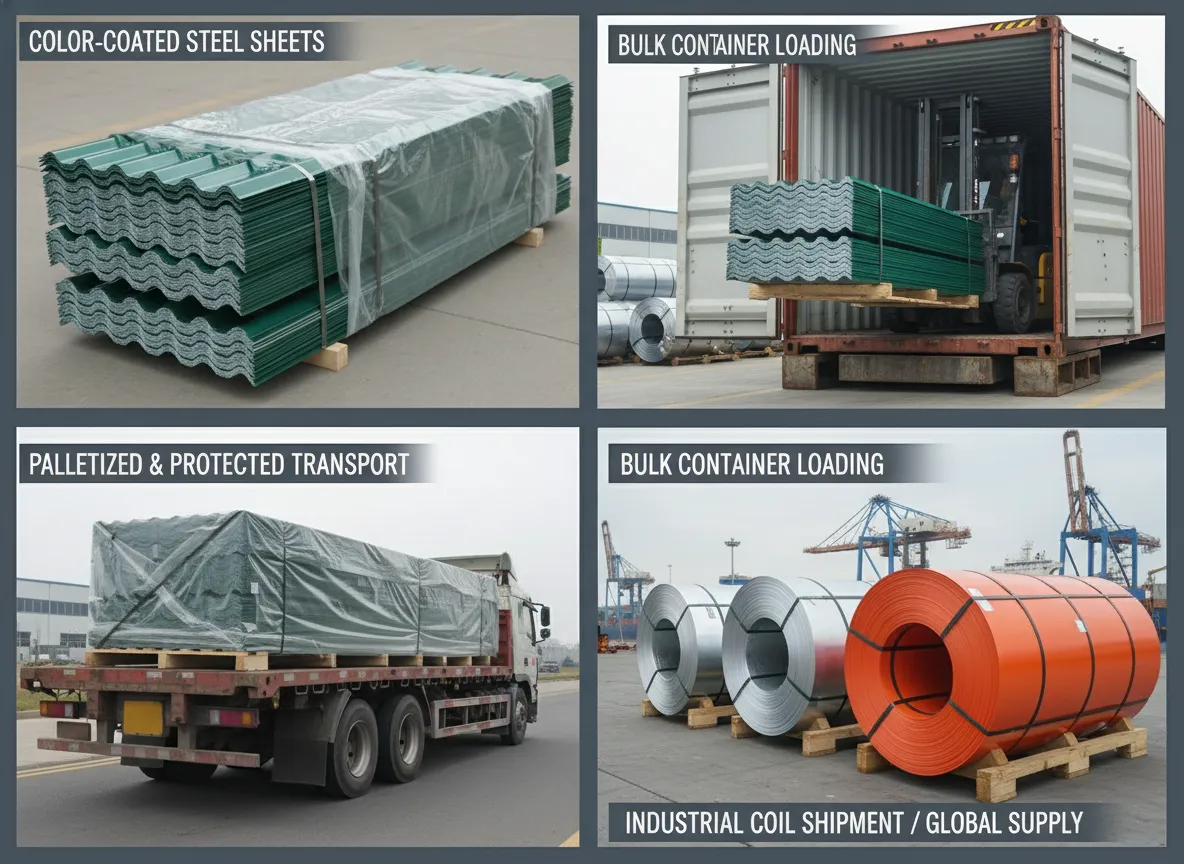

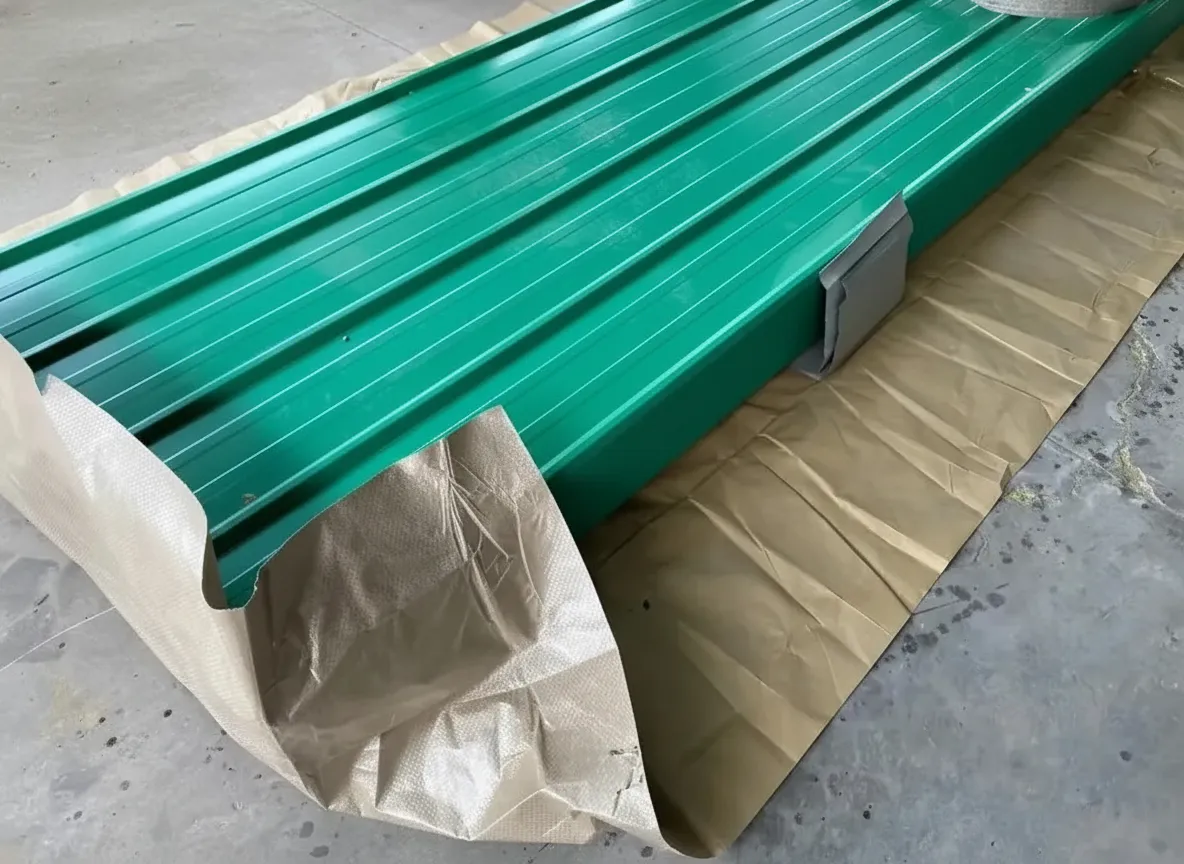

| Packaging | Coil or cut-to-length sheets; waterproof paper + steel strip bundling | Export-standard packaging; moisture-proof and rust-proof for sea freight |
| MOQ | 25 Metric Tons per order | Mixed specifications accepted; OEM and custom orders welcome |
Initial color inconsistency resolved satisfactorily
Our first order of 25 tonnes of 0.6 mm panel in RAL 3009 oxide red showed a slight gloss variation between two coils — measured at 38 GU versus our specified 45 GU at 60°. We flagged this immediately. The supplier's QC team acknowledged the oven temperature deviation in one batch and air-freighted replacement coils within 10 days at no extra cost. Subsequent coils matched spec perfectly. The swift resolution and honest communication restored our confidence. We have since placed a follow-up order of 40 tonnes. Issue was a one-time occurrence, not a systemic problem.
