| Property | Parameter | Description |
|---|---|---|

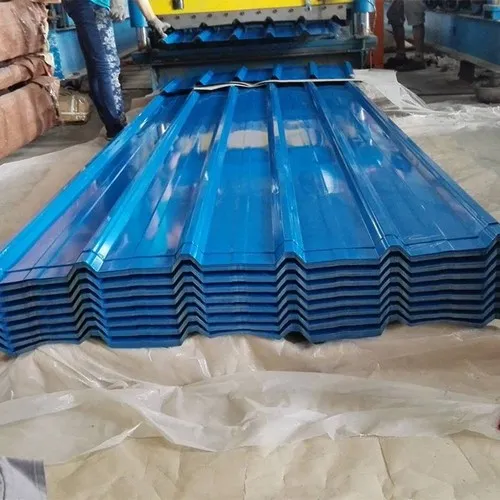

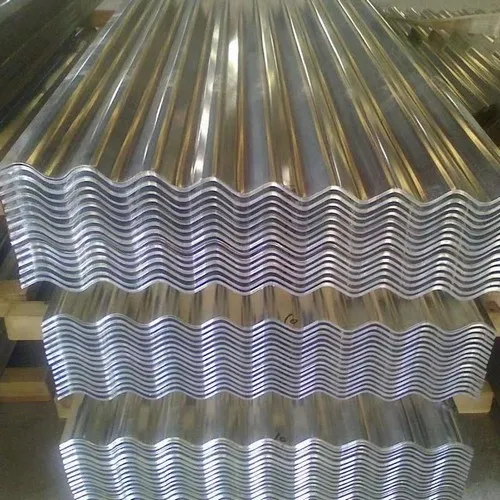

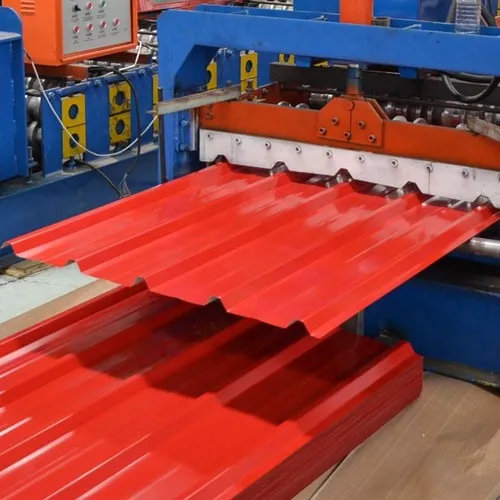

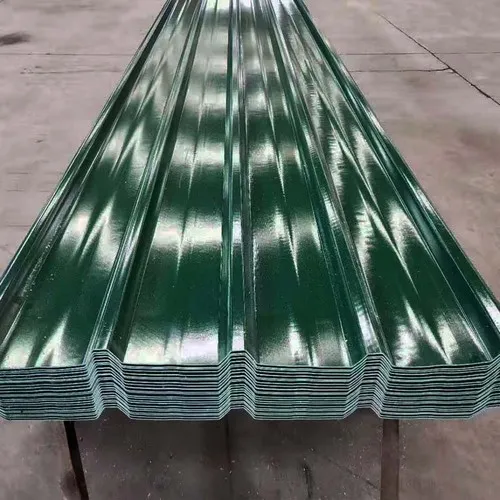

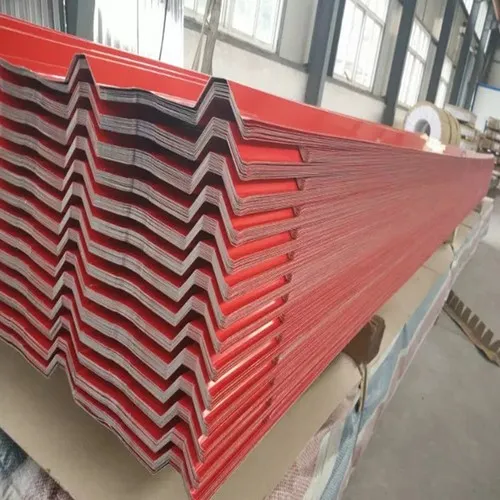

| Product Name | Mill Finish Color Coated Steel Sheet | Pre-painted galvanized or galvalume steel sheet with mill finish base surface |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD / CS Type B | Equivalent to EN 10346, JIS G3302, ASTM A653; base metal hot-dip zinc or zinc-aluminum coated |
| Standard Compliance | EN 10169, ASTM A755/A755M, JIS G3312, GB/T 12754 | International standards for continuously organic-coated (color coated) flat-rolled steel products |
| Chemical Composition (Base) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Typical low-carbon steel substrate composition per EN 10346 / GB/T 2518 |
| Coating Type | Polyester (PE), PVDF, SMP, HDP, Epoxy | Top coat options; PVDF offers superior UV and weather resistance; PE is most economical |
| Coating Thickness | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 5–15 µm | Measured per ASTM D1400 or EN ISO 2808; total dry film thickness varies by application |
| Zinc Coating Mass | Z60–Z275 g/m² (both sides) / AZ50–AZ150 g/m² | Galvanized (GI) or Galvalume (GL/Aluzinc) substrate; per ASTM A653 / EN 10346 |
| Tensile Strength | 270–500 MPa | Varies by grade: DX51D ≥ 270 MPa; DX53D ≥ 270 MPa (deep drawing); per EN 10346 |
| Yield Strength | 140–360 MPa | DX51D: 140–300 MPa; structural grades (S280GD, S350GD) up to 360 MPa per EN 10346 |
| Elongation | ≥ 22% (A80mm) | DX51D/DX52D typical elongation; deep drawing grades DX53D ≥ 26%; per EN 10346 |
| Thickness Range | 0.14 mm – 1.50 mm | Base metal thickness (BMT); common commercial range; custom thickness available on request |
| Width Range | 600 mm – 1,500 mm | Slit coil or sheet width; standard widths 914 mm, 1000 mm, 1219 mm, 1250 mm |
| Surface Finish | Mill Finish (smooth, matte or gloss); RAL / custom color available | No embossing; uniform paint film; gloss level 10–85 GU (60° angle) per EN ISO 2813 |
| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts, automotive parts | Widely used in construction, white goods manufacturing, and light industrial fabrication |
| Certification | ISO 9001, CE Marking, SGS, BV, RoHS Compliant | Third-party inspection and quality management system certification available |
| Packaging | Coil or sheet; eye-to-sky or eye-to-wall; waterproof paper + steel strip strapping | Inner diameter 508 mm or 610 mm; coil weight up to 10 MT; export seaworthy packaging |
| MOQ | 25 MT per order (coil); 5 MT (sheet) | Mixed grades and colors accepted; sample order negotiable for new customers |
Initial coil width variance issue — addressed promptly by technical team
Our first order of 40 MT of 0.40 mm HDP sheet specified 1,250 mm coil width, but three coils in the shipment measured 1,238–1,242 mm, which caused minor trim allowance issues on our slitting line. I raised this with the technical team and they acknowledged the variance exceeded their internal tolerance, issued a credit note for the affected coils, and provided tighter width control on our follow-up 30 MT order — all coils came in at 1,249–1,251 mm. Quality issue was real but the resolution was professional and fast.
