| Property | Parameter | Description |
|---|---|---|

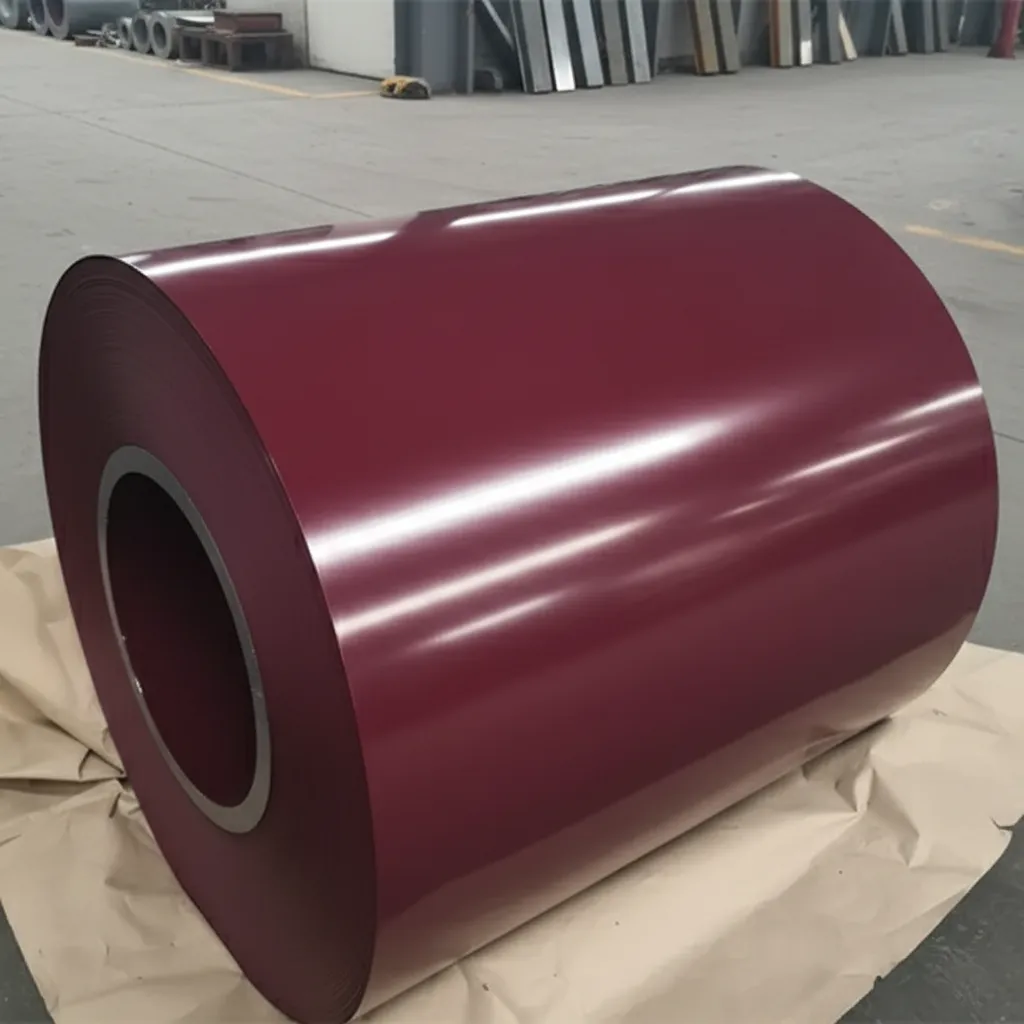

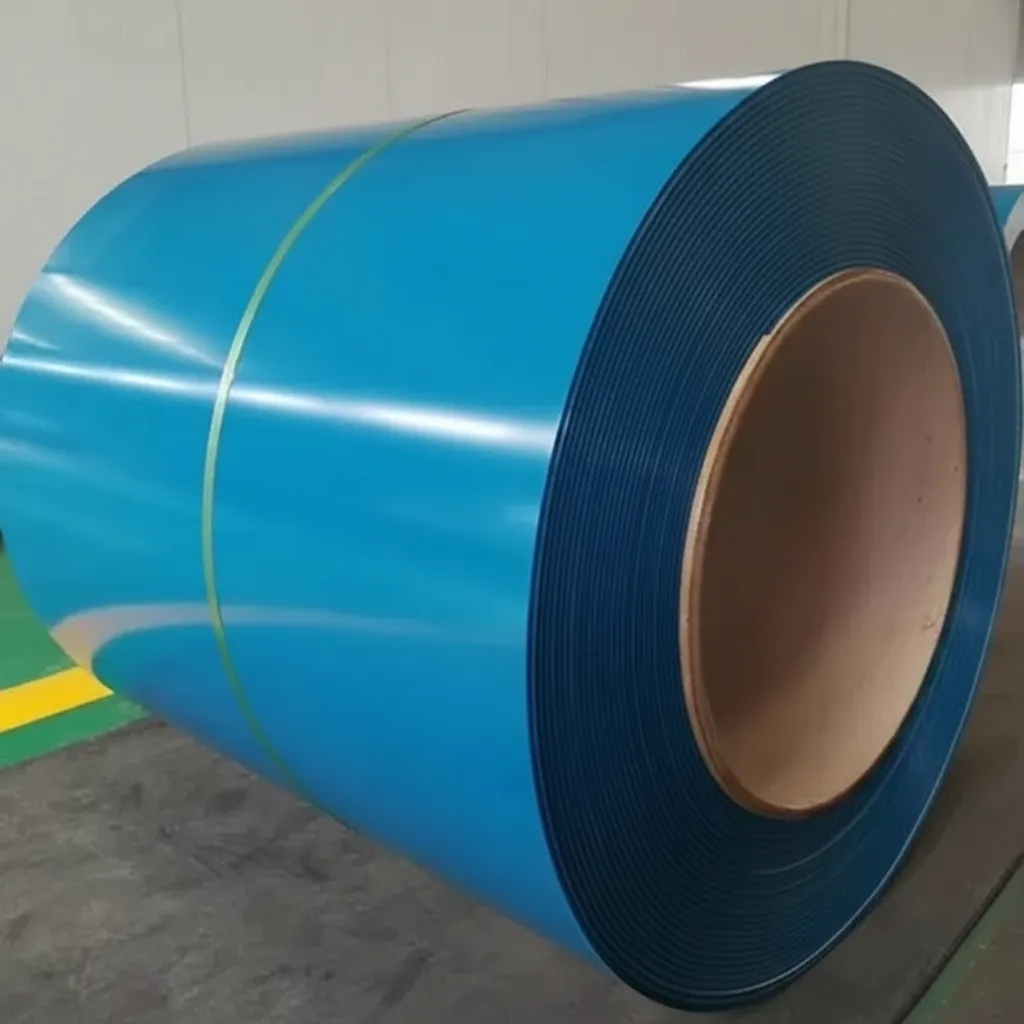

| Product Name | Tensile Durable Color Coated Coil | High-strength prepainted steel coil with superior tensile performance and long-lasting color coating |
| Material Grade | Q235B / SGCC / DX51D+Z (Equiv. ASTM A653 CS Type B) | Cold-rolled galvanized or galvalume base steel with organic color coating; international equivalents include JIS G3302 SGCC and EN 10346 DX51D |
| Standard Compliance | ASTM A755 / EN 10169 / JIS G3312 / GB/T 12754 | Meets international prepainted steel coil standards for mechanical properties, coating adhesion, and corrosion resistance |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel chemistry ensuring good formability and weldability of the base substrate |
| Tensile Strength | 270–560 MPa (per ASTM A653 / EN 10346) | High tensile durability suitable for structural and architectural applications; grade-dependent range |
| Yield Strength | 140–420 MPa | Minimum yield strength varies by grade; ensures structural integrity under load-bearing conditions |
| Elongation | ≥ 16–22% (A80mm) | Adequate ductility for roll forming, bending, and profiling without coating cracking |
| Coating Type | Polyester (PE) / PVDF / SMP / HDP | Top coat options include standard polyester (15–25 µm) and high-durability PVDF (25–35 µm) for UV and weather resistance |
| Zinc/Aluminum Coating Weight | Z60–Z275 g/m² / AZ50–AZ150 g/m² | Hot-dip galvanized or galvalume (55% Al-Zn) base coating providing corrosion protection beneath the color layer |
| Thickness Range | 0.14–1.50 mm | Total thickness including base steel and coating layers; customizable per application requirement |
| Width Range | 600–1,500 mm | Standard slit widths available; custom widths can be arranged per order specification |
| Coil Inner Diameter | 508 mm / 610 mm | Standard inner diameter for compatibility with common decoiling equipment |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | Multiple surface textures available; color per RAL or custom color chart; T-bend ≤ 2T per EN 13523-7 |
| Application | Roofing, wall cladding, home appliances, garage doors, sandwich panels, HVAC ducts | Widely used in construction, industrial buildings, and consumer electronics due to tensile durability and aesthetic finish |
| Certification | ISO 9001:2015 / SGS / BV / CE | Quality management and third-party inspection certifications available upon request |
| Packaging | Eye-to-sky or eye-to-wall on wooden pallets, waterproof paper + steel strip strapping | Export-standard packaging to prevent moisture, scratching, and deformation during ocean or land freight |
| MOQ | 25 MT per order | Minimum order quantity; mixed specifications accepted subject to negotiation |
Initial shipment had packaging issue – resolved professionally by supplier
Our first order of 20 MT of 0.55 mm PVDF coated coil for facade cladding arrived with protective film partially detached on two coils, causing minor surface scratches. We raised the issue immediately and the supplier's technical team responded within 24 hours, arranged a third-party inspection, and replaced the affected coils within 18 days. The replacement coils were perfect – paint film thickness at 22 µm topcoat, gloss at 30 GU, fully EN 10169 compliant. The problem resolution process was handled professionally. We are now proceeding with a second order.
