| Property | Parameter | Description |
|---|---|---|

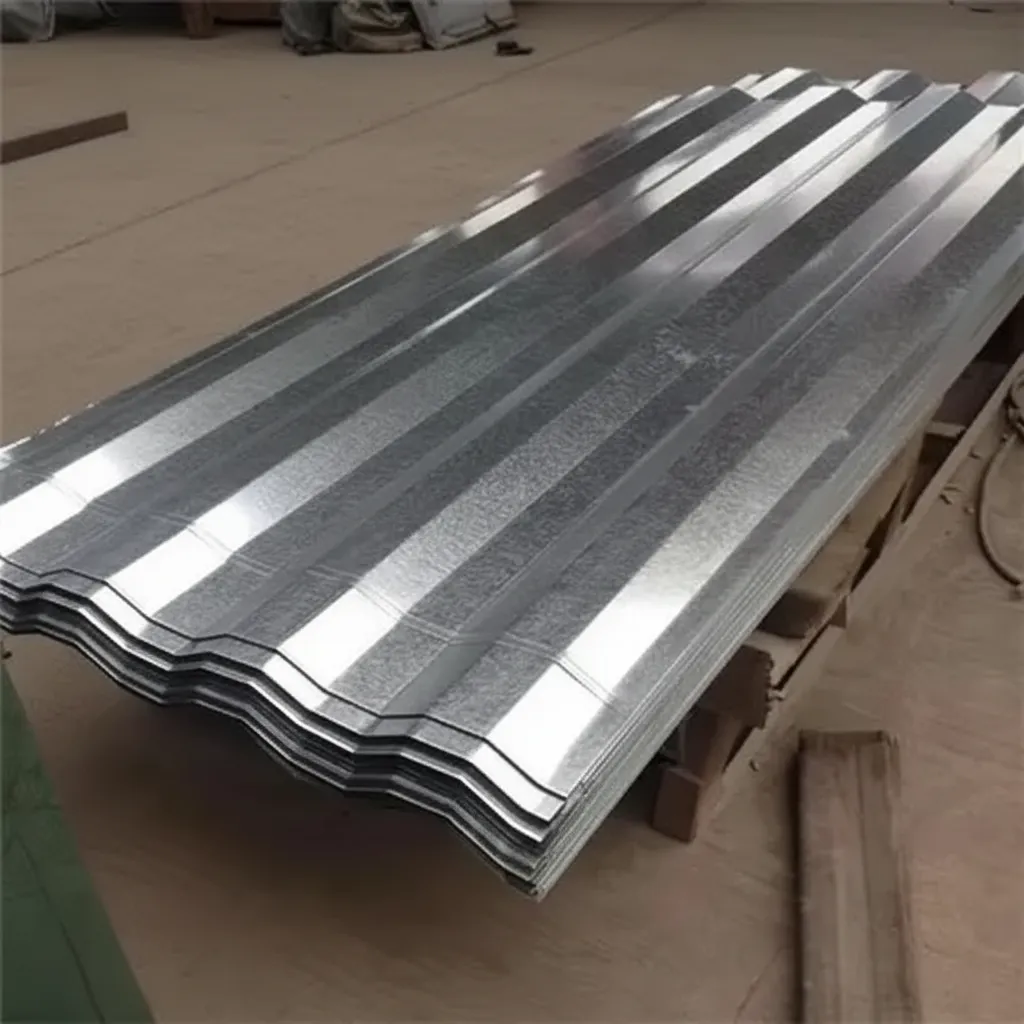

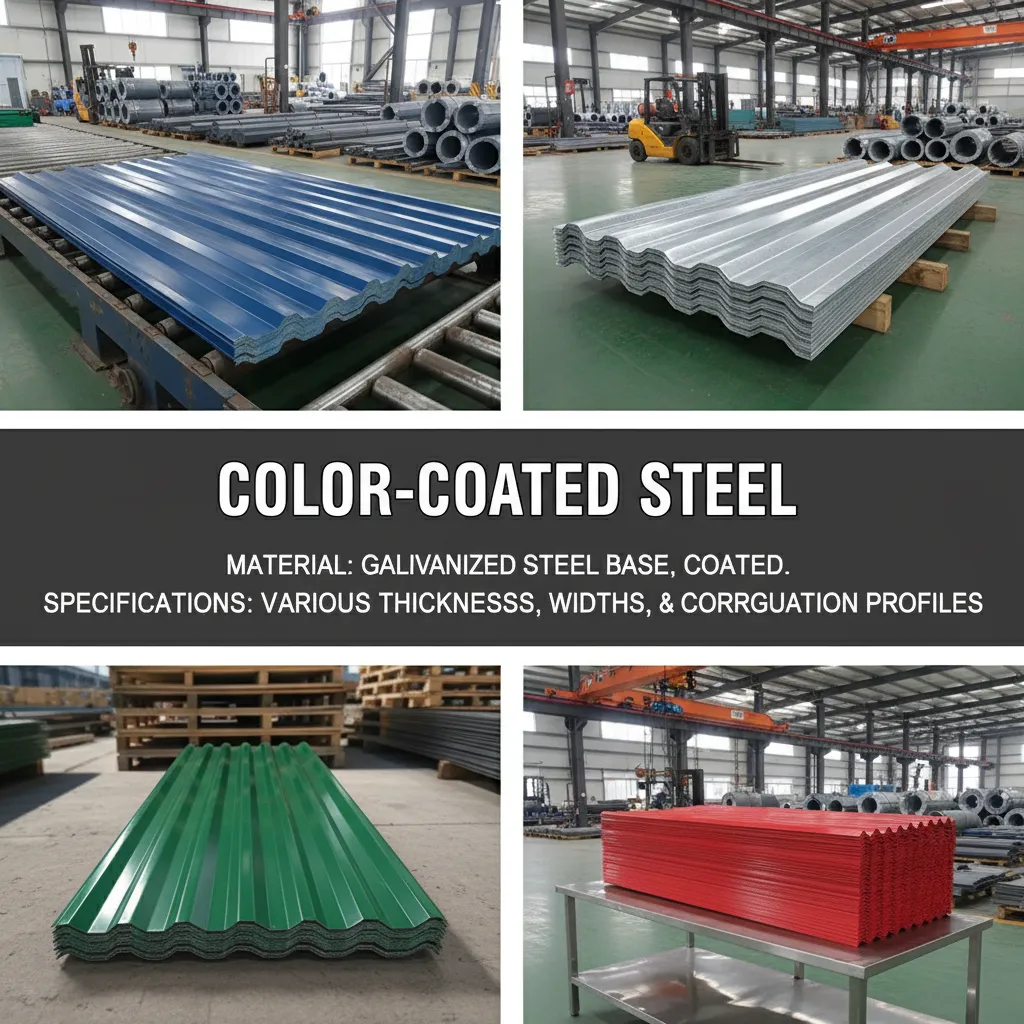

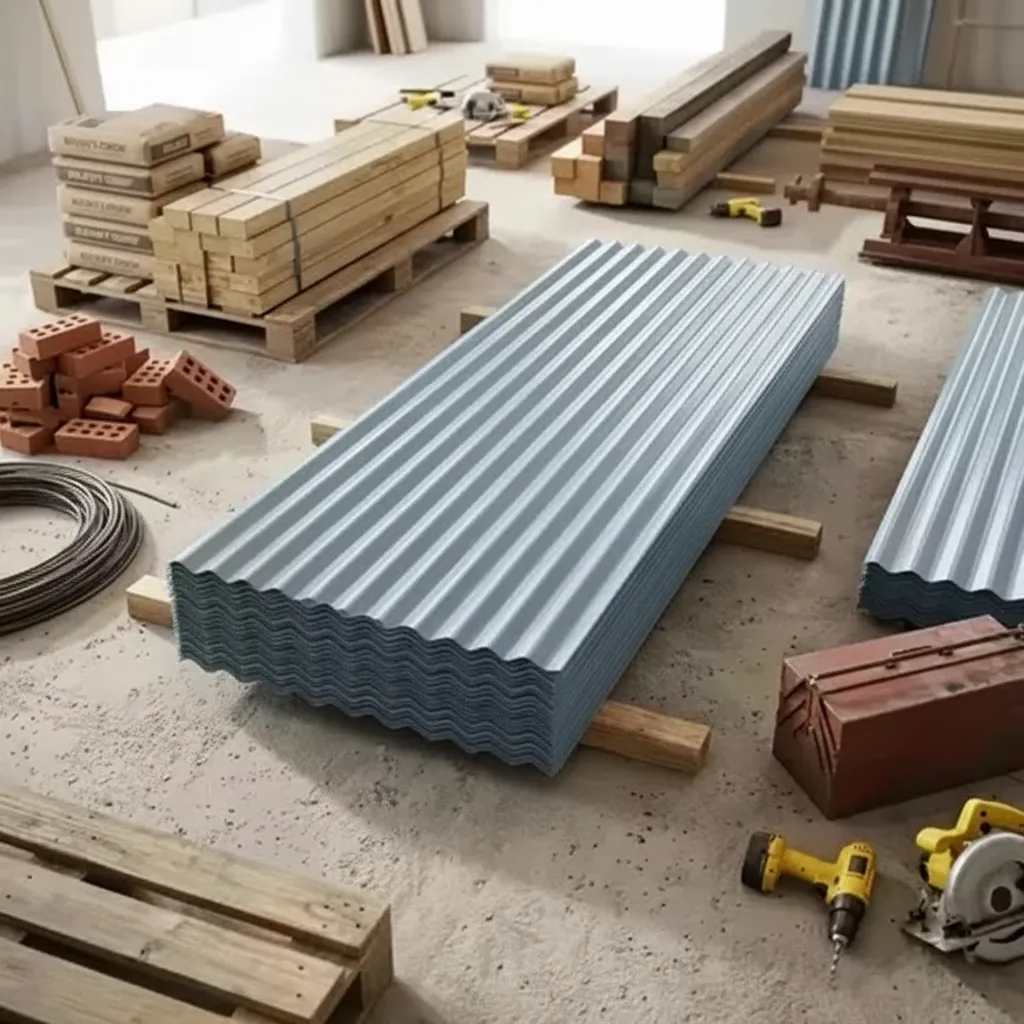

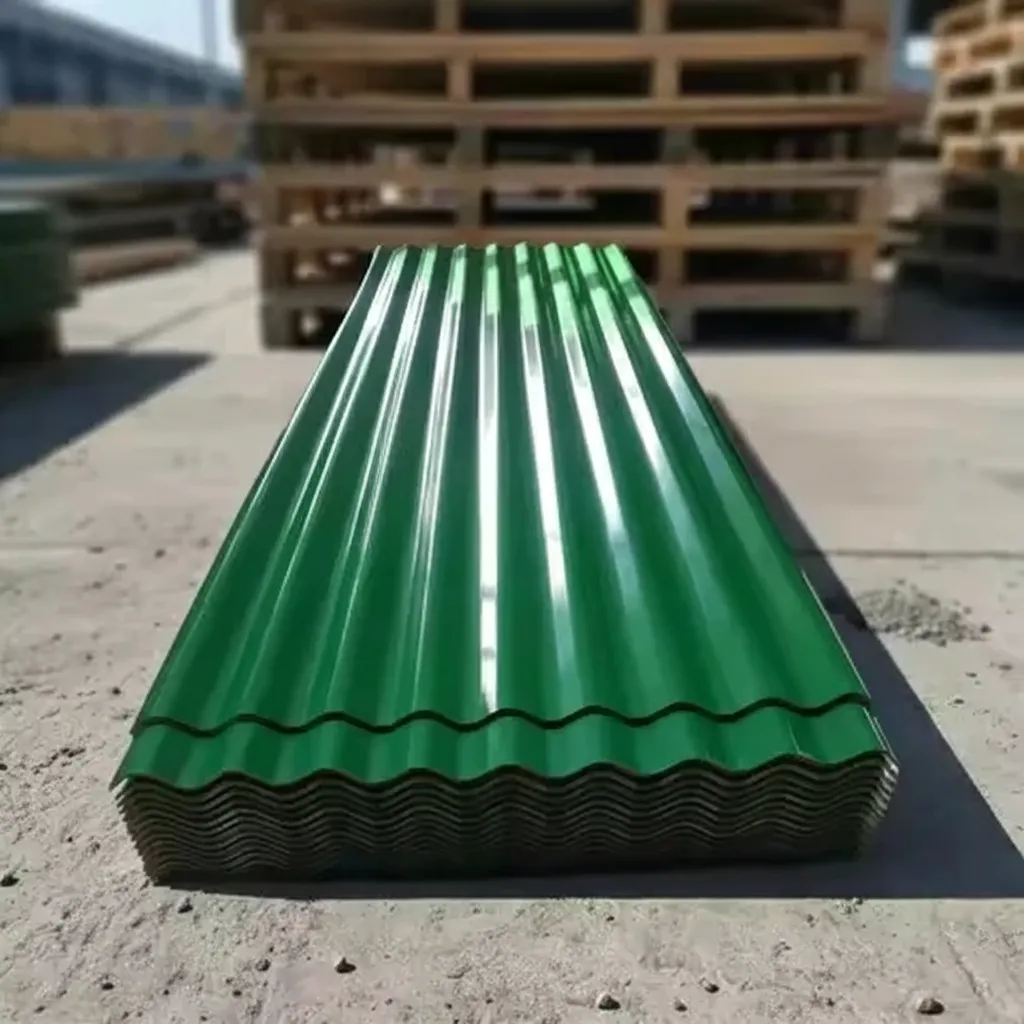

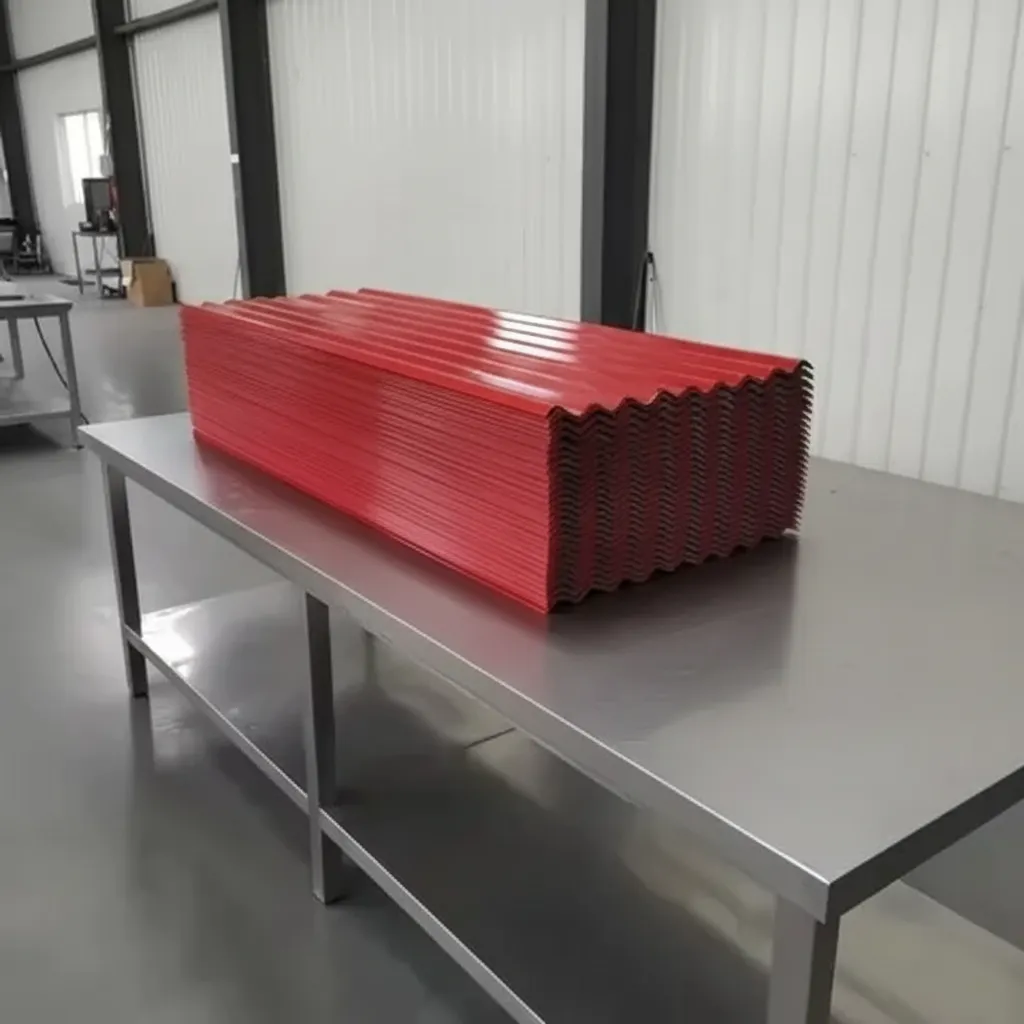

| Product Name | Corrugated Color Steel Sheet | Pre-painted corrugated profiled steel roofing and cladding panel |
| Material Grade | DX51D+Z / SGCC / S280GD | Equivalent to ASTM A653 CS Type B; hot-dip galvanized or Galvalume base |
| Standard Compliance | ASTM A755M / EN 10169 / JIS G3312 / GB/T 12754 | Covers pre-painted flat-rolled steel products for building applications |
| Chemical Composition (C) | ≤ 0.12% | Low carbon content ensures formability and coating adhesion |
| Chemical Composition (Mn) | ≤ 0.60% | Manganese for structural strength of base steel |
| Chemical Composition (P / S) | P ≤ 0.045% / S ≤ 0.045% | Controlled impurity levels per EN 10169 and GB/T 12754 |
| Tensile Strength | 270–560 MPa | Varies by grade; S280GD min. 360 MPa per EN 10346 |
| Yield Strength | ≥ 280 MPa | Minimum yield strength for S280GD grade; higher grades available |
| Elongation | ≥ 18% | Minimum elongation (A80mm) ensuring cold-forming without cracking |
| Base Metal Thickness | 0.3 – 1.2 mm | Common range; custom thickness available upon request |
| Sheet Width (Effective / Total) | Effective: 750–1000 mm / Total: 800–1250 mm | Depends on corrugation profile (e.g., 760, 900, 1000 mm effective coverage) |
| Sheet Length | 1000 – 12000 mm | Custom cut-to-length available; standard export length 2000–6000 mm |
| Coating Type | Polyester (PE) / PVDF / SMP / HDP | PE: 15–25 µm; PVDF: 25–35 µm; superior UV and corrosion resistance |
| Zinc / AZ Coating Weight | Z60–Z275 g/m² / AZ50–AZ150 g/m² | Hot-dip galvanized or Galvalume (55% Al-Zn alloy) per ASTM A792 |
| Surface Finish | High-gloss / Matte / Embossed / Woodgrain | RAL color system available; both sides coated; top coat + primer + back coat |

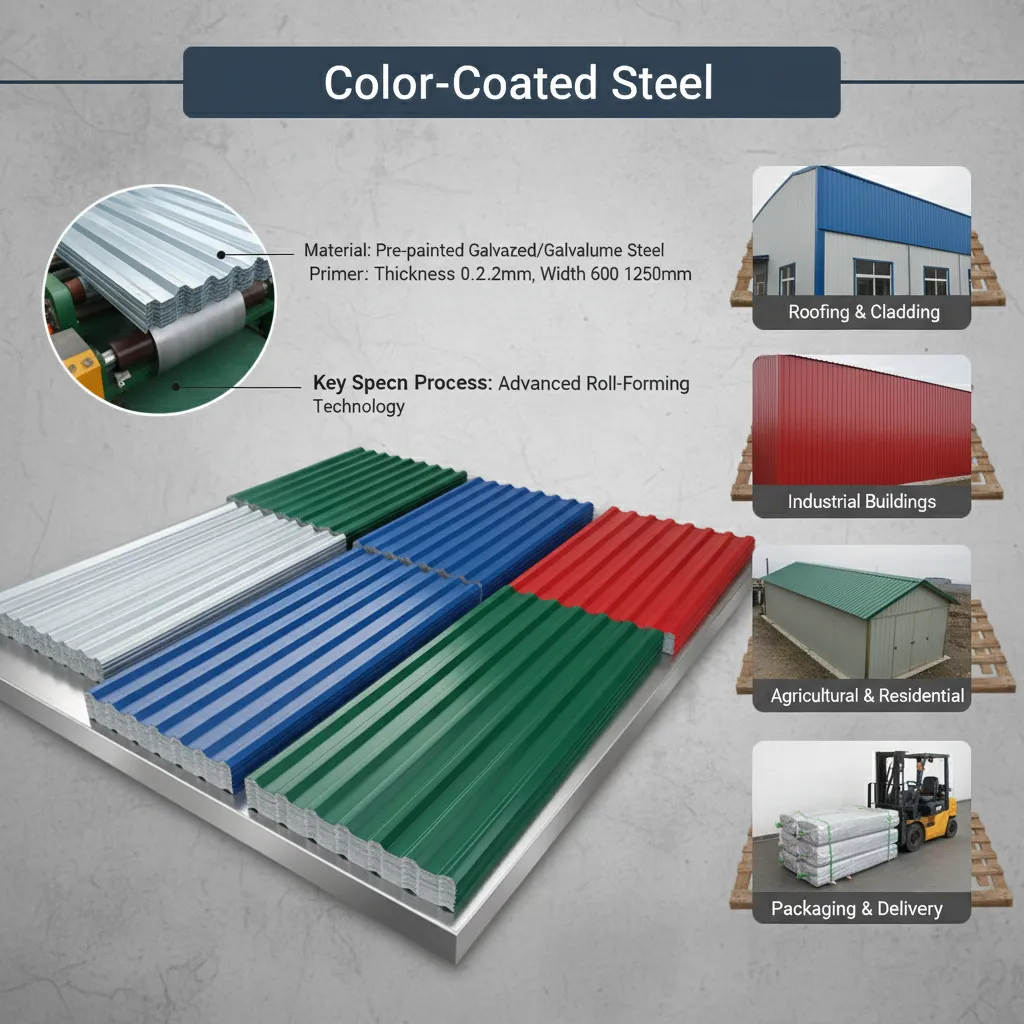

| Application | Roofing, wall cladding, warehouses, factories, agricultural buildings | Widely used in industrial, commercial, and residential construction |
| Certification | ISO 9001 / CE Marking / SGS / BV | Third-party inspection and mill test certificate (MTC) available |

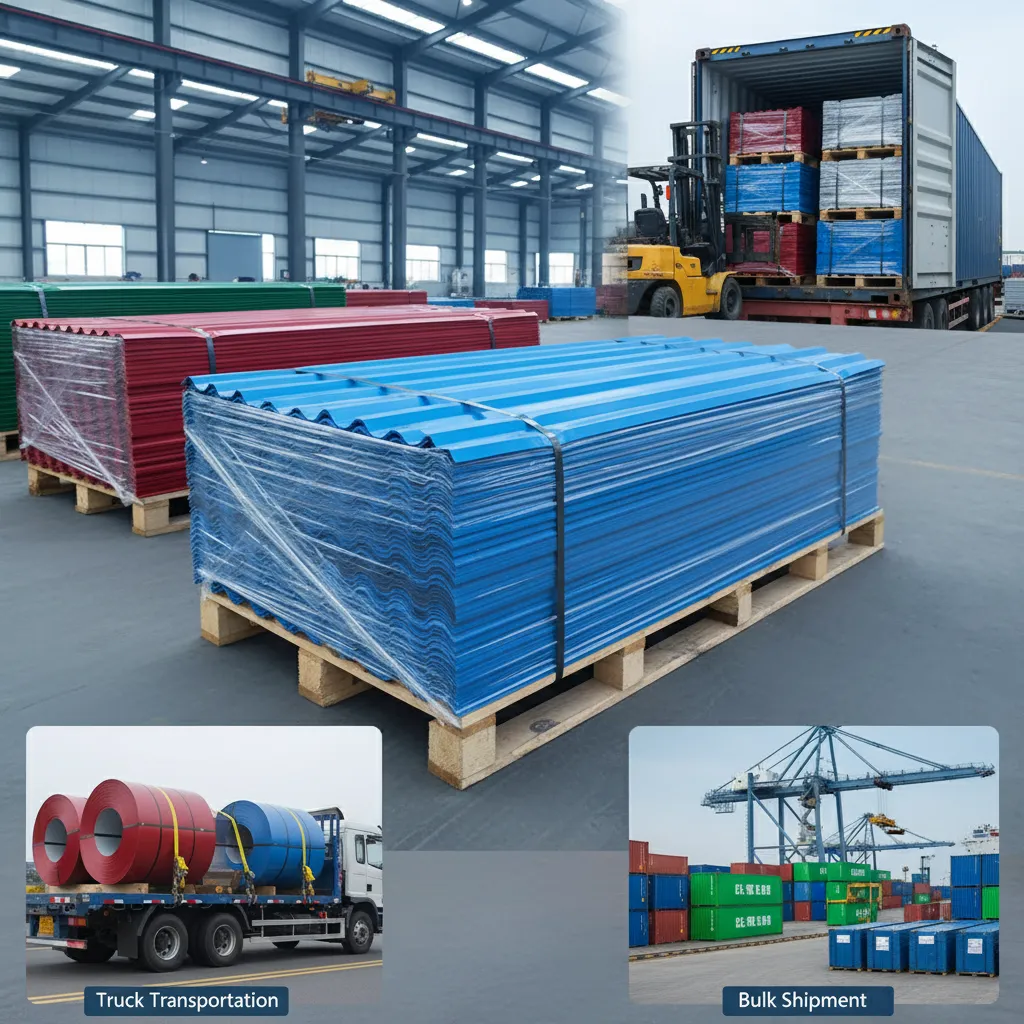

| Packaging | Steel strip bundled, waterproof paper + steel pallet | Export seaworthy packaging; each bundle 2–5 MT |
| MOQ | 5 Metric Tons per color/specification | Mixed container orders accepted; standard 20GP / 40HQ loading |
Initial color mismatch resolved — good follow-through
Our first shipment of 0.5 mm corrugated sheets in RAL 6005 arrived with a visible color variance between two sub-batches, which caused concern given the panels were for a visible façade application. We raised the issue with the technical team immediately. They acknowledged the batch mixing error, arranged a replacement for the non-conforming panels within 18 days, and provided a discount on the next order. The replacement panels matched perfectly. Product spec — Z180 zinc, 22 µm dry film — was correct throughout. Issue was handled professionally, but the initial QC check before shipment should have caught this.
