| Property | Parameter | Description |
|---|---|---|

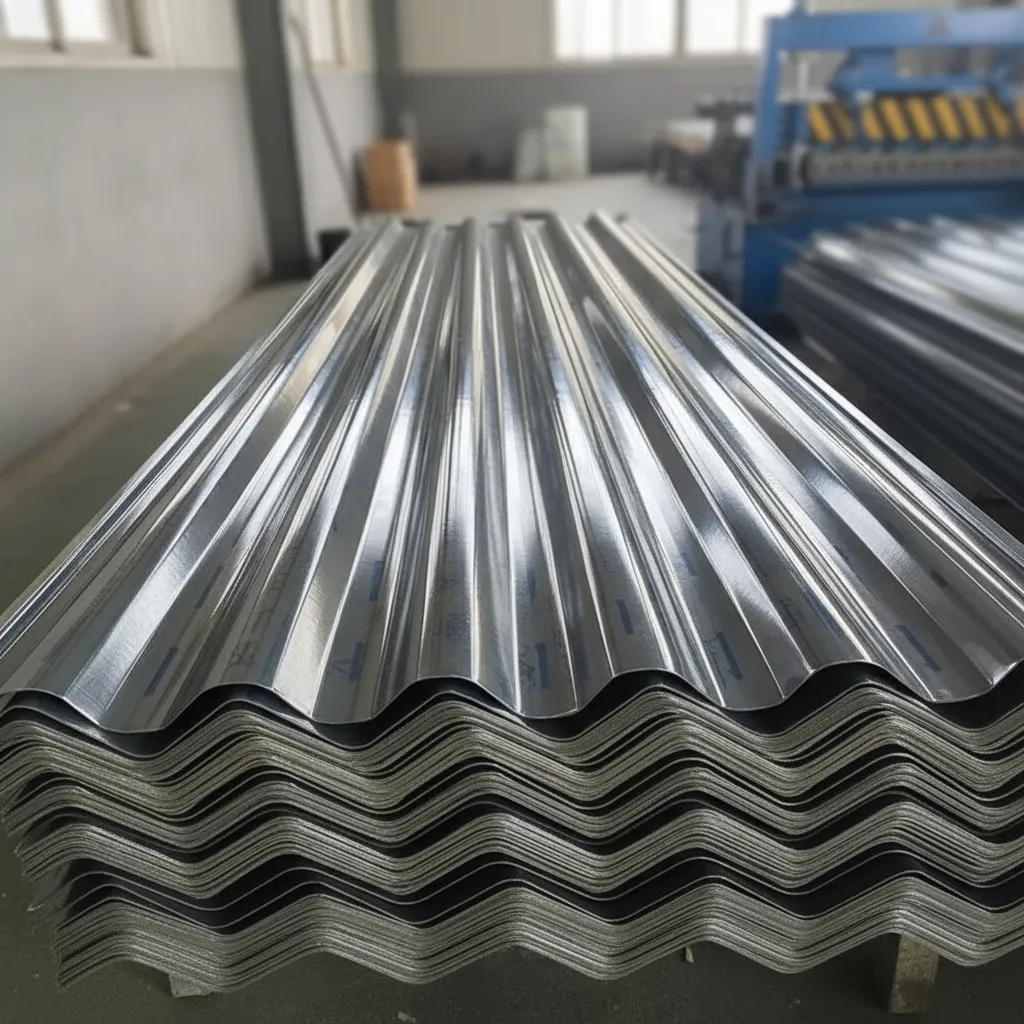

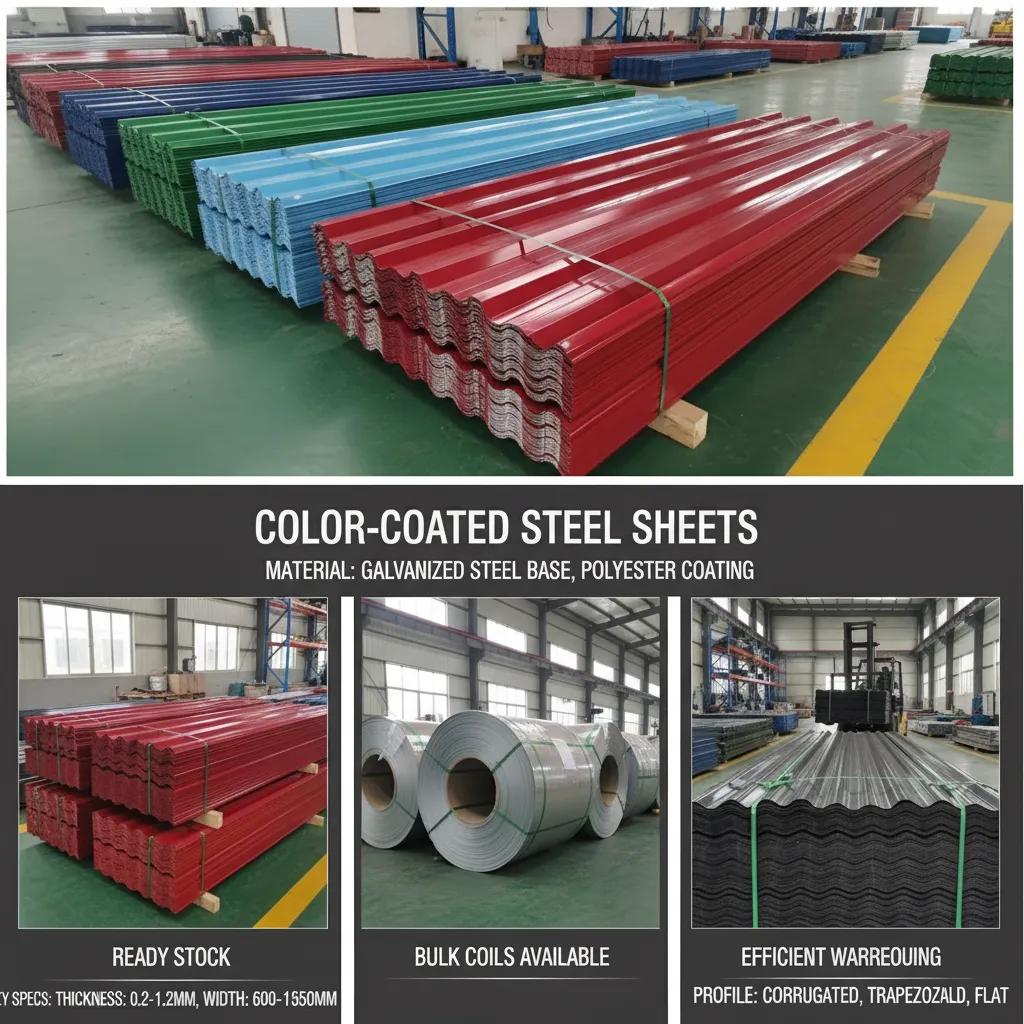

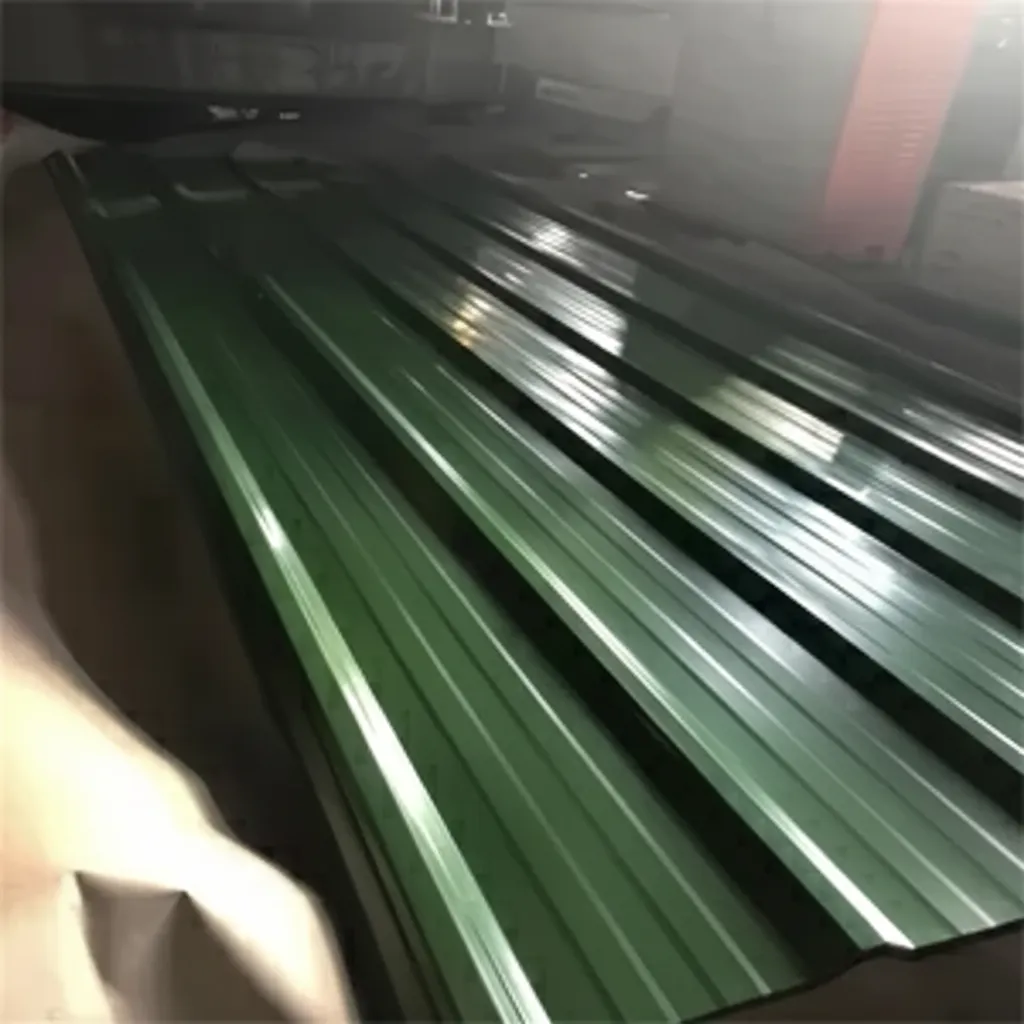

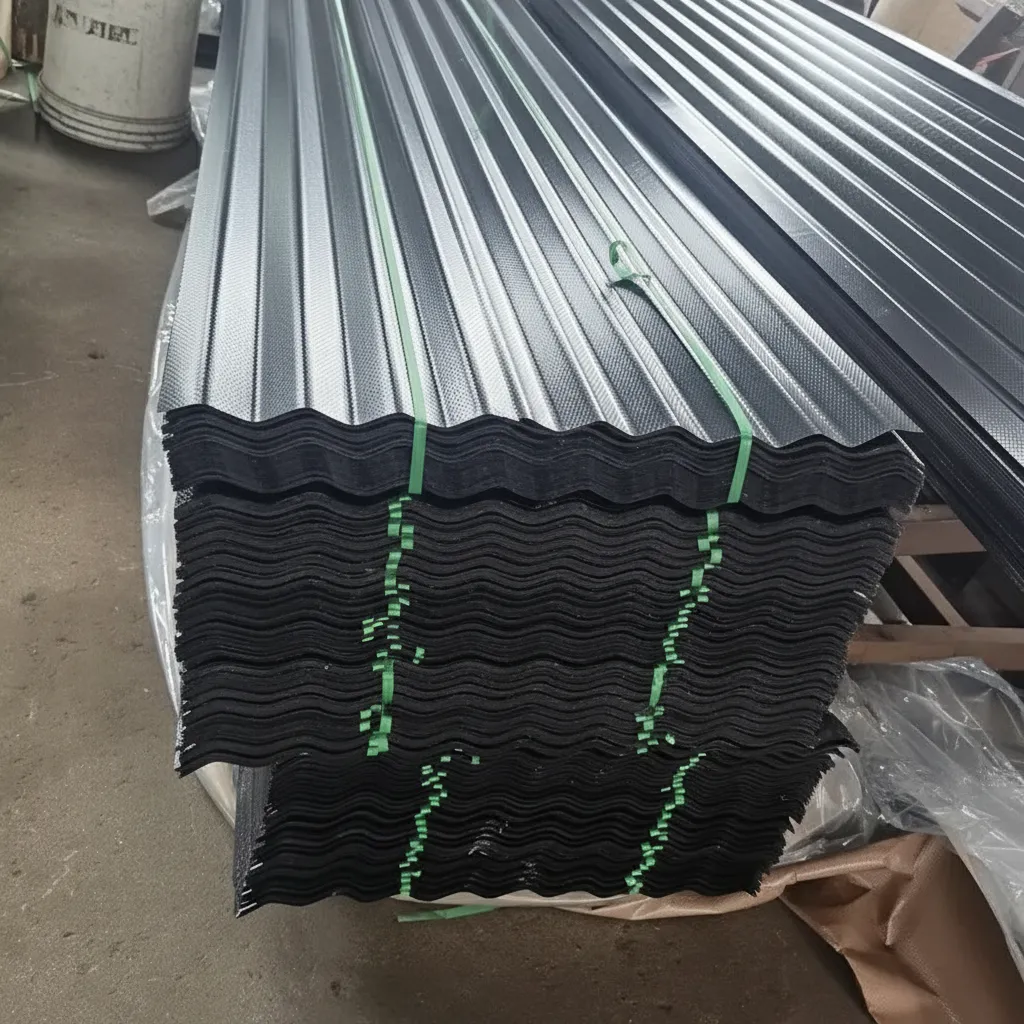

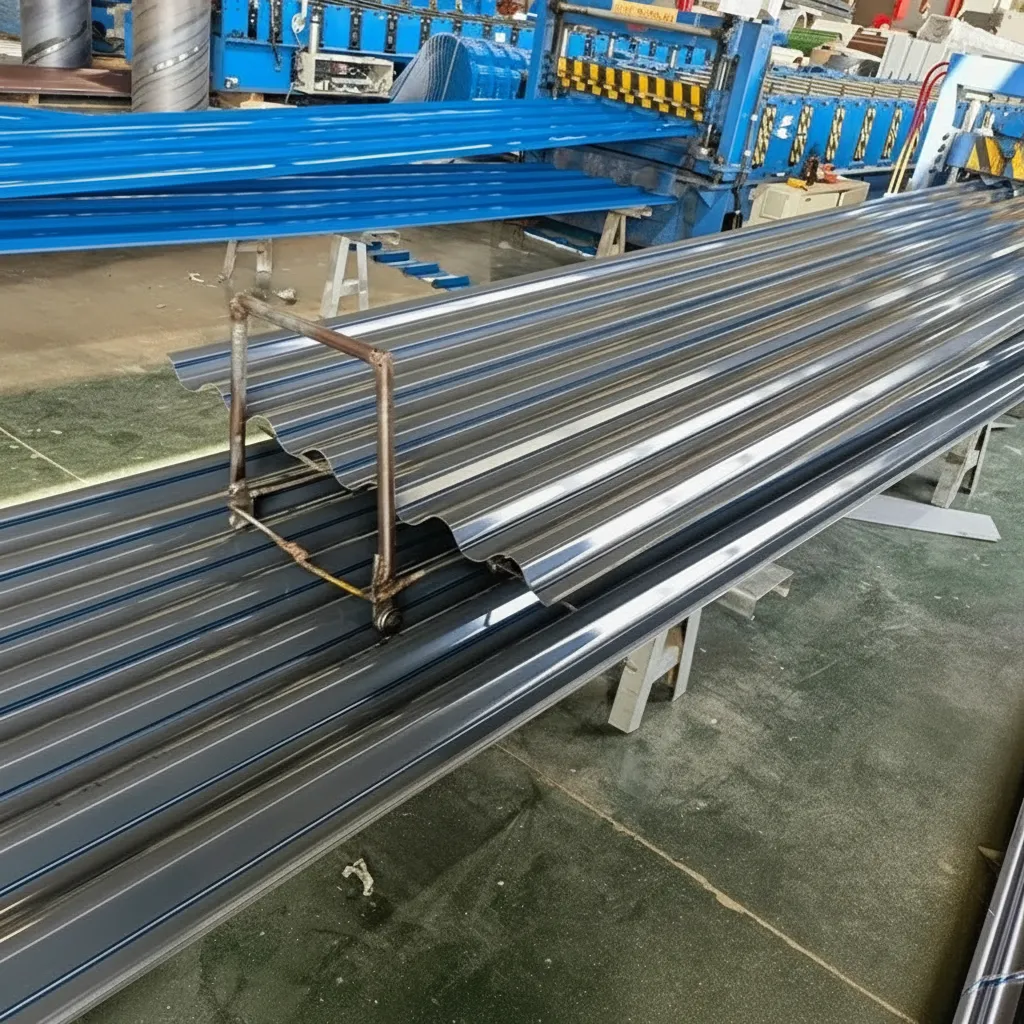

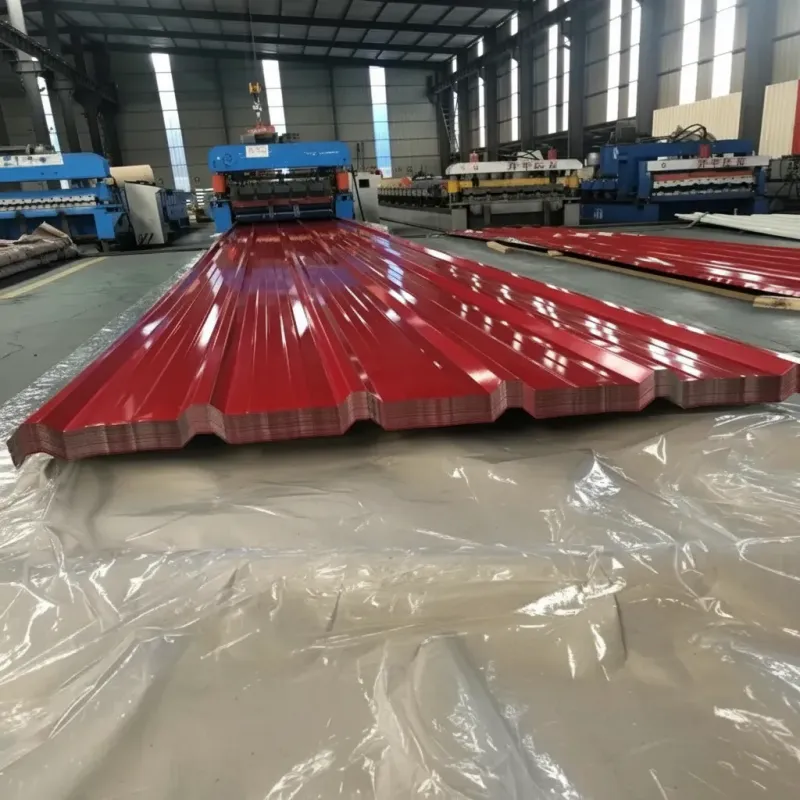

| Product Name | Commercial Building Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet for commercial construction applications |
| Material Grade | DX51D+Z / DX53D+AZ / SGCC / Q235 | Equivalent to ASTM A653 CS Type B, EN 10346 DX51D+Z, JIS G3302 SGCC |
| Standard Compliance | ASTM A755 / EN 10169 / GB/T 12754 | Meets international pre-painted steel coil and sheet standards for building use |
| Chemical Composition (C) | ≤ 0.12% | Low carbon content ensures good formability and weldability |
| Chemical Composition (Mn) | ≤ 0.60% | Manganese content for structural integrity |
| Chemical Composition (P) | ≤ 0.045% | Controlled phosphorus for improved ductility |
| Chemical Composition (S) | ≤ 0.045% | Low sulfur to enhance corrosion resistance |
| Tensile Strength | 270–500 MPa | Per ASTM A653 / EN 10346; varies by grade and coating type |
| Yield Strength | 140–420 MPa | Minimum yield strength per EN 10346 DX51D+Z / ASTM A653 CS |
| Elongation | ≥ 22% | Minimum elongation at fracture (A80mm), ensuring formability for roofing and cladding |
| Thickness Range | 0.3 mm – 1.5 mm | Standard commercial building sheet thickness; custom thickness available on request |
| Width Range | 600 mm – 1250 mm | Coil or cut-to-length sheet; standard widths for roofing panels and wall cladding |
| Coating Type & Weight | Zinc: Z60–Z275 g/m²; Galvalume: AZ50–AZ150 g/m² | Hot-dip galvanized or galvalume base; top coat polyester (PE), PVDF, or SMP paint |

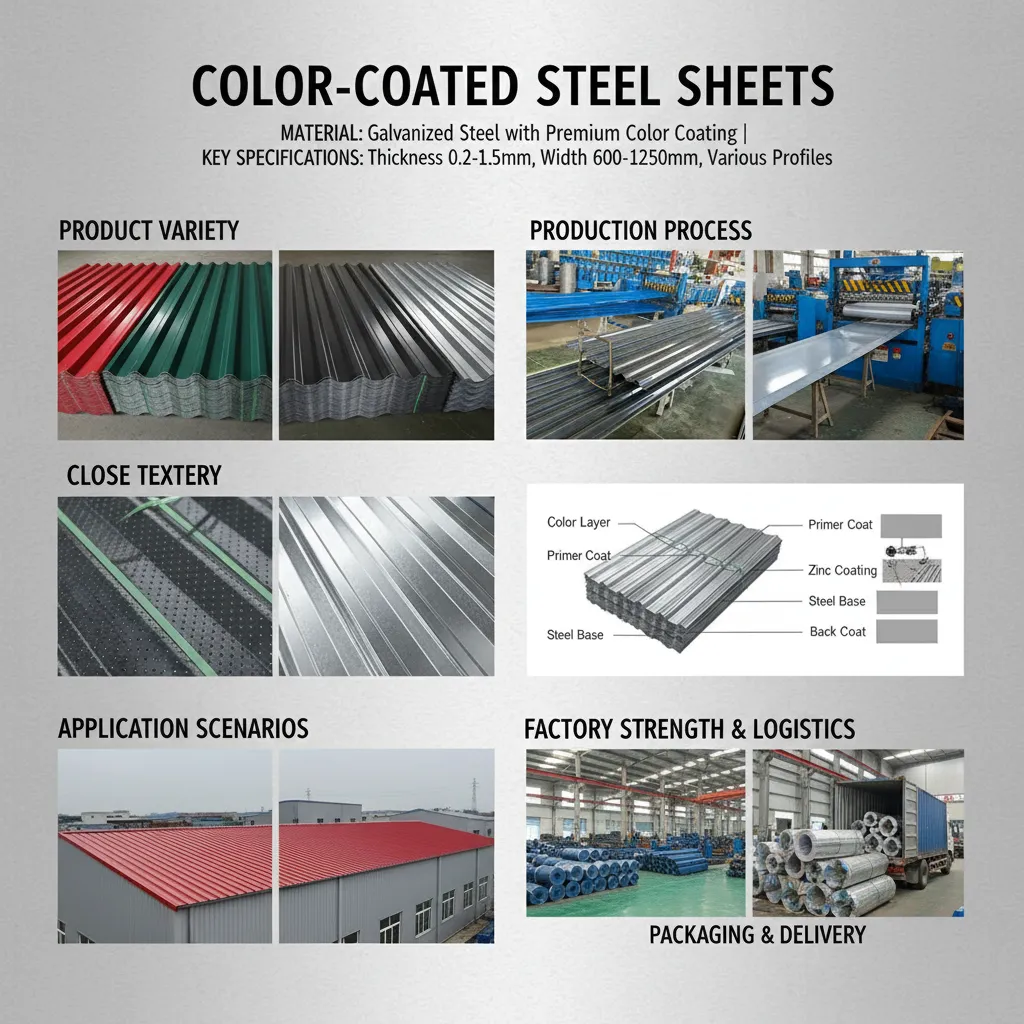

| Paint Thickness | Top coat: 15–25 μm; Primer: 5–7 μm; Back coat: 7–12 μm | Multi-layer coating system for UV resistance, weatherability, and color retention |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | RAL color customization available; 60°gloss range 10–80 GU per EN ISO 2813 |
| Application | Roofing, wall cladding, curtain walls, canopies, commercial facades | Widely used in shopping malls, warehouses, office buildings, and industrial parks |
| Certification | ISO 9001 / CE Marking / SGS / BV | Third-party inspection and quality management system certification available |

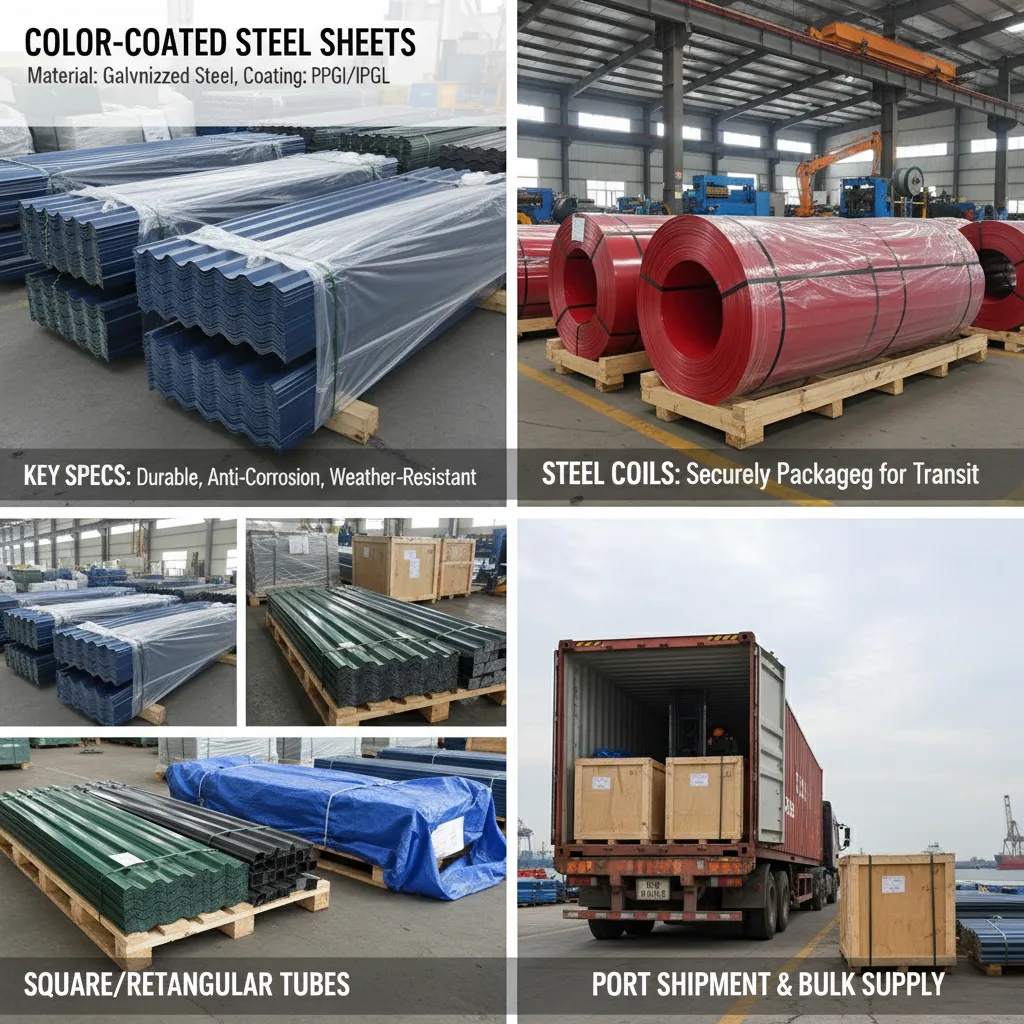

| Packaging | Coil or flat sheet; waterproof paper + steel strip bundling | Export seaworthy packaging; coil ID 508/610 mm, OD ≤ 1500 mm, weight ≤ 10 MT |
| MOQ | 25 MT per order | Mixed colors and specifications accepted; sample order available for quality verification |
Initial coil width variance — issue flagged and corrected
Our first order of 35 MT of 0.45 mm color steel coil specified 1,250 mm width for wall cladding fabrication. Upon arrival, we measured three coils running approximately 8 mm narrower than spec, which would have caused alignment issues during roll forming. We raised the discrepancy with the supplier immediately. To their credit, they acknowledged the variance within 24 hours, issued a credit for the affected coils, and arranged replacement material that arrived within 10 days at correct dimensions. Quality control on the replacement batch was verified and correct. Confidence restored — we have since placed a second order.
