| Property | Parameter | Description |
|---|---|---|

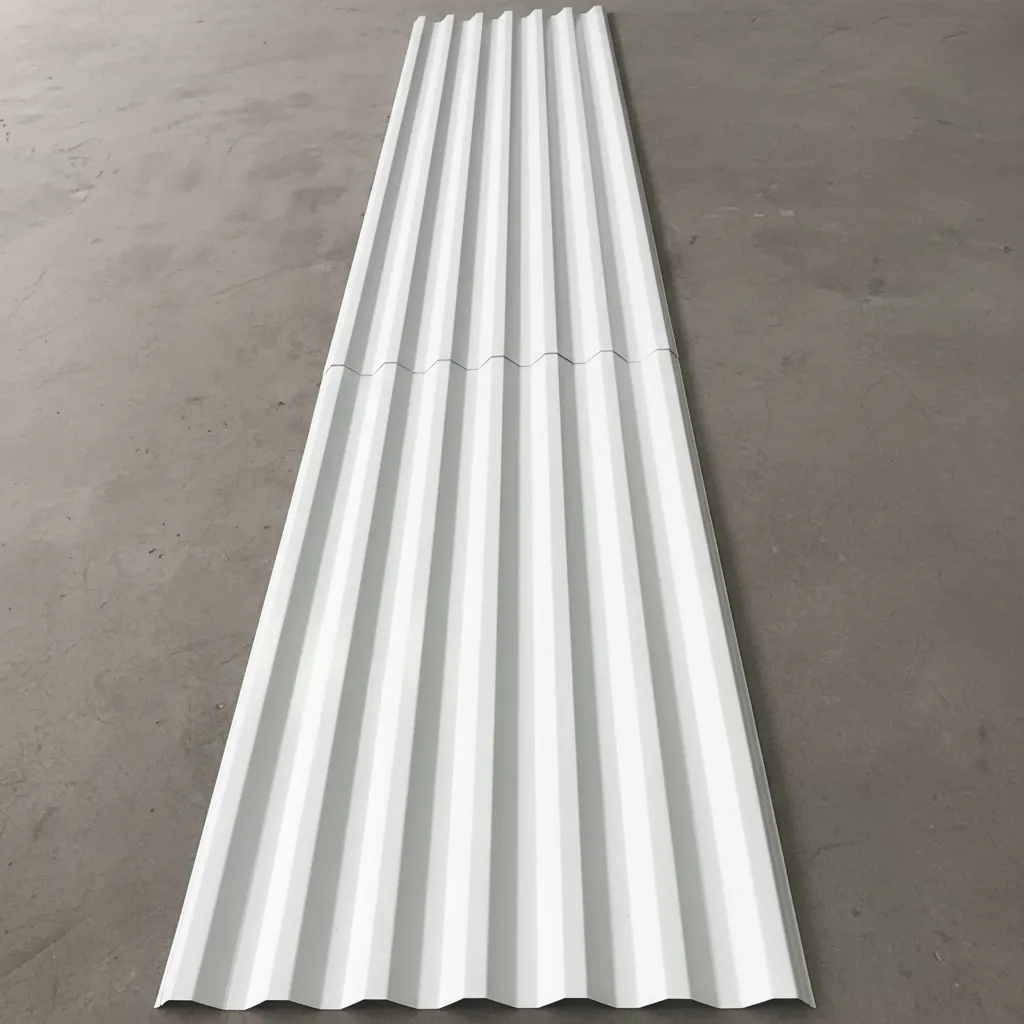

| Product Name | PVDF Coated Color Coated Steel Sheet | Polyvinylidene fluoride coated prepainted galvanized/galvalume steel sheet |
| Material Grade | DX51D, DX52D, S280GD, S350GD (EN); SGCC, SGCD (JIS); Q235, Q345 (GB) | International equivalents: ASTM A755M Grade 33/37/40/50/80 |
| Standard Compliance | ASTM A755M, EN 10169, JIS G3312, GB/T 12754 | Meets international prepainted steel coil and sheet standards |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate; composition varies by grade |
| Coating Type | PVDF (Polyvinylidene Fluoride) / Kynar 500® | 70% PVDF resin topcoat; superior UV resistance, color retention, and weatherability |
| Coating Thickness | Topcoat: 25–35 µm; Primer: 5–7 µm; Back coat: 7–15 µm | Total dry film thickness per EN 10169 / ASTM A755M requirements |
| Tensile Strength | 270–560 MPa (varies by grade) | Per ASTM A755M / EN 10169; DX51D min. 270 MPa, S350GD min. 420 MPa |
| Yield Strength | 140–420 MPa | DX51D: ≥140 MPa; S350GD: ≥350 MPa per EN 10346 |
| Elongation | ≥16% – ≥26% (gauge-dependent) | A80 elongation per EN 10169; varies by substrate grade and thickness |
| Substrate / Zinc Coating | Galvanized (Z100–Z275 g/m²) or Galvalume (AZ100–AZ150 g/m²) | Hot-dip zinc or zinc-aluminum alloy coating per EN 10346 / ASTM A653 |
| Thickness Range | 0.30 mm – 1.50 mm | Base metal thickness excluding coating; custom thickness available |
| Width Range | 600 mm – 1,500 mm | Slit coil or sheet width; standard widths 914 mm, 1,000 mm, 1,219 mm, 1,250 mm |
| Surface Finish | Smooth / Embossed; Gloss level: 10–85 GU (60°) | RAL / custom color matching; pencil hardness ≥ 2H; T-bend ≤ 2T |
| Application | Roofing, wall cladding, curtain walls, architectural facades, industrial buildings | Ideal for high-end exterior applications requiring 20–30 year color durability |
| Certification | ISO 9001, CE Marking, SGS, BV; Kynar 500® licensed | REACH compliant; RoHS compliant; available with mill test certificate (MTC) |
| Packaging | Coil: eye-to-sky or eye-to-wall on steel mandrel; Sheet: wooden pallet with moisture-proof wrapping | Coil weight: 3–10 MT; inner diameter 508 mm or 610 mm; export seaworthy packaging |
| MOQ | 25 MT per order (coil); 5 MT (sheet) | Mixed colors/specifications accepted above MOQ; sample available upon request |
Initial color deviation on first shipment — resolved on second delivery
Our first order of 20 tons of 0.40 mm PVDF coated sheet in a custom RAL 6018 showed a slight color deviation versus the approved sample — Delta E measured around 1.8, which exceeded our 1.0 tolerance for this architectural project. We raised the issue immediately. The supplier's technical team responded within 24 hours, investigated the batch records, and re-produced the order to correct specification within 18 days at no additional cost. The replacement coils passed our in-house color check. Issue was resolved professionally; we will trial a second product line next quarter.
