| Property | Parameter | Description |
|---|---|---|

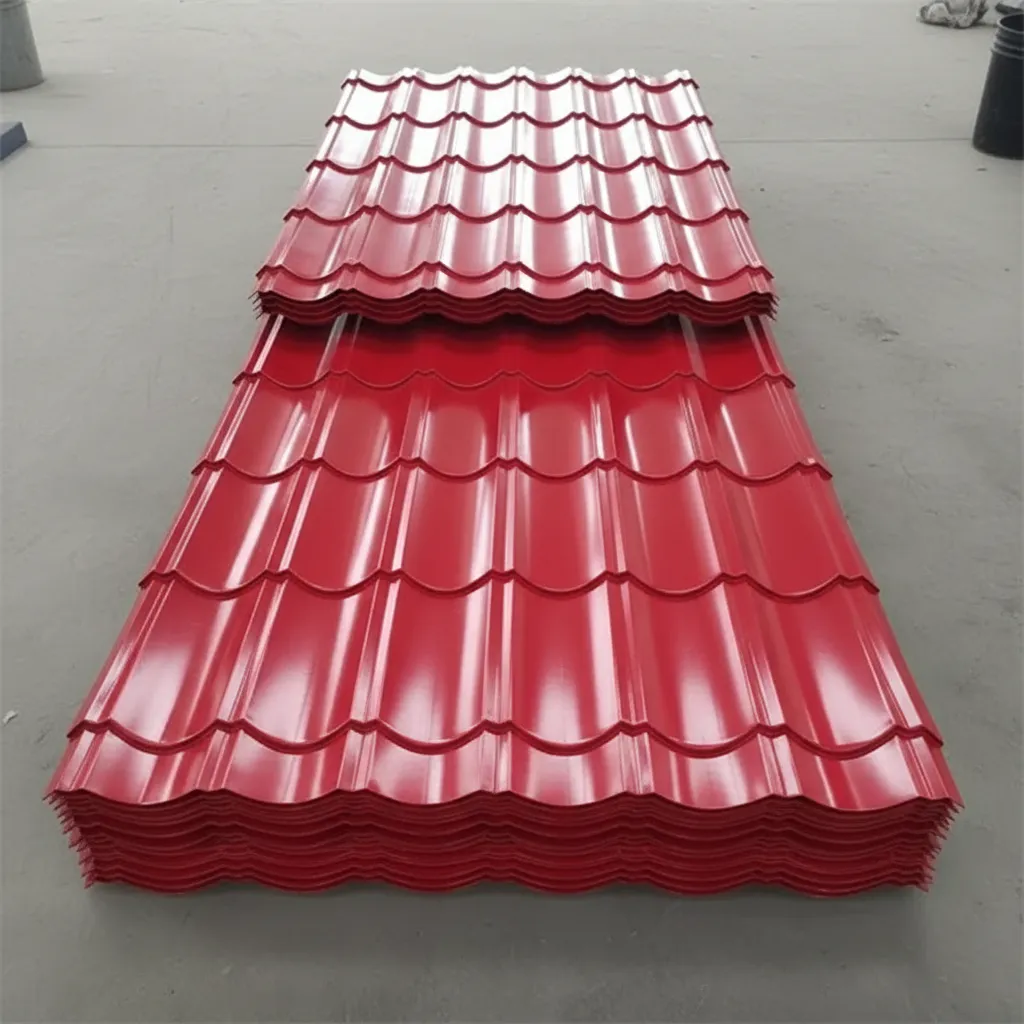

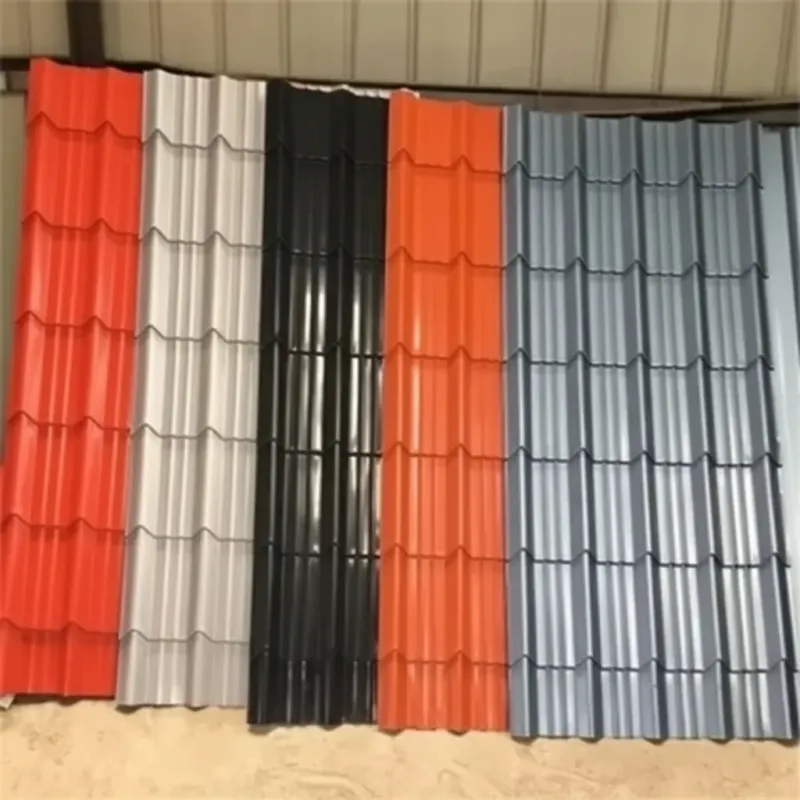

| Product Name | Precut Color Coated Steel Sheet | Pre-painted galvanized/galvalume steel sheet cut to specified dimensions |
| Material Grade | TDC51D+Z / TDC52D+Z / TDC51D+AZ | Equivalent to SGCC, SGCD (JIS G3312); DX51D+Z, DX52D+Z (EN 10346) |
| Standard Compliance | GB/T 12754, EN 10169, ASTM A755/A755M, JIS G3312 | Meets international standards for prepainted flat-rolled steel products |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate ensuring good formability and paint adhesion |
| Coating Type | Galvanized (Z) / Galvalume (AZ) / Electro-galvanized | Zinc coating: Z60–Z275 g/m²; AZ coating: AZ50–AZ150 g/m² |
| Paint System | Polyester (PE), PVDF, SMP, HDP, Epoxy | Top coat 15–25 μm; primer 5–7 μm; back coat 5–15 μm |
| Tensile Strength | 270–500 MPa | Per GB/T 12754 and EN 10346; varies by grade and substrate thickness |
| Yield Strength | 140–420 MPa | TDC51D+Z: ≥140 MPa; TDC52D+Z: ≥180 MPa (EN 10346) |
| Elongation | ≥ 22% (A80mm) | Ensures good bending and forming performance after precut processing |
| Thickness Range | 0.14 mm – 1.50 mm (base metal) | Total thickness including coating; common: 0.30 mm, 0.40 mm, 0.50 mm |
| Width Range | 600 mm – 1,500 mm | Standard widths: 750 mm, 900 mm, 1,000 mm, 1,200 mm, 1,250 mm |
| Cut Length | 500 mm – 6,000 mm (customizable) | Precut to customer-specified length with tolerance ±2 mm |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | Gloss level: 10–90 GU (60° angle); RAL/custom color available |

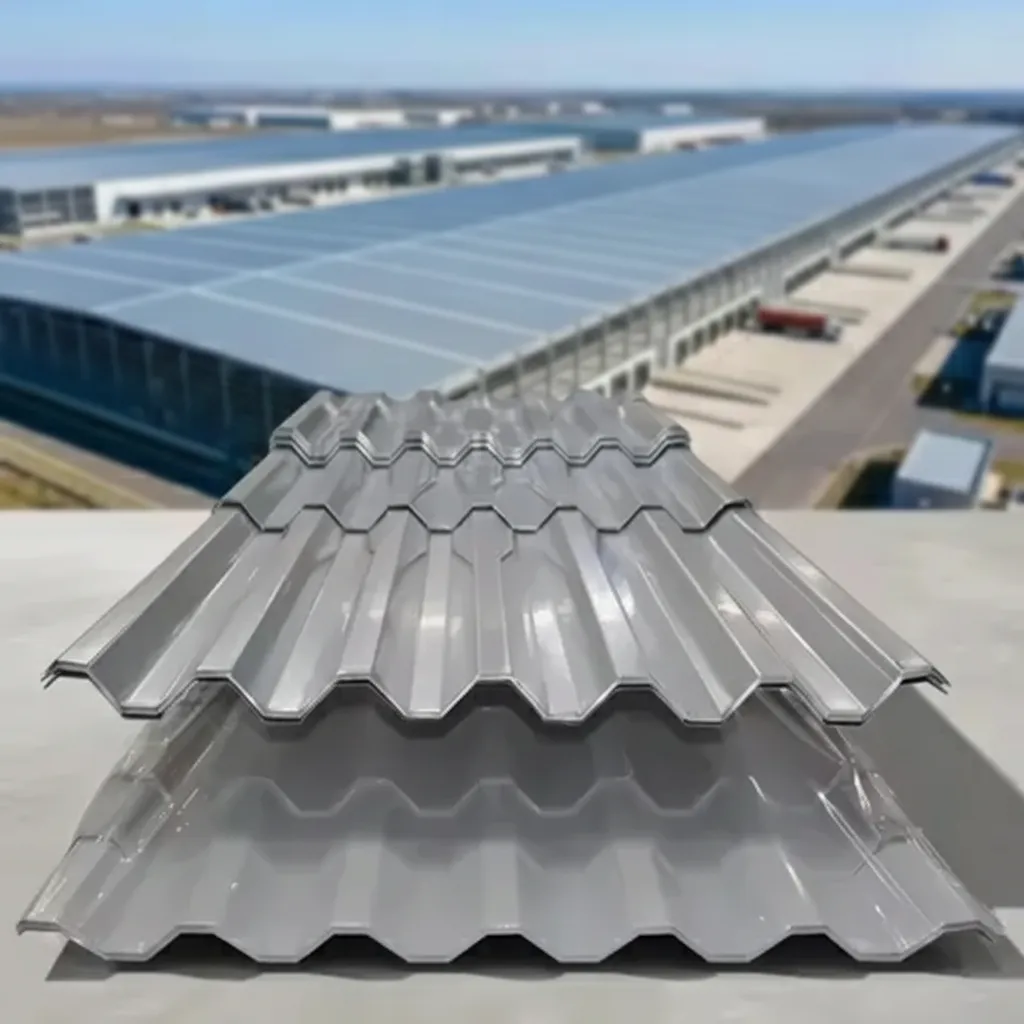

| Application | Roofing, wall cladding, home appliances, garage doors, HVAC panels, signage | Widely used in construction, automotive, and household appliance industries |
| Certification | ISO 9001, CE, SGS, BV, RoHS | Third-party inspection and mill test certificate (MTC) available upon request |
| Packaging | Stacked sheets on wooden pallets, wrapped with waterproof paper and steel strapping | Export seaworthy packaging; pallet weight ≤ 3 MT; edge protectors applied |
| MOQ | 5 Metric Tons per color/specification | Mixed specifications accepted; sample order available for quality verification |
Initial color variance issue — resolved promptly, quality now on track
Our first shipment of 60 tonnes of 0.50 mm HDP-coated sheets in RAL 5015 showed a measurable color shift on roughly 8% of sheets — ΔE around 1.4, outside the ≤1.0 tolerance in our spec. We raised this immediately and the supplier's QC team acknowledged the issue within 24 hours, provided root-cause analysis, and replaced the non-conforming sheets at no charge within 12 days. The replacement batch was fully within spec. We've since placed a second order and the color consistency has been correct throughout. Good recovery — we're cautiously confident going forward.
