| Property | Parameter | Description |
|---|---|---|
| Product Name | PPGI Color Steel Sheet | Pre-Painted Galvanized Iron / Color Coated Steel Sheet |
| Material Grade | DX51D, SGCC, S250GD, S280GD | Equivalent to ASTM A653 CS Type B, JIS G3302 SGCC, EN 10346 DX51D+Z |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | International standards for pre-painted metallic coated steel flat products |
| Chemical Composition (C) | ≤ 0.12% | Low carbon content ensures good formability and paintability |
| Chemical Composition (Mn) | ≤ 0.60% | Manganese for structural integrity |
| Chemical Composition (P / S) | P ≤ 0.10%, S ≤ 0.045% | Controlled phosphorus and sulfur for improved corrosion resistance |
| Tensile Strength | 270–500 MPa | Per EN 10346 / ASTM A653; varies by grade (e.g., S280GD: ≥ 360 MPa) |
| Yield Strength | 220–420 MPa | S250GD: ≥ 250 MPa; S280GD: ≥ 280 MPa per EN 10346 |
| Elongation | ≥ 18–22% | Minimum elongation at fracture (A80mm), ensuring good bending performance |
| Thickness Range | 0.4 mm, 0.5 mm (0.14–1.2 mm available) | Tolerance: ±0.02 mm per EN 10143 / ASTM A924 |
| Width Range | 600–1,250 mm | Standard coil width; custom slit widths available upon request |
| Zinc Coating Weight | Z60–Z275 (60–275 g/m²) | Hot-dip galvanized base; coating per EN 10346 / ASTM A653 |
| Paint Coating | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 7–15 µm | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP options available |
| Surface Finish | Smooth, Embossed, Matte, Wrinkled | RAL color system available; custom colors upon request |
| Application | Roofing, wall cladding, home appliances, garage doors, sandwich panels | Widely used in construction, automotive, and household appliance industries |
| Certification | ISO 9001, SGS, BV, CE | Third-party inspection and mill test certificate (MTC) available |

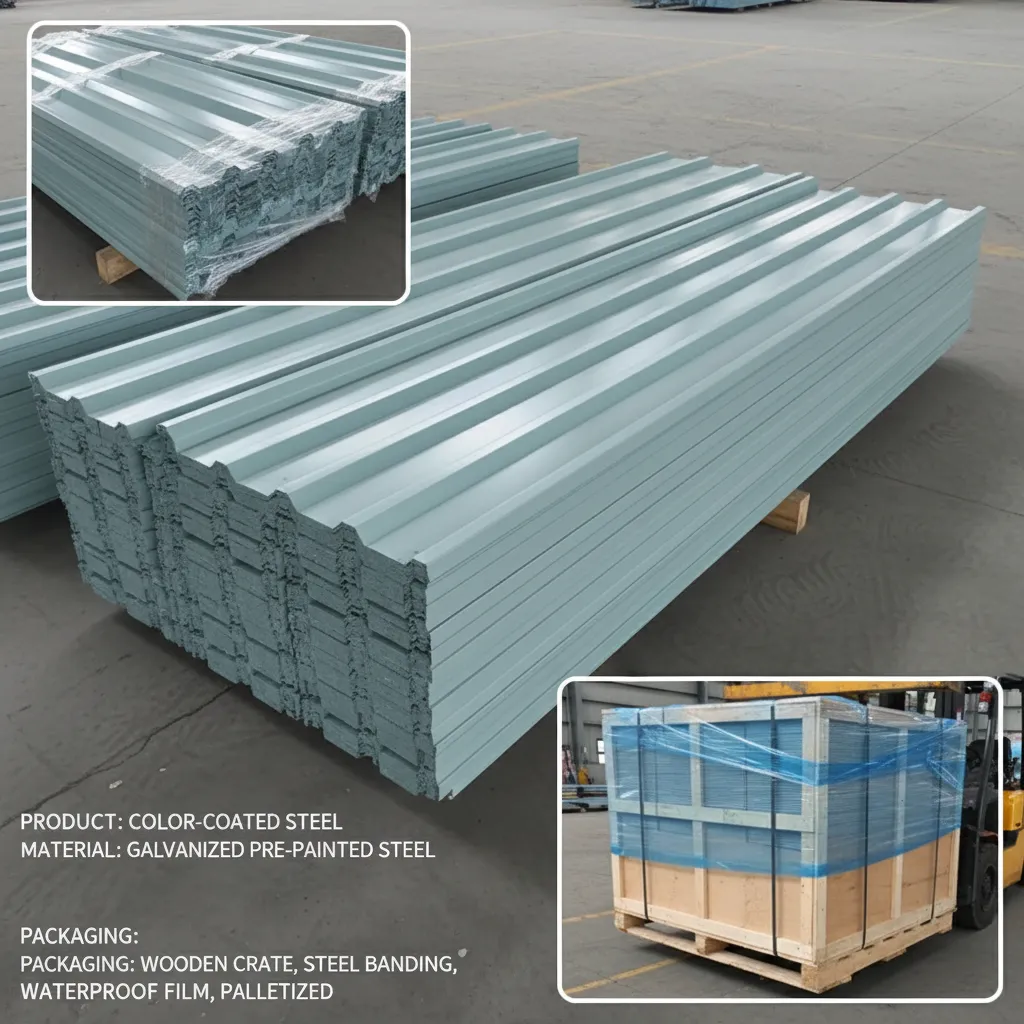

| Packaging | Coil or sheet; waterproof paper + steel strip bundling | Export seaworthy packaging; inner eye-to-sky or eye-to-wall coil packing |
| MOQ | 5 MT per color/specification | Mixed container orders accepted; standard 20' / 40' FCL shipment |
Initial color variance issue — resolved professionally after escalation
Ordered 20 MT of 0.4mm polyester PPGI in RAL 3009 for prefab wall panels. On arrival, two coils showed visible ΔE deviation exceeding our 0.5 tolerance, inconsistent with the rest of the batch. Raised the issue with the technical team — they acknowledged the variance, provided a corrected batch within 10 days at no additional freight cost, and issued a credit note. The replacement coils were within spec. GB/T 12754 documentation was complete throughout. Process was frustrating initially but the resolution was handled professionally. Quality control seems to have improved since then based on our subsequent smaller test order.
Ordered 20 MT of 0.4mm polyester PPGI in RAL 3009 for prefab wall panels. On arrival, two coils showed visible ΔE deviation exceeding our 0.5 tolerance, inconsistent with the rest of the batch. Raised the issue with the technical team — they acknowledged the variance, provided a corrected batch within 10 days at no additional freight cost, and issued a credit note. The replacement coils were within spec. GB/T 12754 documentation was complete throughout. Process was frustrating initially but the resolution was handled professionally. Quality control seems to have improved since then based on our subsequent smaller test order.
