| Property | Parameter | Description |
|---|---|---|

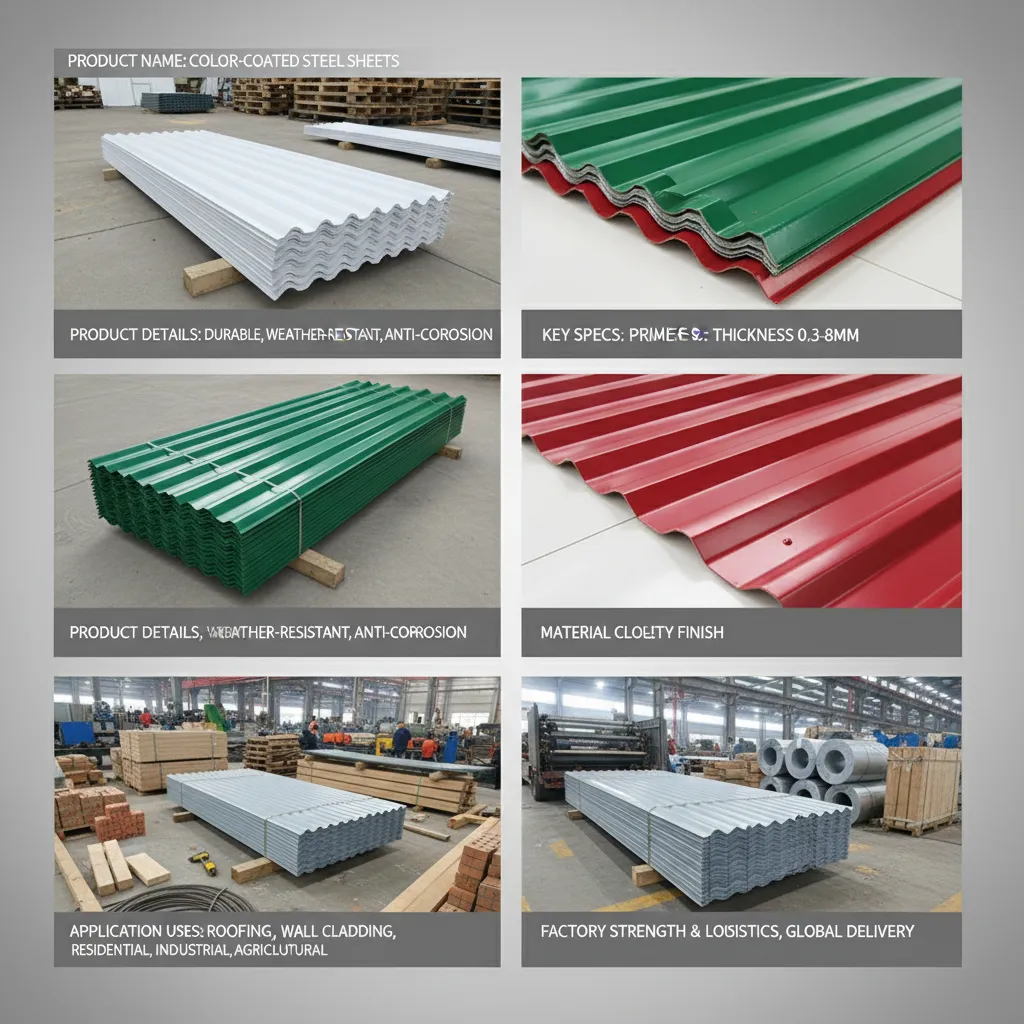

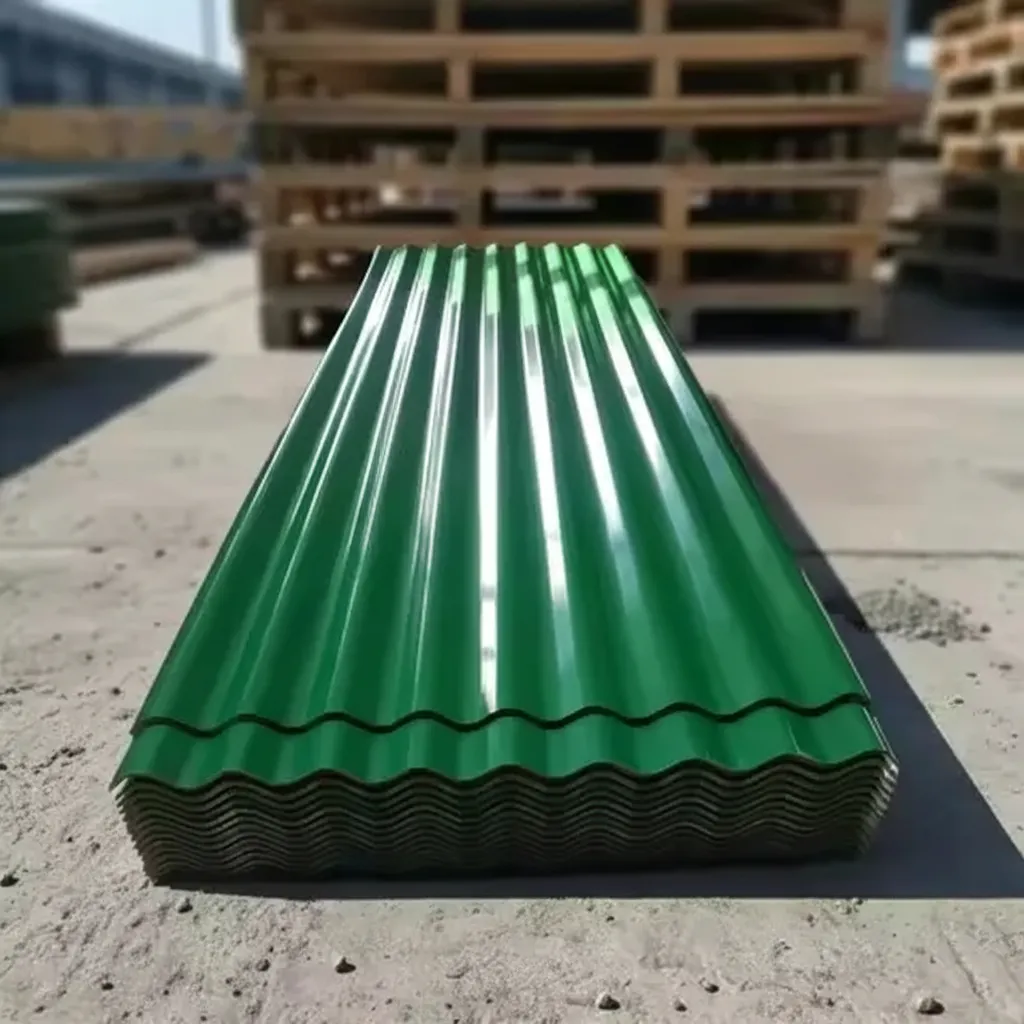

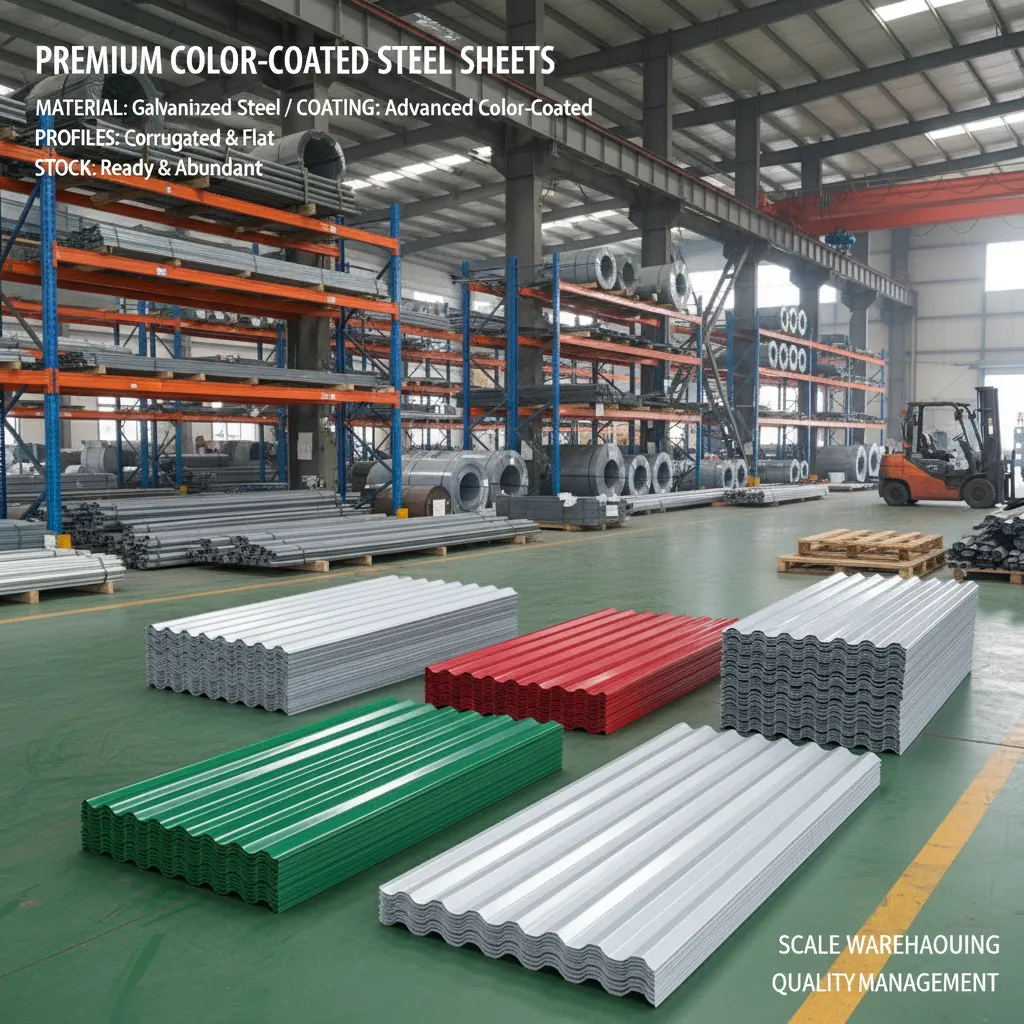

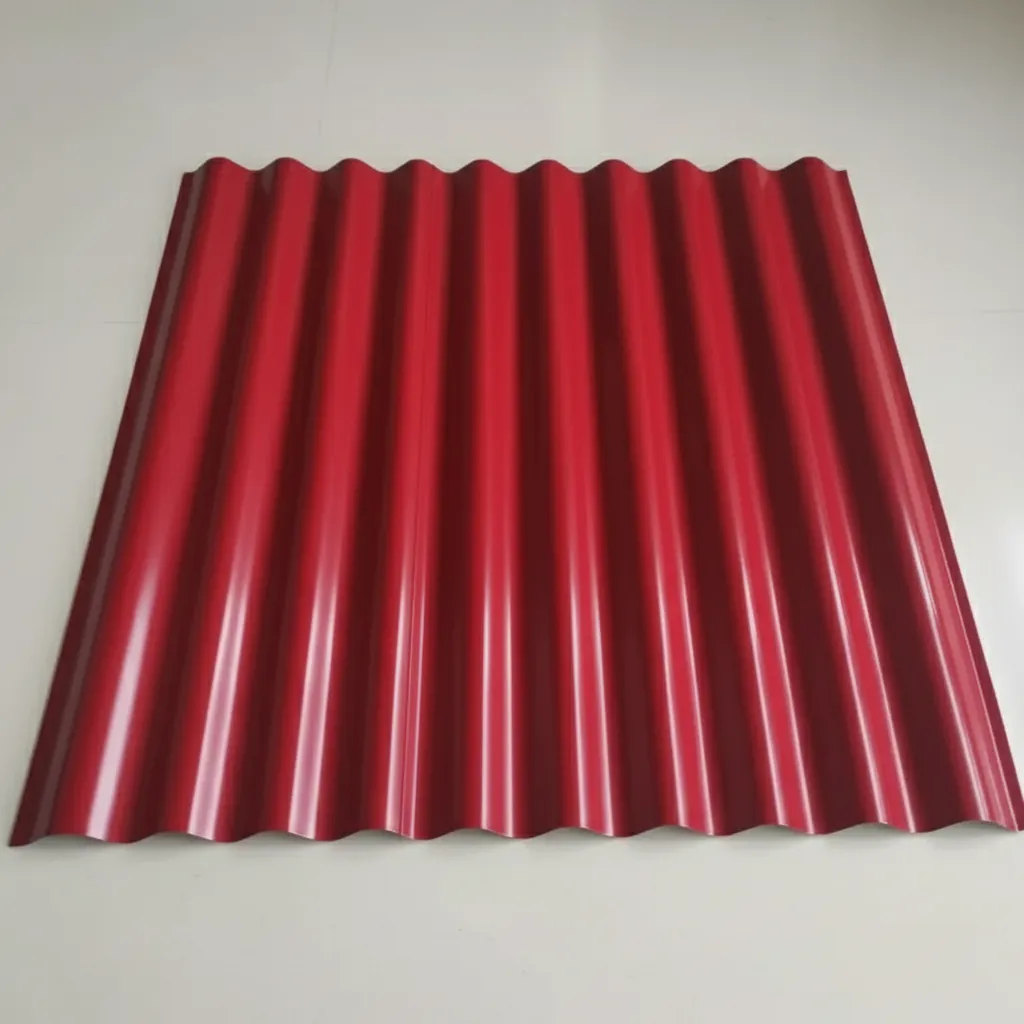

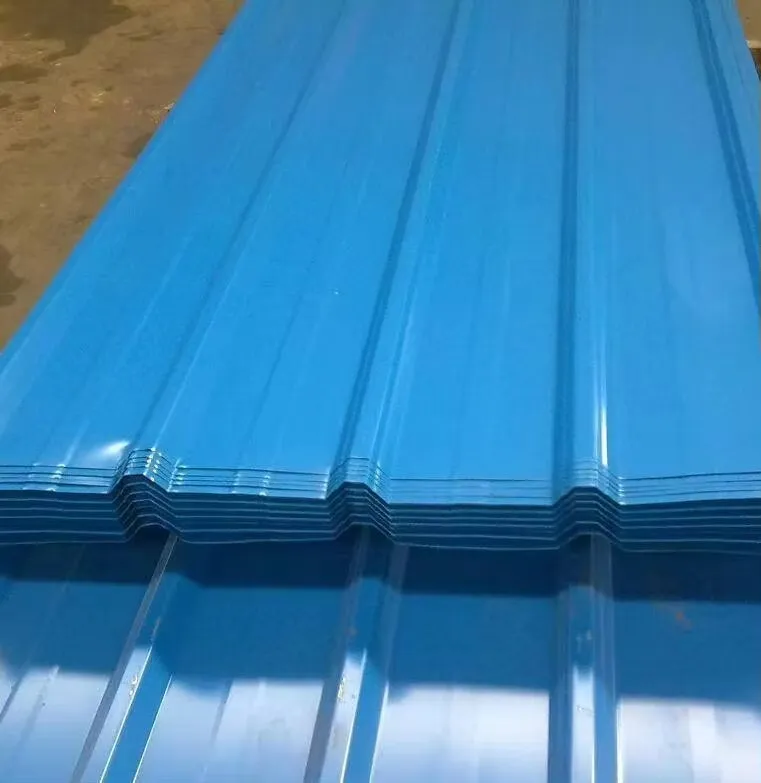

| Product Name | Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet for construction and industrial use |
| Material Grade | SGCC, DX51D, S280GD, S350GD | Equivalent to JIS G3302, EN 10346, ASTM A653; base metal hot-dip zinc or zinc-aluminum coated |
| Standard Compliance | GB/T 12754, EN 10169, ASTM A755/A755M, JIS G3312 | Meets international pre-painted steel coil and sheet standards |
| Chemical Composition (Base) | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Typical composition for DX51D/SGCC substrate; ensures good formability and coating adhesion |
| Coating Type | Polyester (PE), PVDF, SMP, HDP, Epoxy | Top coat options; PVDF offers superior UV and weather resistance for outdoor applications |
| Coating Thickness | Top coat: 15–25 μm; Primer: 5–7 μm; Back coat: 5–15 μm | Total dry film thickness per EN 10169 / GB/T 12754 requirements |
| Zinc Coating Weight | Z60–Z275 g/m² (galvanized); AZ50–AZ150 g/m² (galvalume) | Higher coating weight provides enhanced corrosion protection |
| Tensile Strength | 270–560 MPa | Varies by grade; S280GD ≥280 MPa, S350GD ≥350 MPa per EN 10346 |
| Yield Strength | 220–420 MPa | DX51D ≥140 MPa; S350GD ≥350 MPa; suitable for structural and roofing applications |
| Elongation | ≥16%–22% | Measured on A80 gauge length; ensures good bending and roll-forming performance |
| Thickness Range | 0.14 mm – 1.50 mm | Common wholesale thickness: 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm |
| Width Range | 600 mm – 1,250 mm | Standard widths: 750 mm, 900 mm, 1,000 mm, 1,200 mm; custom slit widths available |
| Sheet Length | 1,000 mm – 6,000 mm (or coil supply) | Cut-to-length sheets or full coils; coil weight typically 3–8 MT |
| Surface Finish | Smooth, Embossed, Matte, High-gloss | RAL color system available; gloss level 10–85 GU (60° angle) per ISO 2813 |

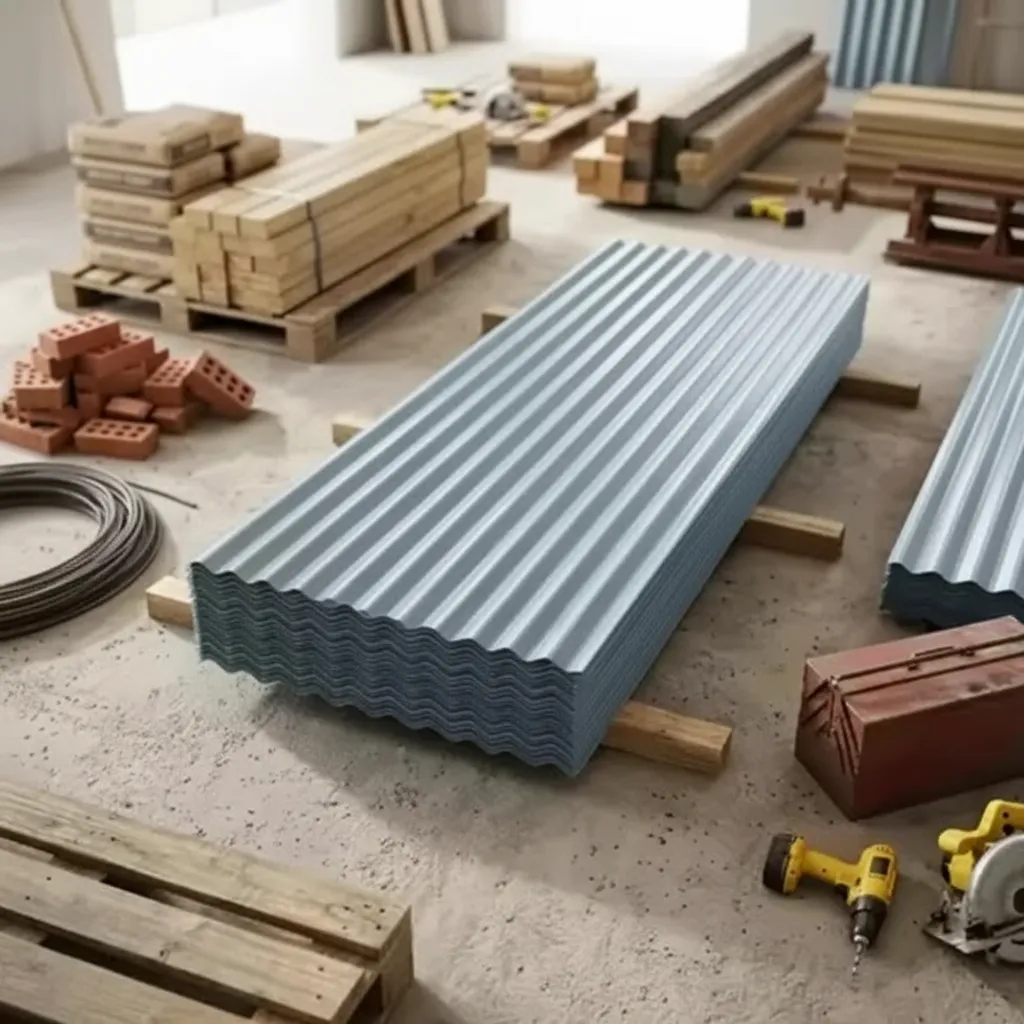

| Application | Roofing, wall cladding, sandwich panels, home appliances, warehouses, prefab buildings | Widely used in construction, agriculture, and light industrial sectors |
| Certification | ISO 9001, CE, SGS, BV | Third-party inspection and mill test certificates (MTC) available upon request |

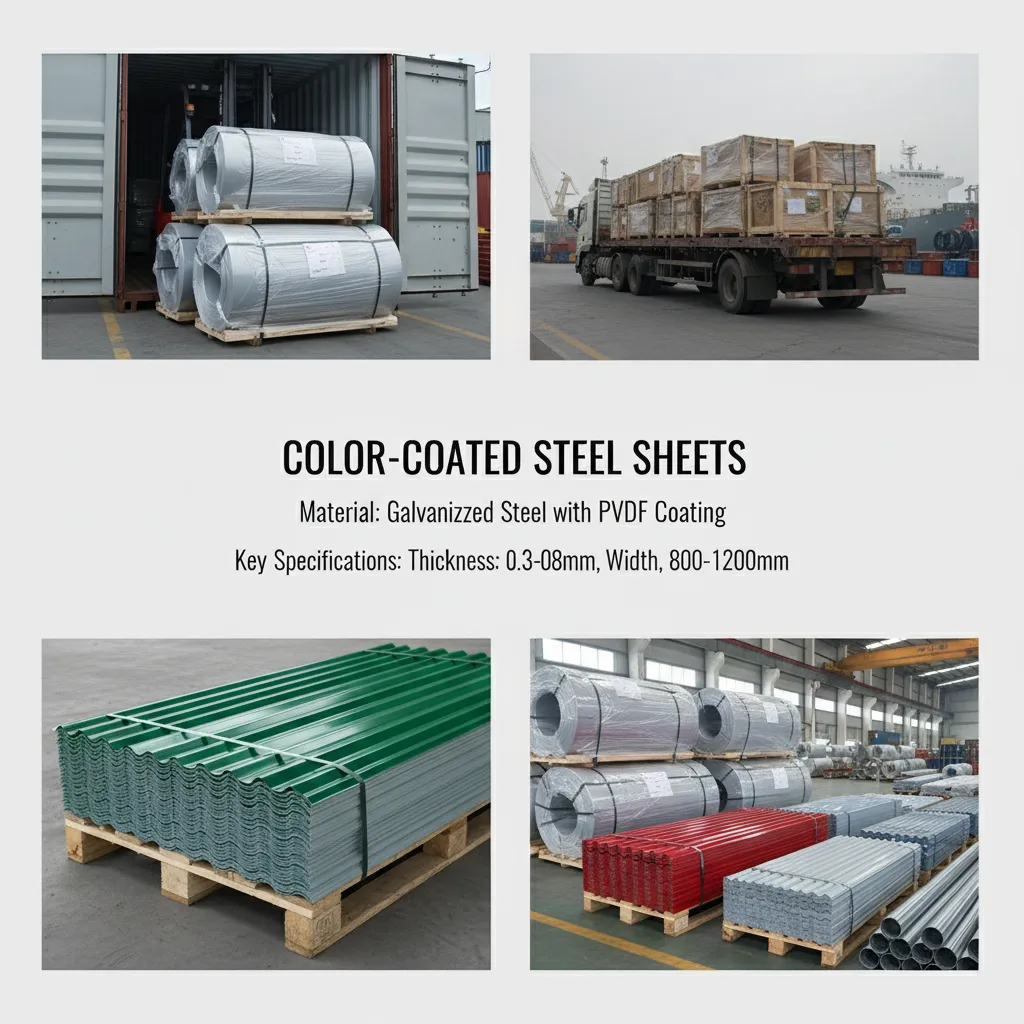

| Packaging | Coils: eye-to-sky or eye-to-wall with waterproof paper and steel strip; Sheets: bundled with wooden pallet | Export seaworthy packaging; moisture-proof and rust-proof protection |
| MOQ | 25 MT per order (mixed colors/specifications accepted) | Flexible wholesale quantities; FOB, CFR, CIF terms available |
Initial color variance issue — resolved professionally
Our first order of 30 tons of 0.38mm PE-coated sheets in RAL 5015 showed a noticeable gloss variance between two coils — one measured 42 GU, another 58 GU, against a specified 45–50 GU range. We raised this immediately and the supplier's QC team acknowledged the deviation within 24 hours. Replacement coils were produced and shipped within 10 business days at no additional cost, with updated ASTM B117 and gloss test reports included. The resolution was handled professionally. Upgraded our assessment after seeing how they managed the problem — will trial a second order.
